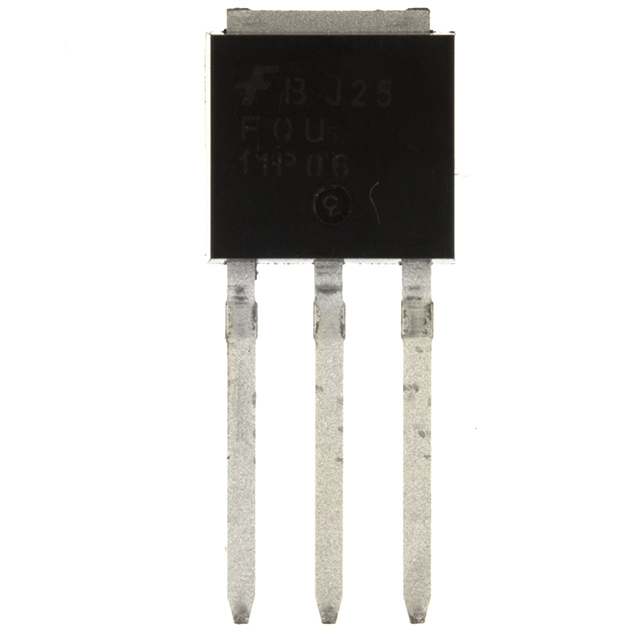

MFG:Fairchild Semiconductor Category:Discrete Semiconductor Products Package Cooled:TO-251 D/C:2004
FQU11P06TU, FQU12N20, FQU12N20L Datasheet download
Category: Discrete Semiconductor Products
MFG: Fairchild Semiconductor
Package Cooled: TO-251
D/C: 2004
Description: MOSFET P-CH 60V 9.4A IPAK
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: FQU10N20
File Size: 806148 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FQU12N20
File Size: 711617 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FQU12N20L
File Size: 621425 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
| Technical/Catalog Information | FQU11P06TU |
| Vendor | Fairchild Semiconductor |
| Category | Discrete Semiconductor Products |
| Mounting Type | Through Hole |
| FET Polarity | P-Channel |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25° C | 9.4A |
| Rds On (Max) @ Id, Vgs | 185 mOhm @ 4.7A, 10V |
| Input Capacitance (Ciss) @ Vds | 550pF @ 25V |
| Power - Max | 2.5W |
| Packaging | Tube |
| Gate Charge (Qg) @ Vgs | 17nC @ 10V |
| Package / Case | IPak, TO-251, DPak, VPak (3 straight leads + tab) |
| FET Feature | Standard |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FQU11P06TU FQU11P06TU |
These N-Channel enhancement mode power field effect transistors are produced using Fairchild's proprietary,planar stripe, DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. These devices are well suited for high efficiency switching DC/DC converters, switch mode power supply, motor control.
|
Symbol |
Parameter |
FQD12N20L / FQU12N20L |
Units | ||
|
VDSS |
Drain-Source Voltage |
200 |
V | ||
|
ID |
Drain Current |
- Continuous (TC =25°C) |
9.0 |
A | |
|
|
- Continuous (TC = 100°C) |
5.7 |
A | ||
|
IDM |
Drain Current Pulsed (Note 1) |
36 |
A | ||
|
VGSS |
Gate-Source Voltage |
± 20 |
V | ||
|
EAS |
Single Pulsed Avalanche Energy (Note 2) |
210 |
mJ | ||
|
IAR |
Avalanche Current (Note 1) |
9.0 |
A | ||
|
EAR |
Repetitive Avalanche Energy (Note 1) |
5.5 |
mJ | ||
|
dv/dt |
Peak Diode Recovery dv/dt (Note 3) |
5.5 |
V/ns | ||
|
PD |
Power Dissipation (TA = 25°C) |
2..5 |
W | ||
|
Power Dissipation (TC = 25°C) |
55 |
W | |||
|
TJ, TSTG |
Operating and |
-55 to +150 |
°C | ||
|
TL |
Maximum lead temperature for soldering purposes, |
300 |
°C | ||
