FQU17N08L, FQU17P06, FQU17P06TU Datasheet download
Category: Discrete Semiconductor Products
MFG: Fairchild Semiconductor
Package Cooled: N/A
D/C: 09+
Description: MOSFET P-CHAN 60V 12A IPAK
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: FQU17N08L
File Size: 568907 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FQU17P06
File Size: 698578 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FQU10N20
File Size: 806148 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
These N-Channel enhancement mode power field effect transistors are produced using Fairchild's proprietary, planar stripe, DMOS technology.
This advanced technology is especially tailored to minimize on-state resistance, provide superior switching performance, and withstand a high energy pulse in the avalanche and commutation modes. These devices are well suited for low voltage applications such as automotive,high efficiency switching for DC/DC converters, and DC motor control.
| Symbol | Parameter | FQD17N08L /FQU17N08L | Units |
| VDSS | Drain-Source Voltage | 80 | V |
| ID | Drain Current - Continuous (TC = 25) - Continuous (TC = 100) |
12.9 | A |
| 8.2 | A | ||
| IDM | Drain Current - Pulsed (Note 1) | 51.6 | A |
| VGSS | Gate-Source Voltage | ±20 | V |
| EAS | Single Pulsed Avalanche Energy (Note 2) | 100 | mJ |
| IAR | Avalanche Current (Note 1) | 12.9 | A |
| EAR | Repetitive Avalanche Energy (Note 1) | 4.0 | mJ |
| dv/dt | Peak Diode Recovery dv/dt (Note 3) | 6.5 | V/ns |
| PD | Power Dissipation (TA = 25) * | 2.5 | W |
| Power Dissipation (TC = 25) - Derate above 25 |
40 | W | |
| 0.32 | W/ | ||
| TJ, TSTG | Operating and Storage Temperature Range | -55 to +150 | |
| TL | Maximum lead temperature for soldering purposes, 1/8"from case for 5 seconds |
300 |
These P-Channel enhancement mode power field effect transistors are produced using Fairchild's proprietary, planar stripe, DMOS technology.
This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand a high energy pulse in the avalanche and commutation modes. These devices are well suited for low voltage applications such as automotive, DC/DC converters, and high efficiency switching for power management in portable and battery operated products.
| Symbol | Parameter | FQD17P06 /FQU17P06 | Units |
| VDSS | Drain-Source Voltage | -60 | V |
| ID | Drain Current - Continuous (TC = 25) - Continuous (TC = 100) |
-12 | A |
| -7.6 | A | ||
| IDM | Drain Current - Pulsed (Note 1) | -48 | A |
| VGSS | Gate-Source Voltage | ±25 | V |
| EAS | Single Pulsed Avalanche Energy (Note 2) | 300 | mJ |
| IAR | Avalanche Current (Note 1) | -12 | A |
| EAR | Repetitive Avalanche Energy (Note 1) | 4.4 | mJ |
| dv/dt | Peak Diode Recovery dv/dt (Note 3) | -7.0 | V/ns |
| PD | Power Dissipation (TA = 25) * | 2.5 | W |
| Power Dissipation (TC = 25) - Derate above 25 |
44 | W | |
| 0.35 | W/ | ||
| TJ, TSTG | Operating and Storage Temperature Range | -55 to +150 | |
| TL | Maximum lead temperature for soldering purposes, 1/8"from case for 5 seconds |
300 |

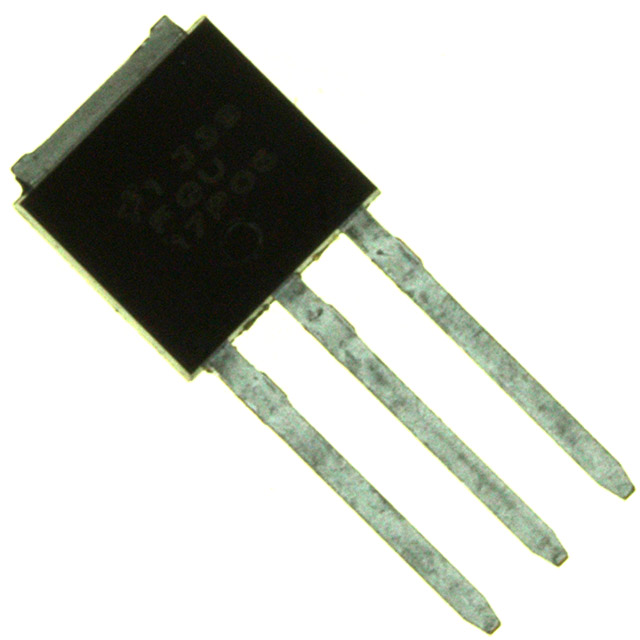

| Technical/Catalog Information | FQU17P06TU |
| Vendor | Fairchild Semiconductor |
| Category | Discrete Semiconductor Products |
| Mounting Type | Through Hole |
| FET Polarity | P-Channel |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25° C | 12A |
| Rds On (Max) @ Id, Vgs | 135 mOhm @ 6A, 10V |
| Input Capacitance (Ciss) @ Vds | 900pF @ 25V |
| Power - Max | 2.5W |
| Packaging | Tube |
| Gate Charge (Qg) @ Vgs | 27nC @ 10V |
| Package / Case | IPak, TO-251, DPak, VPak (3 straight leads + tab) |
| FET Feature | Standard |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FQU17P06TU FQU17P06TU |
