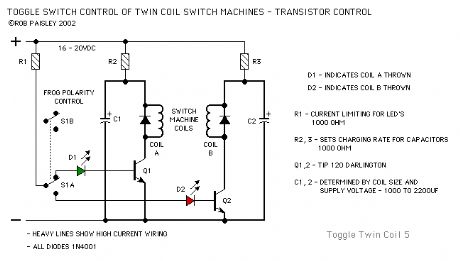

Separate Coils With Transistor Control

Published:2013/6/18 21:08:00 Author:muriel | Keyword: Separate Coils, Transistor Control

Separate Coils With Transistor Control
  (View)

View full Circuit Diagram | Comments | Reading(618)

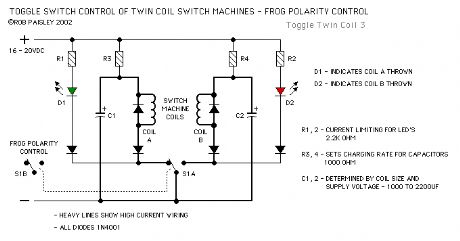

Separate Coils With Frog Polarity Control

Published:2013/6/18 21:08:00 Author:muriel | Keyword: Separate Coils , Frog Polarity Control

Separate Coils With Frog Polarity Control
  (View)

View full Circuit Diagram | Comments | Reading(687)

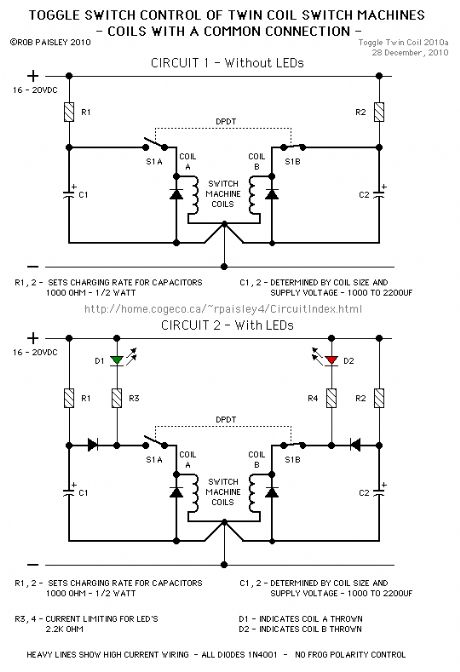

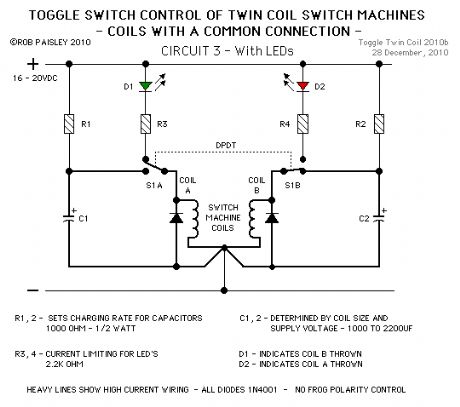

For Switch Machines With A Fixed - Coil Common Connection

Published:2013/6/18 21:07:00 Author:muriel | Keyword: Switch Machines, Coil Common Connection

For Switch Machines With A Fixed - Coil Common Connection
For Switch Machines With A Fixed - Coil Common Connection

The first three circuits are for use with switch machines that have an unbreakable connection between the two coils such as those made by Atlas®. These circuits can also be used with twin coil switch machines that have separate coils. The next circuit is a variation on the circuits above. This circuit makes use of all the poles on the DPDT toggle switch.   (View)

View full Circuit Diagram | Comments | Reading(596)

Stepdown Transformers

Published:2013/6/18 21:04:00 Author:muriel | Keyword: Stepdown Transformers

Stepdown Transformers

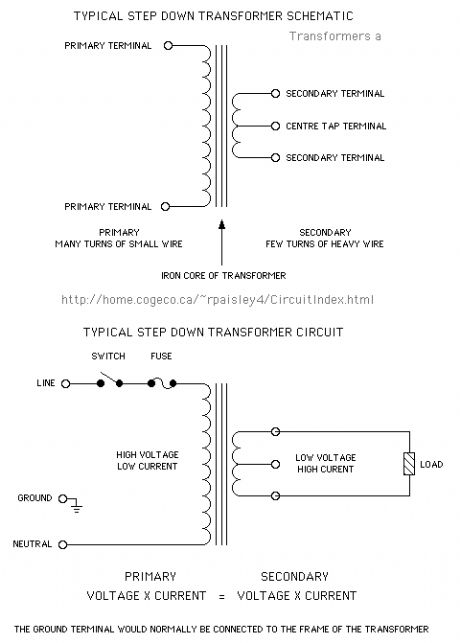

The step down transformer is the interface between the household Alternating Current system and the electronics that run your model railroad. The main purpose of the transformer is to reduce the relatively high voltage of the house to a safer and more practical voltage. There is also a secondary function that often goes un-noticed which is to provide electrical isolation between the household supply and the layout. This, in a properly constructed circuit, prevents the layout from being exposed to a dangerously high voltage if there is a fault on the primary side of the circuit. This isolation also separates the power supplies of each subsystem on the layout from the others. For example; On layouts with multiple DC throttles, each throttle is isolated from the others by its transformer. This allows common rail block wiring without causing a short circuit. The capacities of transformers are often given as a Volt/Ampere rating. This is the secondary voltage multiplied by the secondary current at full load and is roughly equivalent to a wattage rating but makes allowances for the peculiarities of alternating current. These allowances are not relevant to this page however. The secondaries of many transformers designed for low voltage applications are simply rated as secondary volts at full load amps. Note: The secondary voltage of a transformer is often significantly higher when there is no load than at full load. This is largely dependant on the the design of the transformer itself and is usually not a factor in model railroad circuits. However, in many low power and cheaply constructed transformers that are used in consumer electronics this voltage drop can be significant and must be taken into account when good regulation is needed. Transformers are generally, very efficient devices and no allowance is usually required for the small amount of heat that they may generate. It is good practice however to provide space around the transformer for air circulation and ventilation for enclosures. Power supply transformers should always be protected by a fuse on the primary side of the circuit. If a transformer supplies multiple loads, all loads should be be protected by individual fuses.   (View)

View full Circuit Diagram | Comments | Reading(742)

Basic Transistor Switches

Published:2013/6/18 21:03:00 Author:muriel | Keyword: Basic Transistor, Switches

Basic Transistor Switches
MOSFET and Bipolar transistors are often used for high speed switching applications. Below are four very simple examples of this. ON-OFF toggle switches are used in place of an electronic control circuit.   (View)

View full Circuit Diagram | Comments | Reading(1211)

Bipolar Transistors

Published:2013/6/18 21:02:00 Author:muriel | Keyword: Bipolar Transistors

Bipolar Transistors

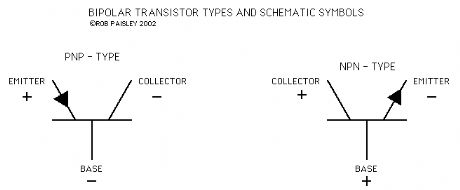

Bipolar transistors used in model railroad electronics come in two baseic types, NPN and PNP, and are used in two basic ways, switching and regulating. These transistors are available in a wide variety of voltage and current ratings.   (View)

View full Circuit Diagram | Comments | Reading(781)

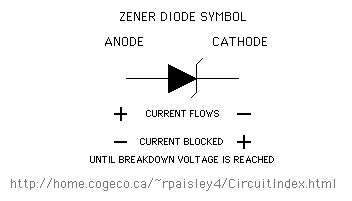

Special Diode Types

Published:2013/6/18 21:02:00 Author:muriel | Keyword: Special Diode Types

Special Diode Types
Three special types of diodes the model railroader is likely to encounter are the Small Signal diode, Schottky diode and Zener diode. A brief description and some uses of each follows. Small Signal Diodes such a the 1N914 and 1N4148 are low voltage and current diodes but are very fast which makes then ideal for use with very high frequency circuits. These diodes are used in timing and pulse generation circuits. Schottky Diodes such as the 1N5817 and 1N5820 are low voltage diodes but can handle currents of 1 amp and 3 amps respectively. Schottky diodes are fast and are used in DCC systems where high frequency operation is required. Schottky diodes also have a lower forward voltage drop than silicon diodes which makes the useful in low voltage circuits. Zener Diodes are normally used for voltage regulation and are available in a large range of breakdown voltage and device power ratings. The use of this type of diode is not as common now but may still be encountered in older circuit designs.   (View)

View full Circuit Diagram | Comments | Reading(1330)

Bridge Rectifiers

Published:2013/6/18 21:01:00 Author:muriel | Keyword: Bridge Rectifiers

Bridge Rectifiers
A common use of diodes is a rectifier bridge. A bridge is four diodes configured so that the output always has the same polarity regardless of the polarity of the input. Rectifier bridges are most often used to convert alternating current into full-wave direct current for power supplies and throttles. Bridges can be made from four separate diodes or the diodes can be in one package. Bridge rectifiers are available in a wide variety of voltage and current ratings.   (View)

View full Circuit Diagram | Comments | Reading(1721)

Diodes and Rectifiers

Published:2013/6/18 21:01:00 Author:muriel | Keyword: Diodes, Rectifiers

Diodes and Rectifiers

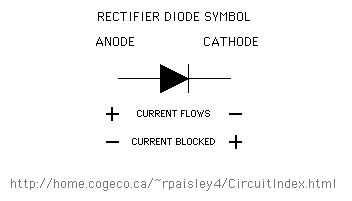

The primary function of diodes in model railroading is to allow the flow of current in one direction only. This is generally referred to as rectification. Diodes have many uses such as to convert an alternating current to a direct current for power supplies and throttles and to route current in matrix circuits for switch machine controls.   (View)

View full Circuit Diagram | Comments | Reading(595)

Really Basic Electricity

Published:2013/6/18 21:00:00 Author:muriel | Keyword: Really Basic Electricity

Really Basic Electricity
This page provides some really basic information on Direct Current electricity. It might be called Theory but will not be very in depth. The diagrams will be basic and the explanations will brief and to the point. For the purposes of the Basic Electronics pages at this site it will be assumed that current flow is from the positive to the negative.Every circuit must contain the following elements; A Source of Electrons and a Load. These elements are able to produce useful work from the circuit and can be combined in an infinite number of ways to form any circuit. SOURCE OF ELECTRONS The source of electrons in the circuit can be any of a wide range of devices. These include batteries, photovoltaic cells and thermocouples. The most usual source of electrons in model railroad circuits is the secondary of a stepdown transformer. LOAD The load in the circuit coverts the flow of electrons into usable work. The work can include the production of light from light emitting diodes or the creation of a magnetic field in a motor or switch machine. To provide a way of determining the work done by a circuit the energy in the circuit can be expressed using the following perameters. VOLTS Is the force that causes the electrons to flow through a circuit. The greater the force, the higher the number of electrons that can be forced through a given circuit. AMPS Is the rate of electron flow in the circuit. The greater the rate of electrons flowing the greater the work that will be done. RESISTANCE Is the opposition to the flow of electrons in the circuit. The greater the resistance, the lower the rate of electron (Amps) flow in a circuit for a given voltage.   (View)

View full Circuit Diagram | Comments | Reading(792)

Battery testing Circuit

Published:2013/6/18 20:58:00 Author:muriel | Keyword: Battery testing Circuit

Battery testing Circuit
  (View)

View full Circuit Diagram | Comments | Reading(1502)

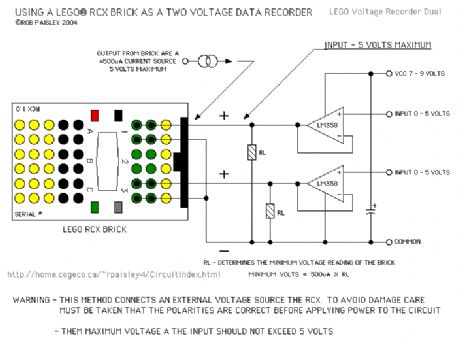

Dual Voltage Recorder Input Circuits

Published:2013/6/18 20:56:00 Author:muriel | Keyword: Dual Voltage , Recorder, Input Circuits

Dual Voltage Recorder Input Circuits
  (View)

View full Circuit Diagram | Comments | Reading(541)

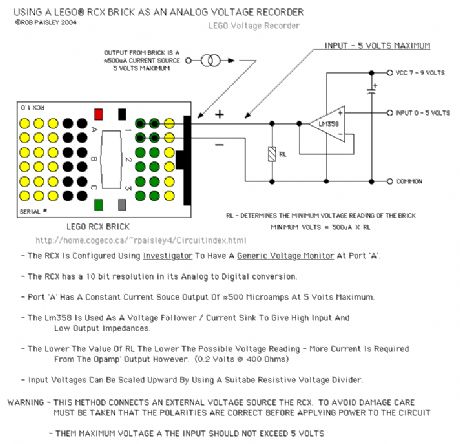

Basic Voltage Recorder Input Circuit

Published:2013/6/18 20:55:00 Author:muriel | Keyword: Basic Voltage , Recorder, Input Circuit

Basic Voltage Recorder Input Circuit
  (View)

View full Circuit Diagram | Comments | Reading(491)

Simple Signal - Peripheral Driver Outputs

Published:2013/6/18 20:54:00 Author:muriel | Keyword: Simple Signal , Peripheral Driver Outputs

Simple Signal - Peripheral Driver Outputs
  (View)

View full Circuit Diagram | Comments | Reading(792)

Simple Signal (7400)

Published:2013/6/18 20:54:00 Author:muriel | Keyword: Simple Signal , 7400

Simple Signal (7400)
  (View)

View full Circuit Diagram | Comments | Reading(915)

4 Lane - Automatic Reset - Race Scorer

Published:2013/6/18 20:52:00 Author:muriel | Keyword: 4 Lane, Automatic Reset, Race Scorer

4 Lane - Automatic Reset - Race Scorer

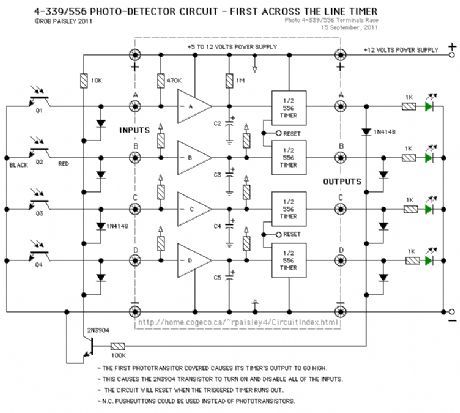

The next circuit will score 4 lanes and has automatic reset. The schematic shows four lanes but two, three of two sets of two lanes could be scored. The variable 500K resistors shown in the first two circuits could be replaced by a fixed 470K resistor.   (View)

View full Circuit Diagram | Comments | Reading(637)

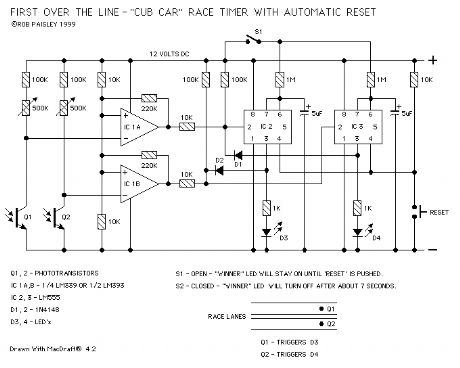

Automatic Reset - Race Scorer

Published:2013/6/18 20:52:00 Author:muriel | Keyword: Automatic Reset , Race Scorer

Automatic Reset - Race Scorer
  (View)

View full Circuit Diagram | Comments | Reading(527)

Basic Race Scorer

Published:2013/6/18 20:51:00 Author:muriel | Keyword: Basic Race Scorer

Basic Race Scorer
  (View)

View full Circuit Diagram | Comments | Reading(536)

Low Battery Voltage Cutout Circuits 2

Published:2013/6/18 20:51:00 Author:muriel | Keyword: Low Battery, Voltage Cutout Circuits

Low Battery Voltage Cutout Circuits 2
  (View)

View full Circuit Diagram | Comments | Reading(748)

Low Battery Voltage Cutout Circuits

Published:2013/6/18 20:51:00 Author:muriel | Keyword: Low Battery , Voltage Cutout Circuits

Low Battery Voltage Cutout Circuits
  (View)

View full Circuit Diagram | Comments | Reading(729)
