SPP07N65C2, SPP07N65C3, SPP-100

Table of contents:
Info of SPP07N65C2
Info of SPP07N65C3
Info of SPP-100

SPP07N65C2, SPP07N65C3, SPP-100 Selling Leads, Datasheet

MFG:Infineon Technologies Category:Discrete Semiconductor Products Package Cooled:TO-220 D/C:06+Pb-Free

SPP07N65C2, SPP07N65C3, SPP-100 Datasheet download

Five Points

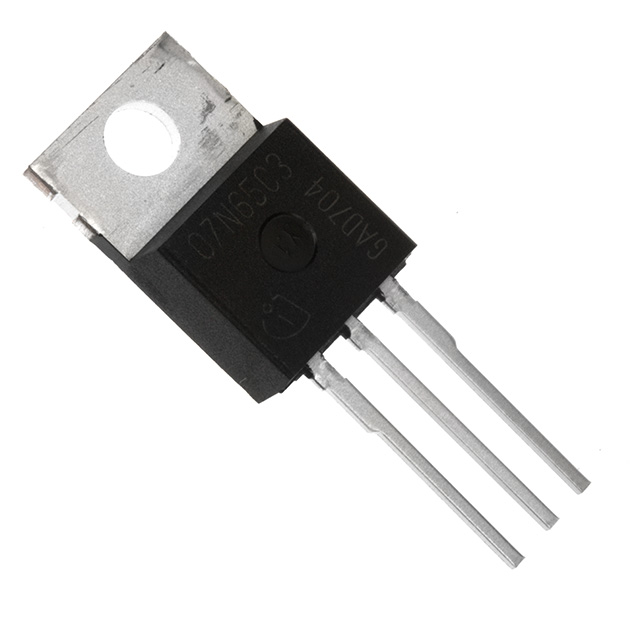

Part Number: SPP07N65C3

Category: Discrete Semiconductor Products

MFG: Infineon Technologies

Package Cooled: TO-220

D/C: 06+Pb-Free

Description: MOSFET N-CH 650V 7.3A TO-220

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

SPP07N65C3 Parameters

Technical/Catalog Information	SPP07N65C3
Vendor	Infineon Technologies
Category	Discrete Semiconductor Products
Mounting Type	Through Hole
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	650V
Current - Continuous Drain (Id) @ 25° C	7.3A
Rds On (Max) @ Id, Vgs	600 mOhm @ 4.6A, 10V
Input Capacitance (Ciss) @ Vds	790pF @ 25V
Power - Max	83W
Packaging	Tube
Gate Charge (Qg) @ Vgs	27nC @ 10V
Package / Case	TO-220
FET Feature	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	SPP07N65C3 SPP07N65C3 SPP07N65C3IN ND SPP07N65C3INND SPP07N65C3IN

SPP07N65C3 Maximum Ratings

Parameter	Symbol	Value		Unit
Parameter	Symbol	SPP_I	SPA	Unit
Continuous drain current T_C = 25 °C T_C= 100 °C	I_D	7.3 4.6	7.3¹) 4.6¹)	A
Pulsed drain current, t_p limited by T_jmax	I_D _puls	21.9	21.9	A
Avalanche energy, single pulse I_D=1.5A, V_DD=50V	E_AS	230	230	mJ
Avalanche energy, repetitive t_AR limited by T_jmax²) I_D=2.5A, V_DD=50V	E_AR	0.5	0.5	mJ
Avalanche current, repetitive t_AR limited by T_jmax	I_AR	2.5	2.5	A
Gate source voltage	V_GS	±20	±20	V
Gate source voltage AC (f >1Hz)	V_GS	±30	±30
Power dissipation, T_C = 25°C	P_tot	83	32	W
Operating and storage temperature	T_j, T_stg	-55...+150		°C
Drain Source voltage slope V_DS = 480 V, I_D = 7.3 A, T_j = 125 °C	dv/dt	50		V/ns

SPP07N65C3 Features

• New revolutionary high voltage technology
• Ultra low gate charge
• Periodic avalanche rated
• Extreme dv/dt rated
• High peak current capability
• Improved transconductance
• P-TO-220-3-31: Fully isolated package (2500 VAC; 1 minute)
