MFG:International Rectifier Category:Discrete Semiconductor Products Package Cooled:TO-251 D/C:new
IRLU3802PBF, IRLU3915, IRLU4343 Datasheet download
Category: Discrete Semiconductor Products
MFG: International Rectifier

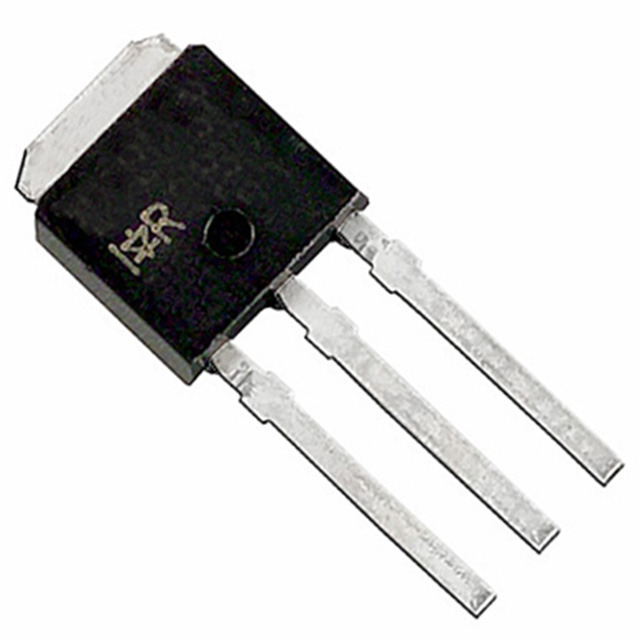

Package Cooled: TO-251
D/C: new
Description: MOSFET N-CH 12V 84A I-PAK
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: IRLU3802PBF
File Size: 284929 KB
Manufacturer: IRF [International Rectifier]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: IRLU3915
File Size: 595632 KB
Manufacturer: IRF [International Rectifier]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: IRLU4343
File Size: 261304 KB
Manufacturer: IRF [International Rectifier]
Download : Click here to Download
| Technical/Catalog Information | IRLU3802PBF |
| Vendor | International Rectifier |
| Category | Discrete Semiconductor Products |
| Mounting Type | Through Hole |
| FET Polarity | N-Channel |
| Drain to Source Voltage (Vdss) | 12V |
| Current - Continuous Drain (Id) @ 25° C | 84A |
| Rds On (Max) @ Id, Vgs | 8.5 mOhm @ 15A, 4.5V |
| Input Capacitance (Ciss) @ Vds | 2490pF @ 6V |
| Power - Max | 88W |
| Packaging | Tube |
| Gate Charge (Qg) @ Vgs | 41nC @ 5V |
| Package / Case | IPak, TO-251, DPak, VPak (3 straight leads + tab) |
| FET Feature | Logic Level Gate |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | IRLU3802PBF IRLU3802PBF |
| Symbol | Parameter |
Max. |
Units |
| VDS | Drain-Source Voltage |
12 |
V |
| VGS | Gate-to-Source Voltage |
± 12 |
V |
| ID @ TA = 25°C | Continuous Drain Current, VGS @ 4.5V |
84 |
A |
| ID @ TA =100°C | Continuous Drain Current, VGS @ 4.5V |
60 | |
| IDM | Pulsed Drain Current |
320 | |
| PD @TC = 25°C | Maximum Power Dissipation |
88 |
W |
| PD @TC = 100°C | Maximum Power Dissipation |
44 |
W |
| Linear Derating Factor |
0.59 |
mW/ | |
| TJ , TSTG | Junction and Storage Temperature Range |
-55 to + 175 |
Specifically designed for Automotive applications, this HEXFET® Power MOSFET utilizes the latest processing techniques to achieve extremely low on-resistance per silicon area. Additional features of this product are a 175°C junction operatingtemperature, fast switching speed and improved repetitive avalanche rating. These features combine to make this design an extremely efficient and reliable device for use in Automotive applications and a wide variety of other applications.
|
|
Parameter | Max. | Units |
| ID @ TC = 25°C | Continuous Drain Current, VGS @ 10V(Silicon limited) | 61 | A |
| ID @ TC = 100°C | Continuous Drain Current, VGS @ 10V(See Fig.9) | 43 |
|
| ID @ TC = 25°C | Continuous Drain Current, VGS @ 10V (Package limited) | 30 | |
| IDM | Pulsed Drain Current | 240 |
|
| PD @TC = 25°C | C Power Dissipation | 120 | W |
|
|
Linear Derating Factor | 0.77 | W/°C |
| VGS | Gate-to-Source Voltage | ±16 | V |
| EAS | Single Pulse Avalanche Energy | 200 | mJ |
| EAS (6 sigma) | Single Pulse Avalanche Energy Tested Value | 600 | |
| IAR | Avalanche Current | See Fig.12a, 12b, 15, 16 | A |
| EAR | Repetitive Avalanche Energy | mJ | |
| TJ TSTG |
Operating Junction and TSTG Storage Temperature Range |
-55 to + 150 | °C |
|
|
Soldering Temperature, for 10 seconds | 300 (1.6mm from case ) |
|
This Digital Audio HEXFET® is specifically designed for Class-D audio amplifier applications. This MosFET utilizes the latest processing techniques to achieve low on-resistance per silicon area. Furthermore, Gate charge, body-diode reverse recovery and internal Gate resistance are optimized to improve key Class-D audio amplifier performance factors such as efficiency, THD and EMI. Additional features of this MosFET are 175°C operating junction temperature and repetitive avalanche capability.
These features combine to make this MosFET a highly efficient, robust and reliable device for Class-D audio amplifier
applications.
| Parameter |
Max |
Units | |
| VDS | Drain-to-Source Voltage |
55 |
V |
| VGS | Gate-to-Source Voltage |
±20 |
|
| ID @ TC = 25°C | Continuous Drain Current, VGS @ 10V |
26 |
A |
| ID @ TC = 100°C | Continuous Drain Current, VGS @ 10V |
19 |
|
| IDM | Pulsed Drain Current |
80 |
|
| PD @TC = 25°C | Power Dissipation |
79 |
W |
| PD @TC = 100°C | Power Dissipation |
39 |
|
| Linear Derating Factor |
0.53 |
W/°C | |
| TJ TSTG |
Operating Junction and Storage Temperature Range |
-40 to + 175 |
°C |
| Clamping Pressure |
N |
