FDM606P, FDM6296, FDMA1023PZ

Table of contents:
Info of FDM606P
Info of FDM6296
Info of FDMA1023PZ

FDM606P, FDM6296, FDMA1023PZ Selling Leads, Datasheet

MFG:Fairchild Semiconductor Category:Discrete Semiconductor Products Package Cooled:N/A D/C:2008+

FDM606P, FDM6296, FDMA1023PZ Datasheet download

Five Points

Part Number: FDM6296

Category: Discrete Semiconductor Products

MFG: Fairchild Semiconductor

Package Cooled: N/A

D/C: 2008+

Description: MOSFET P-CHAN DUAL MICROFET2X2

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

FDM606P Parameters

Technical/Catalog Information	FDM606P
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	P-Channel
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25° C	6.8A
Rds On (Max) @ Id, Vgs	30 mOhm @ 6.8A, 4.5V
Input Capacitance (Ciss) @ Vds	2200pF @ 10V
Power - Max	1.92W
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	30nC @ 4.5V
Package / Case	MLP 2 x 5 -6
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDM606P FDM606P

FDM606P General Description

This P-Channel MOSFET is produced using Fairchild Semiconductor's advanced PowerTrench process that has been especially tailoredto minimizetheon-stateresistance and yet maintain low gate charge for superior switching performance. These devices are well suited for portable
electronics applications.

FDM606P Maximum Ratings

Symbol	Parameter	Ratings	Units
VDSS	Drain to Source Voltage	-20	V
VGS	Gate to Source Voltage	8	V
ID	Drain Current Continuous (T_C=25, V_GS= - 4.5V) Continuous (T_C =100, V_GS= - 2.5V) Continuous (T_C =100, V_GS= - 1.8V) Pulsed	-6.8	A
		-3.8	A
		-3.0	A
		Figure 4
PD	Power dissipation Derate above 25	1.92 15.4	W mW/
TJ ,TSTG	Operating and Storage Temperature	-55 to 150

FDM606P Features

* Fast switching
*r _DS(ON) =0.026(Typ), V_GS = -4.5V
*r _DS(ON) =0.033(Typ), V_GS = -2.5V
*r _DS(ON) =0.052(Typ), V_GS = -1.8V

FDM606P Typical Application

* Loadswitch
* Battery charge
* Battery disconnect circuits

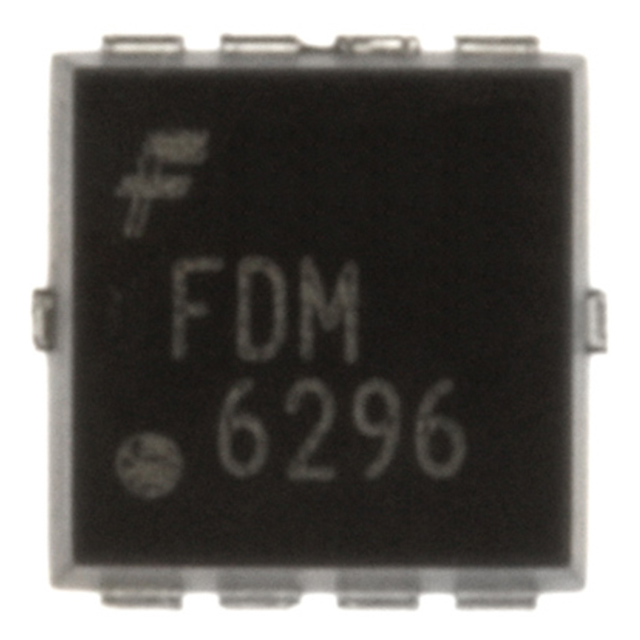

FDM6296 Parameters

Technical/Catalog Information	FDM6296
Vendor	Fairchild Semiconductor (VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25° C	11.5A
Rds On (Max) @ Id, Vgs	10.5 mOhm @ 11.5A, 10V
Input Capacitance (Ciss) @ Vds	2005pF @ 15V
Power - Max	900mW
Packaging	Cut Tape (CT)
Gate Charge (Qg) @ Vgs	17nC @ 5V
Package / Case	Power33
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDM6296 FDM6296 FDM6296CT ND FDM6296CTND FDM6296CT

FDM6296 General Description

This single N-Channel MOSFET in the thermally efficient MicroFET package has been specifically designed to perform well in Point of Load converters. Providing an optimized balance between Rds(on) and gate charge this device can be effectively used as a "high side" control switch or "low side" synchronous rectifier.

FDM6296 Maximum Ratings

Symbol	Parameter	Ratings	Units
V_DSS	Drain-Source Voltage	30	V
V_GSS	Gate-Source Voltage	±20	V
I_D	Drain Current - Continuous (Note 1a) - Pulsed	11.5	A
I_D	Drain Current - Continuous (Note 1a) - Pulsed	40	A
P_D	Power Dissipation for Single Operation (Note 1a) (Note 1b)	2.5	W
P_D	Power Dissipation for Single Operation (Note 1a) (Note 1b)	1.2	W
T_J, T_stg	Operating and Storage Junction Temperature Range	-55 to +150

FDM6296 Features

11.5 A, 30 V R_DS(ON) = 10.5 m W @ V_GS = 10 V
R_DS(ON) = 15 m W @ V_GS = 4.5 V
Low Qg, Qgd and Rg for efficient switching performance
Low Profile MicroFET 3.3 x 3.3 mm

FDM6296 Typical Application

Point of Load Converter
1/16 Brick Synchronous Rectifier

FDMA1023PZ Parameters

Technical/Catalog Information	FDMA1023PZ
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	2 P-Channel (Dual)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25° C	3.7A
Rds On (Max) @ Id, Vgs	72 mOhm @ 3.7A, 4.5V
Input Capacitance (Ciss) @ Vds	655pF @ 10V
Power - Max	700mW
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	12nC @ 4.5V
Package / Case	Microfet 2x2
FET Feature	Logic Level Gate
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDMA1023PZ FDMA1023PZ FDMA1023PZTR ND FDMA1023PZTRND FDMA1023PZTR
