MFG:Fairchild Semiconductor Category:Discrete Semiconductor Products Package Cooled:MicroFET D/C:2010+
FDM6296_NL, FDMA1024NZ, FDMA1025P Datasheet download
Category: Discrete Semiconductor Products
MFG: Fairchild Semiconductor
Package Cooled: MicroFET
D/C: 2010+
Description: MOSFET P-CH DUAL 20V 3.1A MLP2X2
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: FDM 100-0045SP
File Size: 46537 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FDM 100-0045SP
File Size: 46537 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FDM 100-0045SP
File Size: 46537 KB
Manufacturer:
Download : Click here to Download

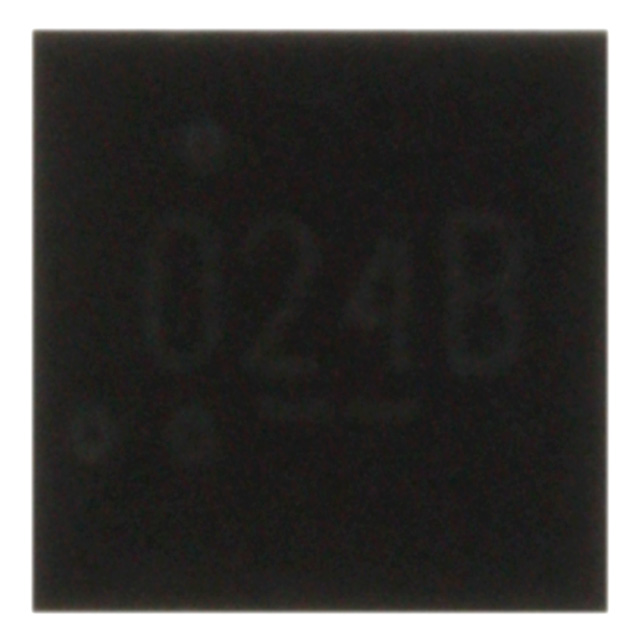

| Technical/Catalog Information | FDMA1024NZ |
| Vendor | Fairchild Semiconductor |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | 2 N-Channel (Dual) |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25° C | 5A |
| Rds On (Max) @ Id, Vgs | 54 mOhm @ 5A, 4.5V |
| Input Capacitance (Ciss) @ Vds | 500pF @ 10V |
| Power - Max | 700mW |
| Packaging | Tape & Reel (TR) |
| Gate Charge (Qg) @ Vgs | 7.3nC @ 4.5V |
| Package / Case | Microfet 2x2 |
| FET Feature | Logic Level Gate |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FDMA1024NZ FDMA1024NZ FDMA1024NZTR ND FDMA1024NZTRND FDMA1024NZTR |
This device is designed specifically as a single package solutionfor dual switching requirements in cellular handset and otherultra-portable applications. It features two independentN-Channel MOSFETs with low on-state resistance for minimumconduction losses.
The MicroFET 2X2 package offers exceptional thermalperformance for its physical size and is well suited to linear modeapplications.
| Product | Product status | Eco Status | Pricing* | Package type | Leads | Packing method | Package Drawing | Package Marking Convention** |
|---|---|---|---|---|---|---|---|---|
| FDMA1024NZ | Full Production | Green | $0.42 | MicroFET | 6 | TAPE REEL | Line 1: &E&Y (Binary Calendar Year Coding) Line 2: &O024&C Line 3: &.&O&V |
| * Fairchild 1,000 piece Budgetary Pricing |
| ** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples |
Package marking information for product FDMA1024NZ is available. Click here for more information . |
| Technical/Catalog Information | FDMA1025P |
| Vendor | Fairchild Semiconductor |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | 2 P-Channel (Dual) |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25° C | 3.1A |
| Rds On (Max) @ Id, Vgs | 155 mOhm @ 3.1A, 4.5V |
| Input Capacitance (Ciss) @ Vds | 450pF @ 10V |
| Power - Max | 700mW |
| Packaging | Tape & Reel (TR) |
| Gate Charge (Qg) @ Vgs | 4.8nC @ 4.5V |
| Package / Case | MLP 2 x 2 |
| FET Feature | Logic Level Gate |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FDMA1025P FDMA1025P FDMA1025PTR ND FDMA1025PTRND FDMA1025PTR |
