MFG:Fairchild Semiconductor (VA) Category:Discrete Semiconductor Products Package Cooled:MicroFET D/C:2010+

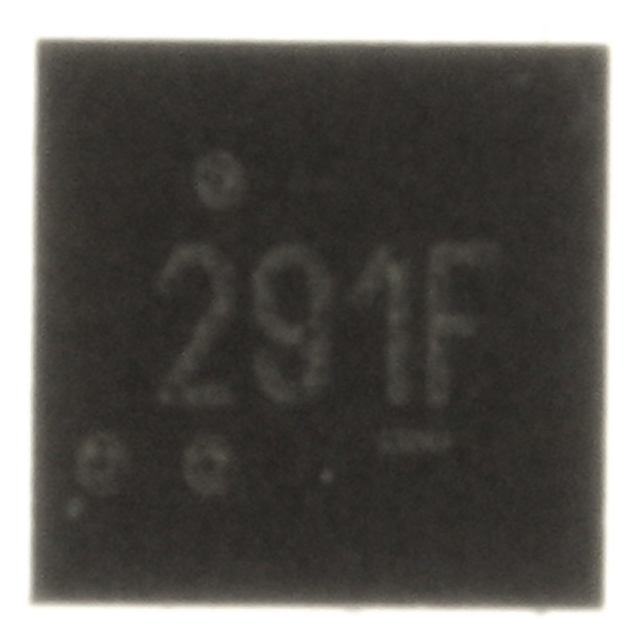

FDMA291P, FDMA291PZ, FDMA3023PZ Datasheet download
Category: Discrete Semiconductor Products
MFG: Fairchild Semiconductor (VA)
Package Cooled: MicroFET
D/C: 2010+
Description: MOSFET P-CH DUAL 30V MICROFET6
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: FDM 100-0045SP
File Size: 46537 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FDM 100-0045SP
File Size: 46537 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FDM 100-0045SP
File Size: 46537 KB
Manufacturer:
Download : Click here to Download
| Technical/Catalog Information | FDMA291P |
| Vendor | Fairchild Semiconductor (VA) |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | P-Channel |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25° C | 6.6A |
| Rds On (Max) @ Id, Vgs | 42 mOhm @ 6.6A, 4.5V |
| Input Capacitance (Ciss) @ Vds | 1000pF @ 10V |
| Power - Max | 900mW |
| Packaging | Cut Tape (CT) |
| Gate Charge (Qg) @ Vgs | 14nC @ 4.5V |
| Package / Case | Microfet 2x2 |
| FET Feature | Logic Level Gate |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FDMA291P FDMA291P FDMA291PCT ND FDMA291PCTND FDMA291PCT |
| Technical/Catalog Information | FDMA3023PZ |
| Vendor | Fairchild Semiconductor (VA) |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | 2 P-Channel (Dual) |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25° C | 2.9A |
| Rds On (Max) @ Id, Vgs | 90 mOhm @ 2.9A, 4.5V |
| Input Capacitance (Ciss) @ Vds | 530pF @ 15V |
| Power - Max | 700mW |
| Packaging | Cut Tape (CT) |
| Gate Charge (Qg) @ Vgs | 11nC @ 4.5V |
| Package / Case | MicroFET-6 |
| FET Feature | Logic Level Gate |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FDMA3023PZ FDMA3023PZ FDMA3023PZCT ND FDMA3023PZCTND FDMA3023PZCT |
This device is designed specifically as a single package solution for the battery charge switch in cellular handset and other ultra-portable applications. It features two independent P-Channel MOSFETs with low on-state resistance for minimum conduction losses. When connected in the typical common source configuration, bi-directional current flow is possible.
The MicroFET 2X2 package offers exceptional thermal performance for its physical size and is well suited to linear mode applications.
| Product | Product status | Eco Status | Pricing* | Package type | Leads | Packing method | Package Drawing | Package Marking Convention** |
|---|---|---|---|---|---|---|---|---|
| FDMA3023PZ | Full Production | Green | $0.39 | MicroFET | 6 | TAPE REEL | Line 1: &E&Y (Binary Calendar Year Coding) Line 2: &O323&C Line 3: &.&O&V |
| * Fairchild 1,000 piece Budgetary Pricing |
| ** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples |
Package marking information for product FDMA3023PZ is available. Click here for more information . |
