FDMA410NZ, FDMA420NZ, FDMA430NZ

Table of contents:
Info of FDMA410NZ
Info of FDMA420NZ
Info of FDMA430NZ

FDMA410NZ, FDMA420NZ, FDMA430NZ Selling Leads, Datasheet

MFG:Fairchild Semiconductor (VA) Category:Discrete Semiconductor Products Package Cooled:MicroFET D/C:2010+

FDMA410NZ, FDMA420NZ, FDMA430NZ Datasheet download

Five Points

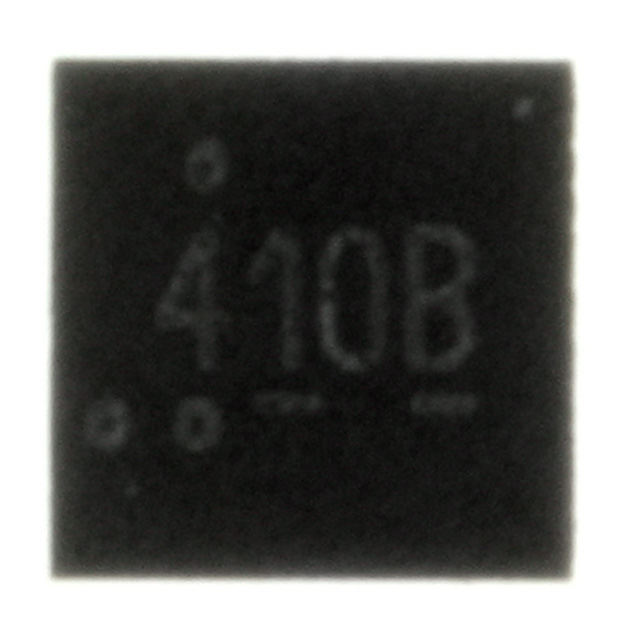

Part Number: FDMA410NZ

Category: Discrete Semiconductor Products

MFG: Fairchild Semiconductor (VA)

Package Cooled: MicroFET

D/C: 2010+

Description: MOSFET N-CH SGL 30V MICROFET

Price Break

1
10
100
250
500
1000

Unit Price

.56000
.42000
.31500
.23240
.19600
.18620

Extended Price

0.56
4.20
31.50
58.10
98.00
186.20

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

FDMA410NZ Parameters

Technical/Catalog Information	FDMA410NZ
Vendor	Fairchild Semiconductor (VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25° C	9.5A
Rds On (Max) @ Id, Vgs	23 mOhm @ 9.5A, 4.5V
Input Capacitance (Ciss) @ Vds	1080pF @ 10V
Power - Max	900mW
Packaging	Cut Tape (CT)
Gate Charge (Qg) @ Vgs	14nC @ 4.5V
Package / Case	MicroFET-6
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDMA410NZ FDMA410NZ FDMA410NZCT ND FDMA410NZCTND FDMA410NZCT

FDMA410NZ General Description

This Single N-Channel MOSFET has been designed using Fairchild Semiconductor?s advanced Power Trench process to optimize the r_DS(ON) @ V_GS = 1.5 V on special MicroFET leadframe.

FDMA410NZ Maximum Ratings

Product	Product status	Eco Status	Pricing*	Package type	Leads	Packing method	Package Drawing	Package Marking Convention**
FDMA410NZ	Full Production	Green	$0.372	MicroFET	6	TAPE REEL		Line 1: &E&Y (Binary Calendar Year Coding) Line 2: &O410&C Line 3: &.&O&V

* Fairchild 1,000 piece Budgetary Pricing

** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product FDMA410NZ is available. Click here for more information .

FDMA420NZ Parameters

Technical/Catalog Information	FDMA420NZ
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25° C	5.7A
Rds On (Max) @ Id, Vgs	30 mOhm @ 5.7A, 4.5V
Input Capacitance (Ciss) @ Vds	935pF @ 10V
Power - Max	2.4W
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	12nC @ 4.5V
Package / Case	MicroFET-6
FET Feature	Logic Level Gate
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDMA420NZ FDMA420NZ FDMA420NZTR ND FDMA420NZTRND FDMA420NZTR

FDMA430NZ Parameters

Technical/Catalog Information	FDMA430NZ
Vendor	Fairchild Semiconductor (VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25° C	5A
Rds On (Max) @ Id, Vgs	40 mOhm @ 5A, 4.5V
Input Capacitance (Ciss) @ Vds	800pF @ 10V
Power - Max	2.4W
Packaging	Cut Tape (CT)
Gate Charge (Qg) @ Vgs	11nC @ 4.5V
Package / Case	MicroFET-6
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDMA430NZ FDMA430NZ FDMA430NZCT ND FDMA430NZCTND FDMA430NZCT
