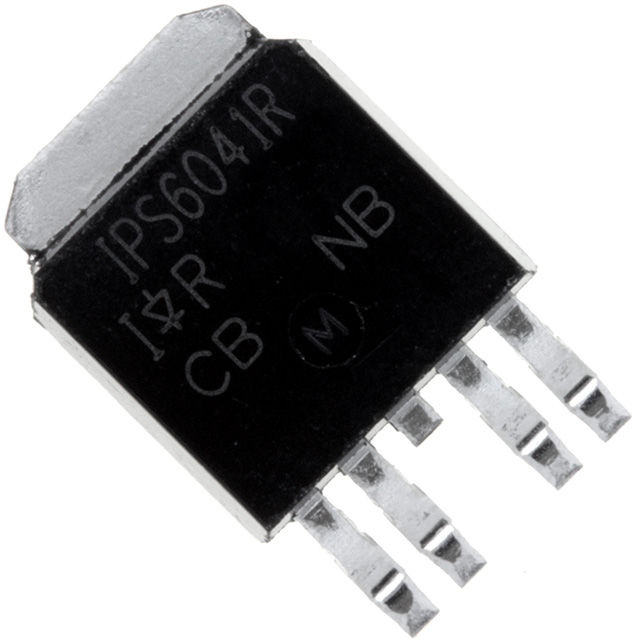

The IPS6041(G)(Power Switch (IPS ) for use in a high side configuration. It features short circuit, over-temperature, ESD protection, inductive load capability and diagnostic feedback. The output current is limited to the Ilim value. The current limitation is activated until the thermal protection acts. The over-temperature protection turns off the device if the junction temperature exceeds the Tshutdown value. It will automatically restart after the junction has cooled 7below the Tshutdown value. The reverse battery protection turns On the MOSFET. A diagnostic pin provides different voltage levels for each fault condition. The double level shifter circuitry will allow large offsets between the logic and load ground.
IPS6041RPBF Maximum Ratings
Symbol
Parameter
Min.
Max.
Units
Vout
Maximum output voltage
Vcc-35
Vcc+0.3
Voffset
Maximum logic ground to load ground offset
Vcc-35
Vcc+0.3
Vin
Maximum input voltage
-0.3
5.5
Vcc max.
Maximum Vcc voltage
-
36
Vcc cont.
Maximum continuous Vcc voltage
-
28
Iin max.
Maximum IN current
-3
10
Idg max.
Maximum diagnostic output current
-3
10
Vdg
Maximum diagnostic output voltage
-0.3
5.5
Pd
Maximum power dissipation (internally limited by thermal protection) Rth=100/W IPS6041G
-
1.25
Rth=50°C/W IPS6041R 1"sqrt. footprint
-
2.5
ESD
Electrostatic discharge voltage (Human body) C=100pF, R=1500 Between In and Vcc
-
1500
Other combinations
-
4000
Electrostatic discharge voltage (Machine Model) C=200pF,R=0,L=10H Between In and Vcc
-
100
Other combinations
-
500
Tj max.
Max. storage & operating temperature junction temperature
-40
150
Tsoldering
Soldering temperature (10 seconds)
-
300
IPS6041RPBF Features
Over temperature shutdown (with auto-restart) Short circuit protection (current limit) Reverse battery protection (turns On the MOSFET) Full diagnostic capability (short circuit to battery) Active clamp Open load detection in On and Off state Ground loss p rotection Logic ground isolated from power ground ESD protection
