FDT457, FDT457N, FDT457N/457

Table of contents:
Info of FDT457
Info of FDT457N
Info of FDT457N/457

FDT457, FDT457N, FDT457N/457 Selling Leads, Datasheet

MFG:Fairchild Semiconductor (VA) Category:Discrete Semiconductor Products Package Cooled:TO-223 D/C:05+

FDT457, FDT457N, FDT457N/457 Datasheet download

Five Points

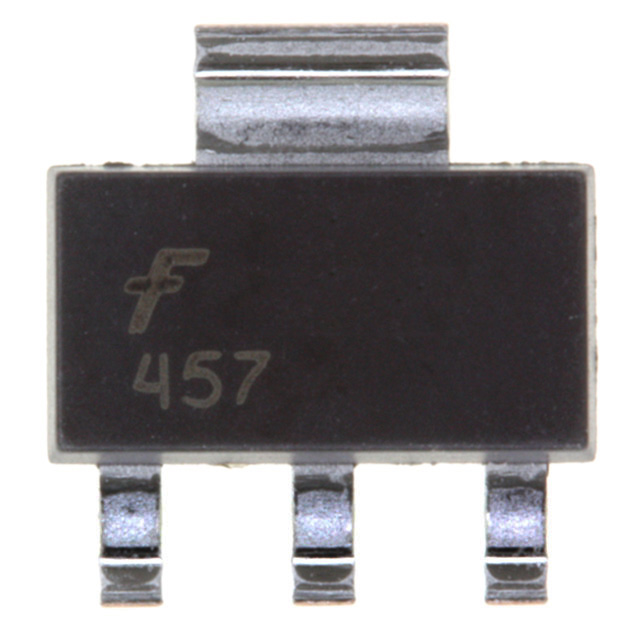

Part Number: FDT457N

Category: Discrete Semiconductor Products

MFG: Fairchild Semiconductor (VA)

Package Cooled: TO-223

D/C: 05+

Description: MOSFET N-CH 30V 5A SOT-223

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

FDT457N Parameters

Technical/Catalog Information	FDT457N
Vendor	Fairchild Semiconductor (VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25° C	5A
Rds On (Max) @ Id, Vgs	60 mOhm @ 5A, 10V
Input Capacitance (Ciss) @ Vds	235pF @ 15V
Power - Max	1.1W
Packaging	Digi-Reel?
Gate Charge (Qg) @ Vgs	5.9nC @ 5V
Package / Case	SOT-223, SC-73, TO-261 (3 Leads + Tab)
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDT457N FDT457N FDT457NDKR ND FDT457NDKRND FDT457NDKR

FDT457N General Description

These N-Channel enhancement mode power field effect transistors are produced using Fairchild's proprietary, high cell density, DMOS technology. This very high density process is especially tailored to minimize on-state resistance, provide superior switching performance. These products are well suited to low voltage, low current applications such as notebook computer power management, battery powered circuits, and DC motor control.

FDT457N Maximum Ratings

Symbol	Parameter	Ratings	Units
V_DSS	Drain-Source Voltage	30	V
V_GSS	Gate-Source Voltage	±20	V
I_D	Drain Current Continuous (Note 1a) Pulsed	5	A
I_D	Drain Current Continuous (Note 1a) Pulsed	16	A
P_D	Power Dissipation for Single Operation (Note 1a) (Note 1b) (Note 1c)	3.0	W
		1.3
		1.1
T_J, T_STG	Operating and Storage Junction Temperature Range	65 to +150	°C

FDT457N Features

5 A, 30 V. R_DS(ON) = 0.06 W @ V_GS = 10 V
R_DS(ON) = 0.090 W @ V_GS = 4.5 V.
High density cell design for extremely low R_DS(ON).High power and current handling capability in a widely used surface mount package.

FDT457N Connection Diagram
