MFG:Fairchild Semiconductor (VA) Category:Discrete Semiconductor Products Package Cooled:03+ D/C:QFN
FDMS8870S, FDMS8880, FDMS9600S Datasheet download
Category: Discrete Semiconductor Products
MFG: Fairchild Semiconductor (VA)
Package Cooled: 03+
D/C: QFN
Description: MOSFET N-CH DUAL 30V POWER56
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: FDM 100-0045SP
File Size: 46537 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FDM 100-0045SP
File Size: 46537 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FDM 100-0045SP
File Size: 46537 KB
Manufacturer:
Download : Click here to Download
| Technical/Catalog Information | FDMS8880 |
| Vendor | Fairchild Semiconductor |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | N-Channel |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25° C | 13.5A |
| Rds On (Max) @ Id, Vgs | 8.5 mOhm @ 13.5A, 10V |
| Input Capacitance (Ciss) @ Vds | 1585pF @ 15V |
| Power - Max | 2.5W |
| Packaging | Tape & Reel (TR) |
| Gate Charge (Qg) @ Vgs | 33nC @ 10V |
| Package / Case | Power56 |
| FET Feature | Logic Level Gate |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FDMS8880 FDMS8880 FDMS8880TR ND FDMS8880TRND FDMS8880TR |
The FDMS8880 has been designed to minimize losses in powerconversion application. Advancements in both silicon andpackage technologies have been combined to offer the lowestrDS(on) while maintaining excellent switching performance.
| Product | Product status | Eco Status | Pricing* | Package type | Leads | Packing method | Package Drawing | Package Marking Convention** |
|---|---|---|---|---|---|---|---|---|

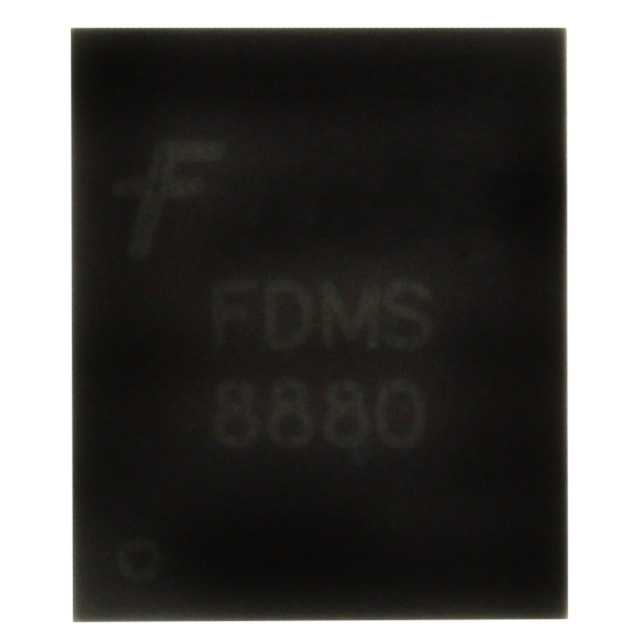

| FDMS8880 | Full Production | Green | $0.45 | Power 56 (PQFN) | 8 | TAPE REEL | Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &3 (3-Digit Date Code) &K Line 2: FDMS Line 3: 8880 |
| * Fairchild 1,000 piece Budgetary Pricing |
| ** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples |
Package marking information for product FDMS8880 is available. Click here for more information . |
| Technical/Catalog Information | FDMS9600S |
| Vendor | Fairchild Semiconductor (VA) |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | 2 N-Channel (Dual) |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25° C | 12A, 16A |
| Rds On (Max) @ Id, Vgs | 8.5 mOhm @ 12A, 10V |
| Input Capacitance (Ciss) @ Vds | 1705pF @ 15V |
| Power - Max | 1W |
| Packaging | Cut Tape (CT) |
| Gate Charge (Qg) @ Vgs | 13nC @ 4.5V |
| Package / Case | Power56 |
| FET Feature | Logic Level Gate |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FDMS9600S FDMS9600S FDMS9600SCT ND FDMS9600SCTND FDMS9600SCT |
