FDMS86101, FDMS8660, FDMS8660AS

Table of contents:
Info of FDMS86101
Info of FDMS8660
Info of FDMS8660AS

FDMS86101, FDMS8660, FDMS8660AS Selling Leads, Datasheet

MFG:Fairchild Semiconductor Category:Discrete Semiconductor Products Package Cooled:Power 56 D/C:2010+

FDMS86101, FDMS8660, FDMS8660AS Datasheet download

Five Points

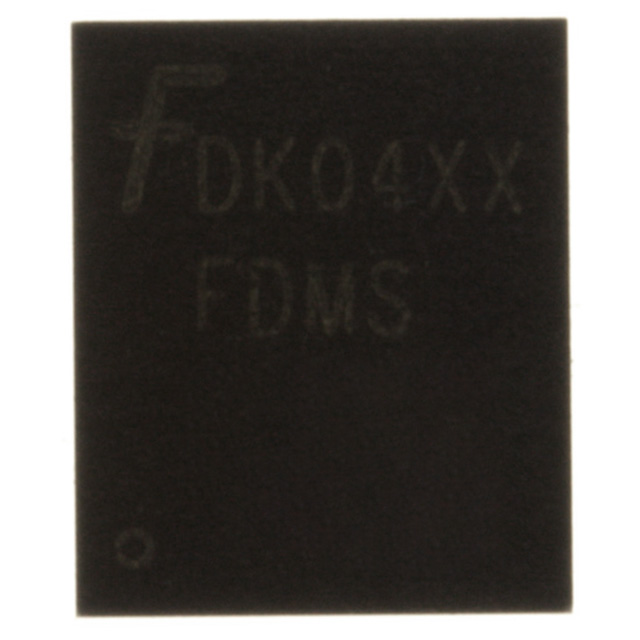

Part Number: FDMS8660AS

Category: Discrete Semiconductor Products

MFG: Fairchild Semiconductor

Package Cooled: Power 56

D/C: 2010+

Description: MOSFET N-CH 30V 28A POWER56

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

FDMS86101 Parameters

Technical/Catalog Information	FDMS86101
Vendor	Fairchild Semiconductor (VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25° C	12.4A
Rds On (Max) @ Id, Vgs	8 mOhm @ 13A, 10V
Input Capacitance (Ciss) @ Vds	3000pF @ 50V
Power - Max	2.5W
Packaging	Digi-Reel?
Gate Charge (Qg) @ Vgs	55nC @ 10V
Package / Case	Power56
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDMS86101 FDMS86101 FDMS86101DKR ND FDMS86101DKRND FDMS86101DKR

FDMS8660AS Parameters

Technical/Catalog Information	FDMS8660AS
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25° C	28A
Rds On (Max) @ Id, Vgs	2.1 mOhm @ 28A, 10V
Input Capacitance (Ciss) @ Vds	5865pF @ 15V
Power - Max	2.5W
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	83nC @ 10V
Package / Case	Power56
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDMS8660AS FDMS8660AS FDMS8660ASTR ND FDMS8660ASTRND FDMS8660ASTR
