FDMS7670, FDMS7672, FDMS8460

Table of contents:
Info of FDMS7670
Info of FDMS7672
Info of FDMS8460

FDMS7670, FDMS7672, FDMS8460 Selling Leads, Datasheet

MFG:Fairchild Semiconductor Category:Discrete Semiconductor Products Package Cooled:POWER56 D/C:03+

FDMS7670, FDMS7672, FDMS8460 Datasheet download

Five Points

Part Number: FDMS7670

Category: Discrete Semiconductor Products

MFG: Fairchild Semiconductor

Package Cooled: POWER56

D/C: 03+

Description: MOSFET N-CH 40V 25A POWER56

Price Break

3000
6000
12000
27000

Unit Price

.67840
.66250
.64925
.63600

Extended Price

2035.20
3975.00
7791.00
17172.00

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

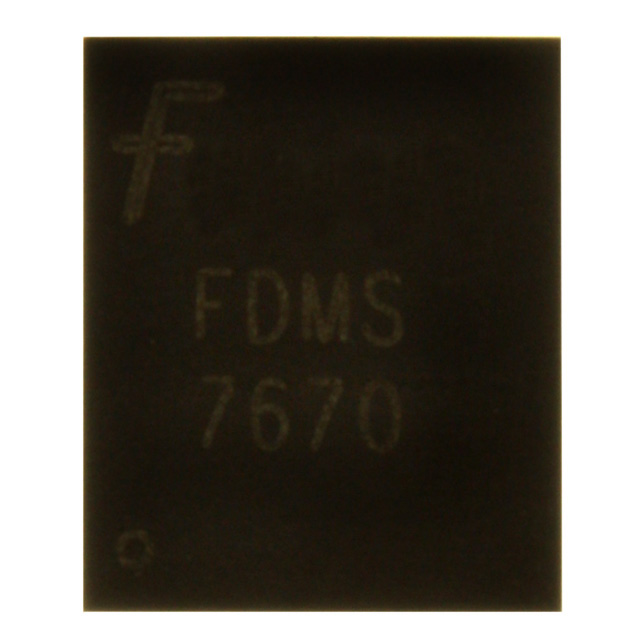

FDMS7670 Parameters

Technical/Catalog Information	FDMS7670
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25° C	21A
Rds On (Max) @ Id, Vgs	3.8 mOhm @ 21A, 10V
Input Capacitance (Ciss) @ Vds	4105pF @ 15V
Power - Max	2.5W
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	56nC @ 10V
Package / Case	Power56
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDMS7670 FDMS7670 FDMS7670TR ND FDMS7670TRND FDMS7670TR

FDMS7670 General Description

This N-Channel MOSFET has been designed specifically to improve the overall efficiency and to minimize switch node ringing of DC/DC converters using either synchronous or conventional switching PWM controllers. It has been optimized for low gate charge, low rDS(on), fast switching speed and body diode reverse recovery performance.

FDMS7670 Maximum Ratings

Product	Product status	Eco Status	Pricing*	Package type	Leads	Packing method	Package Drawing	Package Marking Convention**
FDMS7670	Full Production	Green	$0.72	Power 56 (PQFN)	8	TAPE REEL		Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &3 (3-Digit Date Code) &K Line 2: FDMS Line 3: 7670

* Fairchild 1,000 piece Budgetary Pricing

** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product FDMS7670 is available. Click here for more information .

FDMS7672 Parameters

Technical/Catalog Information	FDMS7672
Vendor	Fairchild Semiconductor (VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25° C	19A
Rds On (Max) @ Id, Vgs	5 mOhm @ 19A, 10V
Input Capacitance (Ciss) @ Vds	2960pF @ 15V
Power - Max	2.5W
Packaging	Digi-Reel?
Gate Charge (Qg) @ Vgs	44nC @ 10V
Package / Case	Power56
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDMS7672 FDMS7672 FDMS7672DKR ND FDMS7672DKRND FDMS7672DKR

FDMS7672 General Description

FDMS7672 Maximum Ratings

Product	Product status	Eco Status	Pricing*	Package type	Leads	Packing method	Package Drawing	Package Marking Convention**
FDMS7672	Full Production	Green	$0.66	Power 56 (PQFN)	8	TAPE REEL		Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &3 (3-Digit Date Code) &K Line 2: FDMS Line 3: 7672

* Fairchild 1,000 piece Budgetary Pricing

** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product FDMS7672 is available. Click here for more information .

FDMS8460 Parameters

Technical/Catalog Information	FDMS8460
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25° C	25A
Rds On (Max) @ Id, Vgs	2.2 mOhm @ 25A, 10V
Input Capacitance (Ciss) @ Vds	7205pF @ 20V
Power - Max	2.5W
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	110nC @ 10V
Package / Case	Power56
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDMS8460 FDMS8460 FDMS8460TR ND FDMS8460TRND FDMS8460TR

Hotspot Suppliers Product
