FDMS6673BZ, FDMS6681Z, FDMS7660

Table of contents:
Info of FDMS6673BZ
Info of FDMS6681Z
Info of FDMS7660

FDMS6673BZ, FDMS6681Z, FDMS7660 Selling Leads, Datasheet

MFG:Fairchild Semiconductor (VA) Category:Discrete Semiconductor Products Package Cooled:Power 56 D/C:2010+

FDMS6673BZ, FDMS6681Z, FDMS7660 Datasheet download

Five Points

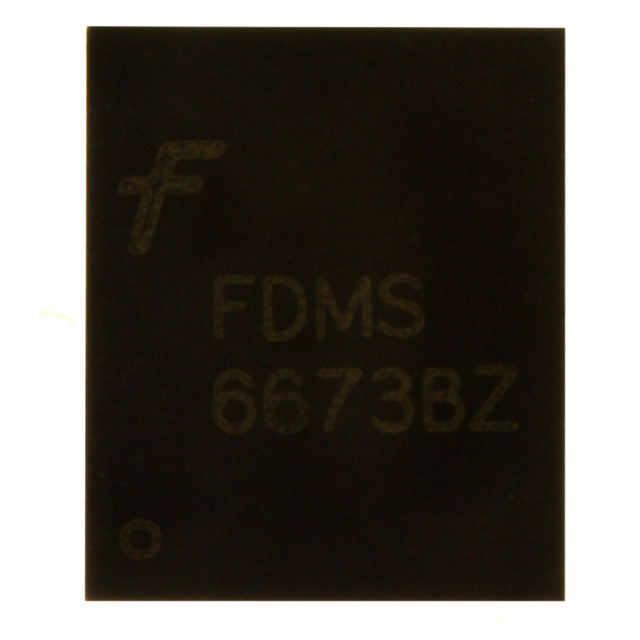

Part Number: FDMS6673BZ

Category: Discrete Semiconductor Products

MFG: Fairchild Semiconductor (VA)

Package Cooled: Power 56

D/C: 2010+

Description: MOSFET N-CH 30V TRENCH POWER56

Price Break

1
10
100
250
500
1000

Unit Price

1.38000
1.10000
.82500
.77000
.74250
.71500

Extended Price

1.38
11.00
82.50
192.50
371.25
715.00

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

FDMS6673BZ Parameters

Technical/Catalog Information	FDMS6673BZ
Vendor	Fairchild Semiconductor (VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	P-Channel
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25° C	15.2A
Rds On (Max) @ Id, Vgs	6.8 mOhm @ 15.2A, 10V
Input Capacitance (Ciss) @ Vds	5915pF @ 15V
Power - Max	2.5W
Packaging	Cut Tape (CT)
Gate Charge (Qg) @ Vgs	130nC @ 10V
Package / Case	Power56
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDMS6673BZ FDMS6673BZ FDMS6673BZCT ND FDMS6673BZCTND FDMS6673BZCT

FDMS6673BZ General Description

The FDMS6673BZ has been designed to minimize losses in load switch applications. Advancements in both silicon and package technologies have been combined to offer the lowest r_DS(on) and ESD protection.

FDMS6673BZ Maximum Ratings

Product	Product status	Eco Status	Pricing*	Package type	Leads	Packing method	Package Drawing	Package Marking Convention**
FDMS6673BZ	Full Production	Green	$0.99	Power 56 (PQFN)	8	TAPE REEL		Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &3 (3-Digit Date Code) &K Line 2: FDMS Line 3: 6673BZ

* Fairchild 1,000 piece Budgetary Pricing

** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product FDMS6673BZ is available. Click here for more information .

FDMS6681Z Parameters

Technical/Catalog Information	FDMS6681Z
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	P-Channel
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25° C	21.1A
Rds On (Max) @ Id, Vgs	3.2 mOhm @ 22.1A, 10V
Input Capacitance (Ciss) @ Vds	10380pF @ 15V
Power - Max	2.5W
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	241nC @ 10V
Package / Case	Power56
FET Feature	Logic Level Gate
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDMS6681Z FDMS6681Z FDMS6681ZTR ND FDMS6681ZTRND FDMS6681ZTR

FDMS6681Z General Description

The FDMS6681Z has been designed to minimize losses in load switch applications. Advancements in both silicon and package technologies have been combined to offer the lowest r_DS(on) and ESD protection.

FDMS6681Z Maximum Ratings

Product	Product status	Eco Status	Pricing*	Package type	Leads	Packing method	Package Drawing	Package Marking Convention**
FDMS6681Z	Full Production	Green	$1.32	Power 56 (PQFN)	8	TAPE REEL		Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &3 (3-Digit Date Code) &K Line 2: FDMS Line 3: 6681Z

* Fairchild 1,000 piece Budgetary Pricing

** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product FDMS6681Z is available. Click here for more information .

FDMS7660 Parameters

Technical/Catalog Information	FDMS7660
Vendor	Fairchild Semiconductor (VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25° C	25A
Rds On (Max) @ Id, Vgs	2.8 mOhm @ 25A, 10V
Input Capacitance (Ciss) @ Vds	5565pF @ 15V
Power - Max	2.5W
Packaging	Cut Tape (CT)
Gate Charge (Qg) @ Vgs	84nC @ 10V
Package / Case	Power56
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDMS7660 FDMS7660 FDMS7660CT ND FDMS7660CTND FDMS7660CT

FDMS7660 General Description

This N-Channel MOSFET has been designed specifically toimprove the overall efficiency and to minimize switch noderinging of DC/DC converters using either synchronous orconventional switching PWM controllers. It has been optimizedfor low gate charge, low r_DS(on, fast switching speed and bodydiode reverse recovery performance.

FDMS7660 Maximum Ratings

Product	Product status	Eco Status	Pricing*	Package type	Leads	Packing method	Package Drawing	Package Marking Convention**
FDMS7660	Full Production	Green	$0.90	Power 56 (PQFN)	8	TAPE REEL		Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &3 (3-Digit Date Code) &K Line 2: FDMS Line 3: 7660

* Fairchild 1,000 piece Budgetary Pricing

** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product FDMS7660 is available. Click here for more information .
