MFG:Fairchild Semiconductor (VA) Category:Discrete Semiconductor Products Package Cooled:QFN56 D/C:07+
FDMF8704V, FDMF8705, FDMJ1023PZ Datasheet download
Category: Discrete Semiconductor Products
MFG: Fairchild Semiconductor (VA)
Package Cooled: QFN56
D/C: 07+
Description: MOSFET P-CH DUAL 20V 2.9A SC75
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: FDM 100-0045SP
File Size: 46537 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FDM 100-0045SP
File Size: 46537 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FDM 100-0045SP
File Size: 46537 KB
Manufacturer:
Download : Click here to Download
| Technical/Catalog Information | FDMF8704V |
| Vendor | Fairchild Semiconductor (VA) |
| Category | Integrated Circuits (ICs) |
| Type | Step-Down (Buck) |
| Number of Outputs | 1 |
| Voltage - Input | 7 ~ 20 V |
| Voltage - Output | 0.8 ~ 3.2 V |
| Current - Output | 32A |
| Power - Output | 10W |
| Package / Case | 56-MLP |
| Packaging | Cut Tape (CT) |
| Internal Switch(s) | Yes |
| Synchronous | Yes |
| Rds (On) | - |
| Operating Temperature | -55°C ~ 150°C |
| Frequency - Switching | 1MHz |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FDMF8704V FDMF8704V FDMF8704VCT ND FDMF8704VCTND FDMF8704VCT |

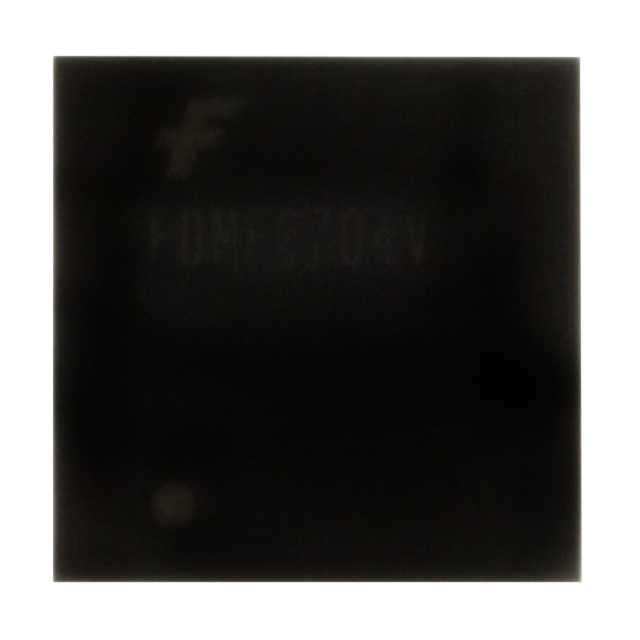

The FDMF8704V is a fully optimized integrated Driver plusMOSFET power stage solution for high current synchronousbuck DC-DC applications. The device integrates a driver IC andtwo Power MOSFETs into a space saving, MLP 8x8, 56-pinpackage. Fairchild Semiconductor??s integrated approachoptimizes the complete switching power stage with regards todriver to FET dynamic performance, system inductance andoverall solution ON resistance. Package parasitics andproblematical layouts associated with conventional discretesolutions are greatly reduced. This integrated approach resultsin significant board space saving, therefore maximizing footprintpower density. This solution is based on the Intel™ DrMOSspecification.
| Product | Product status | Eco Status | Pricing* | Package type | Leads | Packing method | Package Drawing | Package Marking Convention** |
|---|---|---|---|---|---|---|---|---|
| FDMF8704V | Full Production | Green | $4.36 | Power 88 | 56 | TAPE REEL | Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &2 (2-Digit Date Code) &T (Die Trace Code) Line 2: FDMF8704V |
| * Fairchild 1,000 piece Budgetary Pricing |
| ** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples |
Package marking information for product FDMF8704V is available. Click here for more information . |
| Technical/Catalog Information | FDMF8705 |
| Vendor | Fairchild Semiconductor |
| Category | Integrated Circuits (ICs) |
| Type | Step-Down (Buck) |
| Number of Outputs | 1 |
| Voltage - Input | 12V |
| Voltage - Output | - |
| Current - Output | 18A |
| Power - Output | 6.25W |
| Package / Case | Power88-56 |
| Packaging | Tape & Reel (TR) |
| Internal Switch(s) | Yes |
| Synchronous | Yes |
| Rds (On) | - |
| Operating Temperature | -55°C ~ 150°C |
| Frequency - Switching | 500kHz |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FDMF8705 FDMF8705 FDMF8705TR ND FDMF8705TRND FDMF8705TR |
| Technical/Catalog Information | FDMJ1023PZ |
| Vendor | Fairchild Semiconductor (VA) |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | 2 P-Channel (Dual) |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25° C | 2.9A |
| Rds On (Max) @ Id, Vgs | * |
| Input Capacitance (Ciss) @ Vds | 400pF @ 10V |
| Power - Max | 1.4W |
| Packaging | Digi-Reel? |
| Gate Charge (Qg) @ Vgs | 6.5nC @ 4.5V |
| Package / Case | SC-75 |
| FET Feature | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FDMJ1023PZ FDMJ1023PZ FDMJ1023PZDKR ND FDMJ1023PZDKRND FDMJ1023PZDKR |
