MFG:Fairchild Semiconductor (VA) Category:Integrated Circuits (ICs) Package Cooled:Power 33 (PQFN) D/C:2010+
FDMC8884, FDMF6704, FDMF6704A Datasheet download
Category: Integrated Circuits (ICs)
MFG: Fairchild Semiconductor (VA)
Package Cooled: Power 33 (PQFN)
D/C: 2010+
Description: MODULE DRMOS XS 40-MLP
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: FDM 100-0045SP
File Size: 46537 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FDM 100-0045SP
File Size: 46537 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FDM 100-0045SP
File Size: 46537 KB
Manufacturer:
Download : Click here to Download

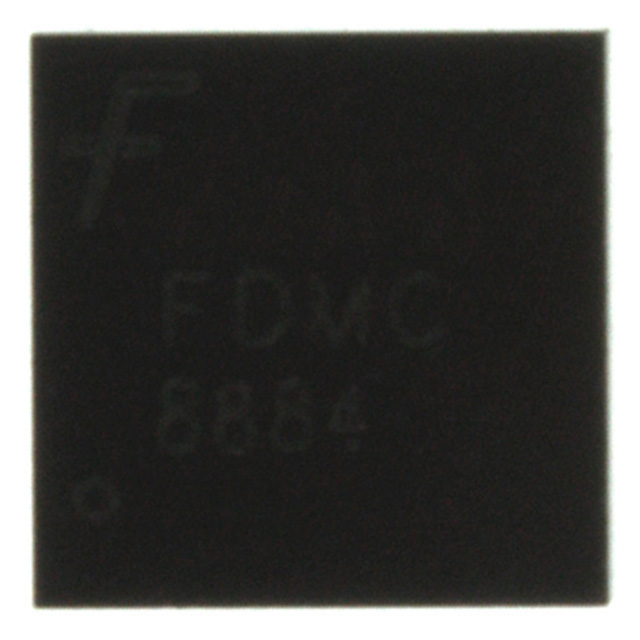

| Technical/Catalog Information | FDMC8884 |
| Vendor | Fairchild Semiconductor |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | N-Channel |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25° C | 9A |
| Rds On (Max) @ Id, Vgs | 19 mOhm @ 9A, 10V |
| Input Capacitance (Ciss) @ Vds | 685pF @ 15V |
| Power - Max | 2.3W |
| Packaging | Tape & Reel (TR) |
| Gate Charge (Qg) @ Vgs | 14nC @ 10V |
| Package / Case | Power33 |
| FET Feature | Logic Level Gate |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FDMC8884 FDMC8884 FDMC8884TR ND FDMC8884TRND FDMC8884TR |
This N-Channel MOSFET is produced using FairchildSemiconductor?s advanced Power Trench® process that hasbeen especially tailored to minimize the on-state resistance. Thisdevice is well suited for Power Management and load switchingapplications common in Notebook Computers and PortableBattery Packs.
| Product | Product status | Eco Status | Pricing* | Package type | Leads | Packing method | Package Drawing | Package Marking Convention** |
|---|---|---|---|---|---|---|---|---|
| FDMC8884 | Full Production | Green | $0.234 | Power 33 | 8 | TAPE REEL | MLP08O | Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &2 (2-Digit Date Code) &K Line 2: FDMC Line 3: 8884 |
| * Fairchild 1,000 piece Budgetary Pricing |
| ** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples |
Package marking information for product FDMC8884 is available. Click here for more information . |
| Technical/Catalog Information | FDMF6704 |
| Vendor | Fairchild Semiconductor |
| Category | Integrated Circuits (ICs) |
| Package / Case | 40-MLP |
| Mounting Type | Surface Mount |
| Type | High Side/Low Side Driver |
| Voltage - Supply | 3 V ~ 14 V |
| On-State Resistance | - |
| Current - Output / Channel | 35A |
| Current - Peak Output | 80A |
| Packaging | Tape & Reel (TR) |
| Input Type | Non-Inverting |
| Number of Outputs | 1 |
| Operating Temperature | -55°C ~ 150°C |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FDMF6704 FDMF6704 |
The XS™ DrMOS family is Fairchild?s next-generation fullyoptimizedultra-compact integrated MOSFET plus driver powerstage solution for high current, high frequency synchronousbuck DC-DC applications. The FDMF6704 DrMOS integrates adriver IC, two power MOSFETs and a bootstrap Schottky diodeinto a thermally enhanced compact 6 mm x 6 mm MLPpackage. With an integrated approach, the complete switchingpower stage is optimized with regards to driver and MOSFETdynamic performance, system inductance and RDS(ON). Thisgreatly reduces the package parasitics and layout challengesassociated with conventional discrete solutions. The driver ICincorporates advanced features such as SMOD. PWM input isTri-State compatible. A 5 V gate drive and an improved PCBinterface [Low Side MOSFET exposed pad] ensure higherperformance. This product is compatible with the new Intel6 mm x 6 mm DrMOS specification.
| Product | Product status | Eco Status | Pricing* | Package type | Leads | Packing method | Package Drawing | Package Marking Convention** |
|---|---|---|---|---|---|---|---|---|
| FDMF6704 | Full Production | Green | $3.00 | Power 66 | 40 | TAPE REEL | Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &2 (2-Digit Date Code) &K Line 2: FDMF6704_1 |
| * Fairchild 1,000 piece Budgetary Pricing |
| ** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples |
Package marking information for product FDMF6704 is available. Click here for more information . |
| Technical/Catalog Information | FDMF6704A |
| Vendor | Fairchild Semiconductor (VA) |
| Category | Integrated Circuits (ICs) |
| Package / Case | 40-MLP |
| Mounting Type | Surface Mount |
| Type | High Side/Low Side Driver |
| Voltage - Supply | 3 V ~ 14 V |
| On-State Resistance | - |
| Current - Output / Channel | 35A |
| Current - Peak Output | 80A |
| Packaging | Digi-Reel? |
| Input Type | Non-Inverting |
| Number of Outputs | 1 |
| Operating Temperature | -55°C ~ 150°C |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FDMF6704A FDMF6704A FDMF6704ADKR ND FDMF6704ADKRND FDMF6704ADKR |
The XS™ DrMOS family is Fairchild?s next-generation fullyoptimizedultra-compact integrated MOSFET plus driver powerstage solution for high current, high frequency synchronousbuck DC-DC applications. The FDMF6704A DrMOS integratesa driver IC, two power MOSFETs and a bootstrap Schottkydiode into a thermally enhanced compact 6 mm x 6 mm MLPpackage. With an integrated approach, the complete switchingpower stage is optimized with regards to driver and MOSFETdynamic performance, system inductance and RDS(ON). Thisgreatly reduces the package parasitics and layout challengesassociated with conventional discrete solutions. The driver ICincorporates advanced features such as SMOD. A 5 V gatedrive and an improved PCB interface [Low Side MOSFETexposed pad] ensure higher performance. This product meetsthe Intel 6 mm x 6 mm DrMOS pinout.
| Product | Product status | Eco Status | Pricing* | Package type | Leads | Packing method | Package Drawing | Package Marking Convention** |
|---|---|---|---|---|---|---|---|---|
| FDMF6704A | Full Production | Green | $3.00 | Power 66 | 40 | TAPE REEL | Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &2 (2-Digit Date Code) &K Line 2: FDMF6704A_1 |
| * Fairchild 1,000 piece Budgetary Pricing |
| ** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples |
Package marking information for product FDMF6704A is available. Click here for more information . |
