FDMC8651, FDMC8676, FDMC8678S

Table of contents:
Info of FDMC8651
Info of FDMC8676
Info of FDMC8678S

FDMC8651, FDMC8676, FDMC8678S Selling Leads, Datasheet

MFG:Fairchild Semiconductor (VA) Category:Discrete Semiconductor Products Package Cooled:Power 33 (PQFN) D/C:2010+

FDMC8651, FDMC8676, FDMC8678S Datasheet download

Five Points

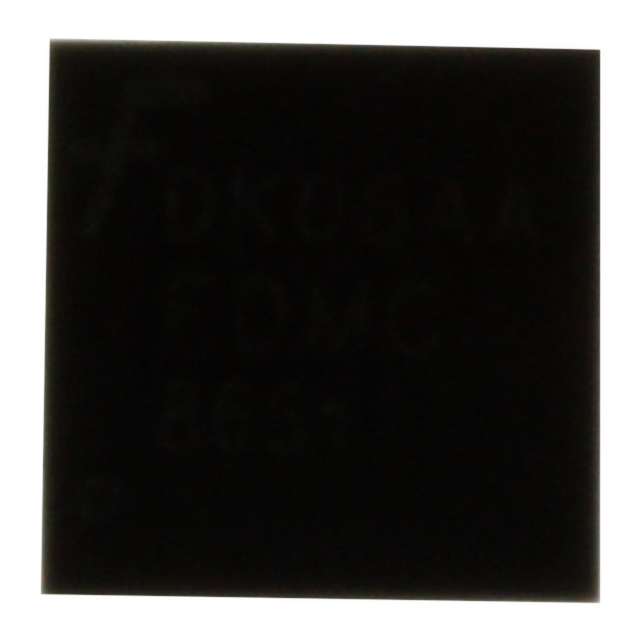

Part Number: FDMC8651

Category: Discrete Semiconductor Products

MFG: Fairchild Semiconductor (VA)

Package Cooled: Power 33 (PQFN)

D/C: 2010+

Description: MOSFET N-CH 30V 15A POWER33

Price Break

1
10
100
1000

Unit Price

1.30000
1.04000
.78000
.67600

Extended Price

1.30
10.40
78.00
676.00

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

FDMC8651 Parameters

Technical/Catalog Information	FDMC8651
Vendor	Fairchild Semiconductor (VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25° C	15A
Rds On (Max) @ Id, Vgs	6.1 mOhm @ 15A, 4.5V
Input Capacitance (Ciss) @ Vds	3365pF @ 15V
Power - Max	2.3W
Packaging	Cut Tape (CT)
Gate Charge (Qg) @ Vgs	27.2nC @ 4.5V
Package / Case	Power33
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDMC8651 FDMC8651 FDMC8651CT ND FDMC8651CTND FDMC8651CT

FDMC8651 General Description

This device has been designed specifically to improve theefficiency of DC/DC converters. Using new techniques inMOSFET construction, the various components of gate chargeand capacitance have been optimized to reduce switchinglosses. Low gate resistance and very low Miller charge enableexcellent performance with both adaptive and fixed dead timegate drive circuits. Very low r_DS(on) has been maintained toprovide a sub logic-level device.

FDMC8651 Maximum Ratings

Product	Product status	Eco Status	Pricing*	Package type	Leads	Packing method	Package Drawing	Package Marking Convention**
FDMC8651	Full Production	Green	$1.08	Power 33 (PQFN)	8	TAPE REEL		Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &3 (3-Digit Date Code) &K Line 2: FDMC Line 3: 8651

* Fairchild 1,000 piece Budgetary Pricing

** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product FDMC8651 is available. Click here for more information .

FDMC8676 Parameters

Technical/Catalog Information	FDMC8676
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25° C	16A
Rds On (Max) @ Id, Vgs	5.9 mOhm @ 14.7A, 10V
Input Capacitance (Ciss) @ Vds	1935pF @ 15V
Power - Max	2.3W
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	30nC @ 10V
Package / Case	Power33
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDMC8676 FDMC8676 FDMC8676TR ND FDMC8676TRND FDMC8676TR

FDMC8678S Parameters

Technical/Catalog Information	FDMC8678S
Vendor	Fairchild Semiconductor (VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25° C	15A
Rds On (Max) @ Id, Vgs	5.2 mOhm @ 15A, 10V
Input Capacitance (Ciss) @ Vds	2075pF @ 15V
Power - Max	2.3W
Packaging	Digi-Reel?
Gate Charge (Qg) @ Vgs	34nC @ 10V
Package / Case	Power33
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDMC8678S FDMC8678S FDMC8678SDKR ND FDMC8678SDKRND FDMC8678SDKR
