FDMC8296, FDMC8462, FDMC8554

Table of contents:
Info of FDMC8296
Info of FDMC8462
Info of FDMC8554

FDMC8296, FDMC8462, FDMC8554 Selling Leads, Datasheet

MFG:Fairchild Semiconductor Category:Discrete Semiconductor Products Package Cooled:Power 33 (PQFN) D/C:2010+

FDMC8296, FDMC8462, FDMC8554 Datasheet download

Five Points

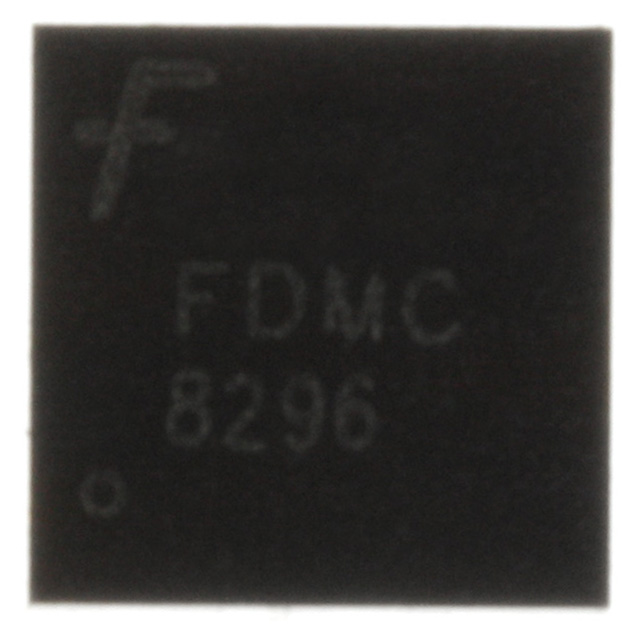

Part Number: FDMC8296

Category: Discrete Semiconductor Products

MFG: Fairchild Semiconductor

Package Cooled: Power 33 (PQFN)

D/C: 2010+

Description: MOSFET N-CHAN 20V 16.5A POWER33

Price Break

3000
6000
12000
27000

Unit Price

.49400
.48450
.47500
.46550

Extended Price

1482.00
2907.00
5700.00
12568.50

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

FDMC8296 Parameters

Technical/Catalog Information	FDMC8296
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25° C	12A
Rds On (Max) @ Id, Vgs	8 mOhm @ 12A, 10V
Input Capacitance (Ciss) @ Vds	1385pF @ 15V
Power - Max	2.3W
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	23nC @ 10V
Package / Case	Power33
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDMC8296 FDMC8296 FDMC8296TR ND FDMC8296TRND FDMC8296TR

FDMC8462 Parameters

Technical/Catalog Information	FDMC8462
Vendor	Fairchild Semiconductor (VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25° C	14A
Rds On (Max) @ Id, Vgs	5.8 mOhm @ 13.5A, 10V
Input Capacitance (Ciss) @ Vds	2660pF @ 20V
Power - Max	2W
Packaging	Digi-Reel?
Gate Charge (Qg) @ Vgs	43nC @ 10V
Package / Case	Power33
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDMC8462 FDMC8462 FDMC8462DKR ND FDMC8462DKRND FDMC8462DKR

FDMC8554 Parameters

Technical/Catalog Information	FDMC8554
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25° C	16.5A
Rds On (Max) @ Id, Vgs	5 mOhm @ 16.5A, 10V
Input Capacitance (Ciss) @ Vds	3380pF @ 10V
Power - Max	2W
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	62nC @ 10V
Package / Case	Power33
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDMC8554 FDMC8554 FDMC8554TR ND FDMC8554TRND FDMC8554TR
