FDMC3300NZA, FDMC5614P, FDMC8878 Selling Leads, Datasheet

MFG:Fairchild Semiconductor (VA) Category:Discrete Semiconductor Products Package Cooled:QFN D/C:06+

FDMC3300NZA, FDMC5614P, FDMC8878 Datasheet download

Five Points

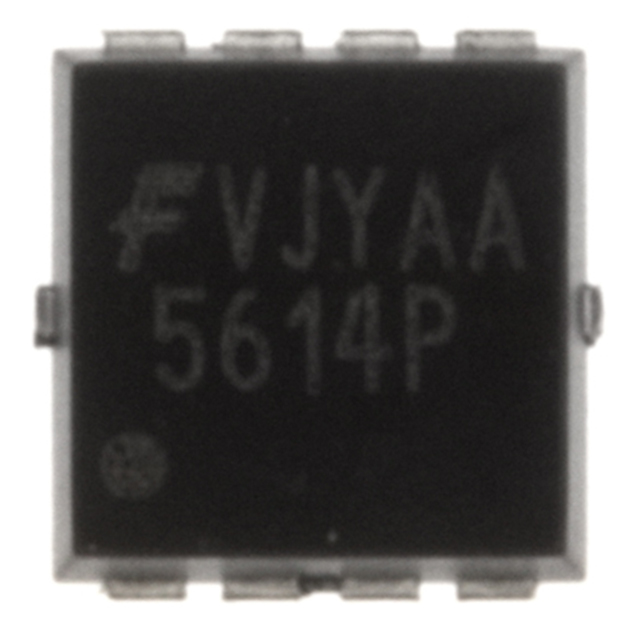

Part Number: FDMC5614P

Category: Discrete Semiconductor Products

MFG: Fairchild Semiconductor (VA)

Package Cooled: QFN

D/C: 06+

Description: MOSFET N-CHAN 30V 9.6A POWER33

Price Break

3000

Unit Price

.22750

Extended Price

682.50

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

FDMC3300NZA Parameters

Technical/Catalog Information	FDMC3300NZA
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	2 N-Channel (Dual)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25° C	8A
Rds On (Max) @ Id, Vgs	26 mOhm @ 8A, 4.5V
Input Capacitance (Ciss) @ Vds	815pF @ 10V
Power - Max	2.1W
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	12nC @ 4.5V
Package / Case	Power33
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDMC3300NZA FDMC3300NZA

FDMC5614P Parameters

Technical/Catalog Information	FDMC5614P
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	P-Channel
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25° C	5.7A
Rds On (Max) @ Id, Vgs	100 mOhm @ 5.7A, 10V
Input Capacitance (Ciss) @ Vds	1055pF @ 30V
Power - Max	2.1W
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	20nC @ 10V
Package / Case	Power33
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDMC5614P FDMC5614P FDMC5614PTR ND FDMC5614PTRND FDMC5614PTR

FDMC8878 Parameters

Technical/Catalog Information	FDMC8878
Vendor	Fairchild Semiconductor (VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25° C	9.6A
Rds On (Max) @ Id, Vgs	14 mOhm @ 9.6A, 10V
Input Capacitance (Ciss) @ Vds	1230pF @ 15V
Power - Max	2.1W
Packaging	Digi-Reel?
Gate Charge (Qg) @ Vgs	26nC @ 10V
Package / Case	Power33
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDMC8878 FDMC8878 FDMC8878DKR ND FDMC8878DKRND FDMC8878DKR
