FDMC2523P, FDMC2610, FDMC2674

Table of contents:
Info of FDMC2523P
Info of FDMC2610
Info of FDMC2674

FDMC2523P, FDMC2610, FDMC2674 Selling Leads, Datasheet

MFG:Fairchild Semiconductor Category:Discrete Semiconductor Products Package Cooled:QFN D/C:06+

FDMC2523P, FDMC2610, FDMC2674 Datasheet download

Five Points

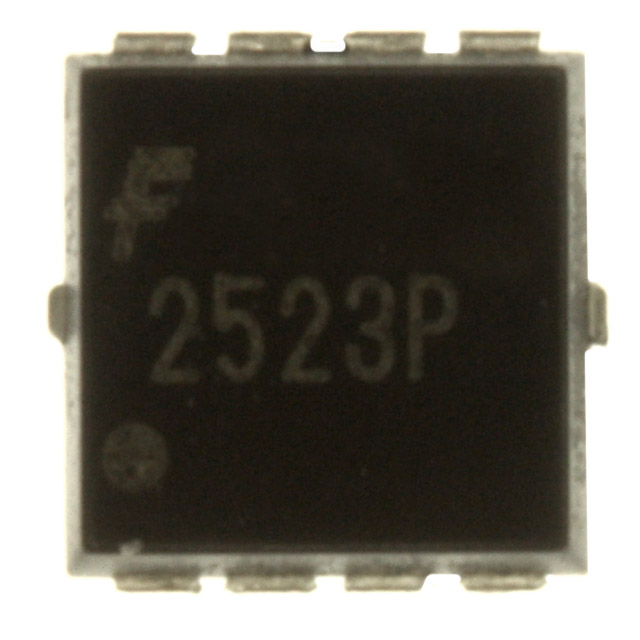

Part Number: FDMC2523P

Category: Discrete Semiconductor Products

MFG: Fairchild Semiconductor

Package Cooled: QFN

D/C: 06+

Description: MOSFET N-CH 220V 1A 3.3SQ MLP

Price Break

3000
6000
12000

Unit Price

.41600
.40800
.40000

Extended Price

1248.00
2448.00
4800.00

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

FDMC2523P Parameters

Technical/Catalog Information	FDMC2523P
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	P-Channel
Drain to Source Voltage (Vdss)	150V
Current - Continuous Drain (Id) @ 25° C	3A
Rds On (Max) @ Id, Vgs	1.5 Ohm @ 1.5A, 10V
Input Capacitance (Ciss) @ Vds	270pF @ 25V
Power - Max	42W
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	9nC @ 10V
Package / Case	MLP 3.3 x 3.3
FET Feature	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDMC2523P FDMC2523P FDMC2523PTR ND FDMC2523PTRND FDMC2523PTR

FDMC2610 Parameters

Technical/Catalog Information	FDMC2610
Vendor	Fairchild Semiconductor (VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	200V
Current - Continuous Drain (Id) @ 25° C	2.2A
Rds On (Max) @ Id, Vgs	200 mOhm @ 2.2A, 10V
Input Capacitance (Ciss) @ Vds	960pF @ 100V
Power - Max	2.1W
Packaging	Digi-Reel?
Gate Charge (Qg) @ Vgs	18nC @ 10V
Package / Case	Power33-8
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDMC2610 FDMC2610 FDMC2610DKR ND FDMC2610DKRND FDMC2610DKR

FDMC2674 Parameters

Technical/Catalog Information	FDMC2674
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	220V
Current - Continuous Drain (Id) @ 25° C	1A
Rds On (Max) @ Id, Vgs	366 mOhm @ 1A, 10V
Input Capacitance (Ciss) @ Vds	1180pF @ 100V
Power - Max	2.1W
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	18nC @ 10V
Package / Case	MLP 3.3 x 3.3
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDMC2674 FDMC2674 FDMC2674TR ND FDMC2674TRND FDMC2674TR
