FDMA6023PZT, FDMB3800N, FDMB506P

Table of contents:
Info of FDMA6023PZT
Info of FDMB3800N
Info of FDMB506P

FDMA6023PZT, FDMB3800N, FDMB506P Selling Leads, Datasheet

MFG:Fairchild Semiconductor Category:Discrete Semiconductor Products Package Cooled:MicroFET D/C:2010+

FDMA6023PZT, FDMB3800N, FDMB506P Datasheet download

Five Points

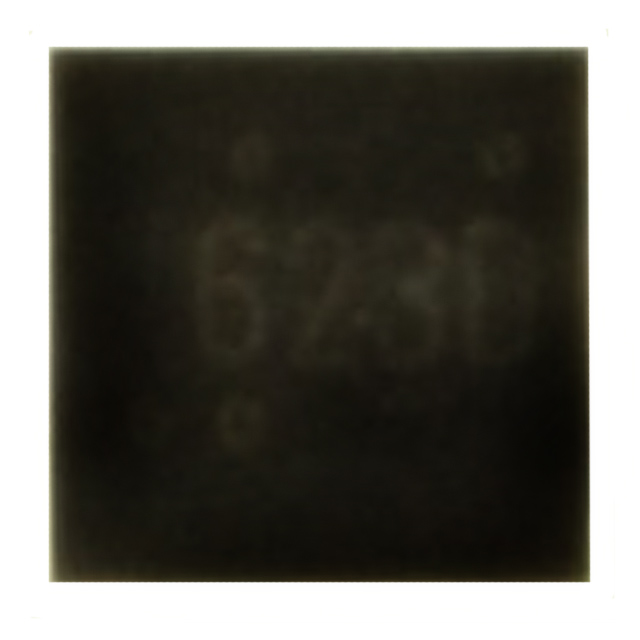

Part Number: FDMA6023PZT

Category: Discrete Semiconductor Products

MFG: Fairchild Semiconductor

Package Cooled: MicroFET

D/C: 2010+

Description: MOSFET P-CH 20V 6.8A 8MICROFET

Price Break

1
10
100
250
500
1000

Unit Price

.80000
.60000
.45000
.33200
.28000
.26600

Extended Price

0.80
6.00
45.00
83.00
140.00
266.00

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

FDMA6023PZT Parameters

Technical/Catalog Information	FDMA6023PZT
Vendor	Fairchild Semiconductor (VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	2 P-Channel (Dual)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25° C	3.6A
Rds On (Max) @ Id, Vgs	60 mOhm @ 3.6A, 4.5V
Input Capacitance (Ciss) @ Vds	885pF @ 10V
Power - Max	700mW
Packaging	Digi-Reel?
Gate Charge (Qg) @ Vgs	17nC @ 4.5V
Package / Case	Microfet 2x2
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDMA6023PZT FDMA6023PZT FDMA6023PZTDKR ND FDMA6023PZTDKRND FDMA6023PZTDKR

FDMB3800N Parameters

Technical/Catalog Information	FDMB3800N
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	2 N-Channel (Dual)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25° C	4.8A
Rds On (Max) @ Id, Vgs	40 mOhm @ 4.8A, 10V
Input Capacitance (Ciss) @ Vds	465pF @ 15V
Power - Max	750mW
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	5.6nC @ 5V
Package / Case	MicroFET-6
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDMB3800N FDMB3800N FDMB3800NTR ND FDMB3800NTRND FDMB3800NTR

FDMB506P Parameters

Technical/Catalog Information	FDMB506P
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	P-Channel
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25° C	6.8A
Rds On (Max) @ Id, Vgs	30 mOhm @ 6.8A, 4.5V
Input Capacitance (Ciss) @ Vds	2960pF @ 10V
Power - Max	1.9W
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	30nC @ 4.5V
Package / Case	MicroFET-6
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDMB506P FDMB506P
