FDMA510PZ, FDMA520PZ, FDMA530PZ

Table of contents:
Info of FDMA510PZ
Info of FDMA520PZ
Info of FDMA530PZ

FDMA510PZ, FDMA520PZ, FDMA530PZ Selling Leads, Datasheet

MFG:Fairchild Semiconductor Category:Discrete Semiconductor Products Package Cooled:SOP D/C:09+

FDMA510PZ, FDMA520PZ, FDMA530PZ Datasheet download

Five Points

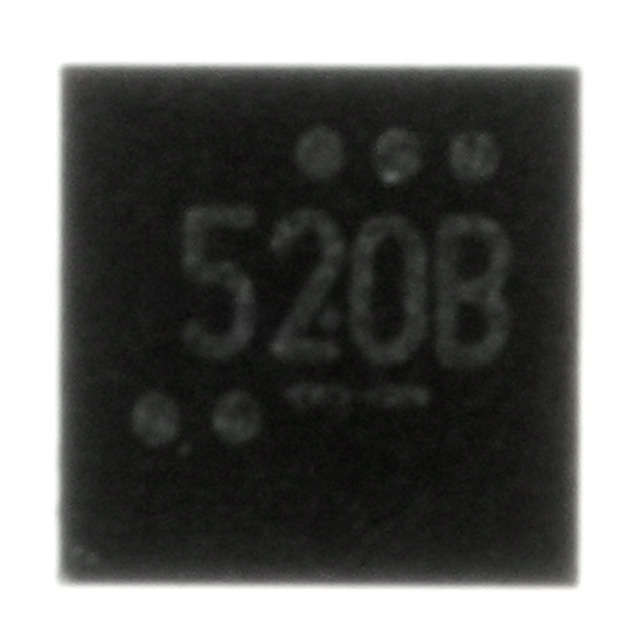

Part Number: FDMA520PZ

Category: Discrete Semiconductor Products

MFG: Fairchild Semiconductor

Package Cooled: SOP

D/C: 09+

Description: MOSFET P-CH 30V 6.8A MLP2X2

Price Break

3000

Unit Price

.25090

Extended Price

752.70

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

FDMA510PZ Parameters

Technical/Catalog Information	FDMA510PZ
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	P-Channel
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25° C	7.8A
Rds On (Max) @ Id, Vgs	30 mOhm @ 7.8A, 4.5V
Input Capacitance (Ciss) @ Vds	1480pF @ 10V
Power - Max	900mW
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	27nC @ 4.5V
Package / Case	Microfet 2x2
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDMA510PZ FDMA510PZ FDMA510PZTR ND FDMA510PZTRND FDMA510PZTR

FDMA520PZ Parameters

Technical/Catalog Information	FDMA520PZ
Vendor	Fairchild Semiconductor (VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	P-Channel
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25° C	7.3A
Rds On (Max) @ Id, Vgs	30 mOhm @ 7.3A, 4.5V
Input Capacitance (Ciss) @ Vds	1645pF @ 10V
Power - Max	900mW
Packaging	Cut Tape (CT)
Gate Charge (Qg) @ Vgs	20nC @ 4.5V
Package / Case	MLP 2 x 2
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDMA520PZ FDMA520PZ FDMA520PZCT ND FDMA520PZCTND FDMA520PZCT

FDMA530PZ Parameters

Technical/Catalog Information	FDMA530PZ
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	P-Channel
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25° C	6.8A
Rds On (Max) @ Id, Vgs	35 mOhm @ 6.8A, 10V
Input Capacitance (Ciss) @ Vds	1070pF @ 15V
Power - Max	900mW
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	24nC @ 10V
Package / Case	MLP 2 x 2
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDMA530PZ FDMA530PZ FDMA530PZTR ND FDMA530PZTRND FDMA530PZTR
