BSO150N03S, BSO200N03S, BSO200N3S

Table of contents:
Info of BSO150N03S
Info of BSO200N03S
Info of BSO200N3S

BSO150N03S, BSO200N03S, BSO200N3S Selling Leads, Datasheet

MFG:Infineon Technologies Category:Discrete Semiconductor Products Package Cooled:SOP8 D/C:03/04+

BSO150N03S, BSO200N03S, BSO200N3S Datasheet download

Five Points

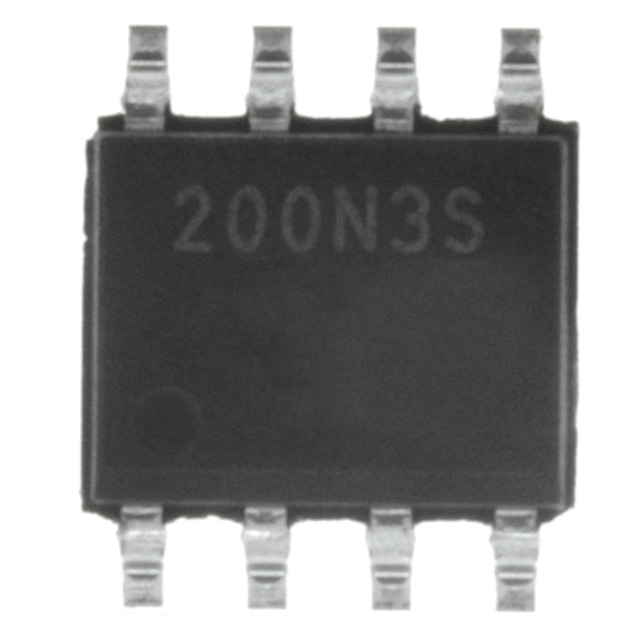

Part Number: BSO200N03S

Category: Discrete Semiconductor Products

MFG: Infineon Technologies

Package Cooled: SOP8

D/C: 03/04+

Description: MOSFET N-CHAN 30V 7A DSO-8

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

BSO200N03S Parameters

Technical/Catalog Information	BSO200N03S
Vendor	Infineon Technologies
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25° C	7A
Rds On (Max) @ Id, Vgs	20 mOhm @ 8.8A, 10V
Input Capacitance (Ciss) @ Vds	840pF @ 15V
Power - Max	1.56W
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	6.5nC @ 5V
Package / Case	DSO-8
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	BSO200N03S BSO200N03S BSO200N03SINTR ND BSO200N03SINTRND BSO200N03SINTR

BSO200N03S Maximum Ratings

Parameter	Symbol	Conditions	Values		Unit
Parameter	Symbol	Conditions	10 secs	steady state	Unit
Continuous drain current	I_D	T_A=25 °C¹⁾	8.8	7.0	A
Continuous drain current	I_D	T_A=70 °C¹⁾	-7.1	5.6	A
Pulsed drain current, one channel active	I_Dpulse	T_A=25 °C²⁾	35		A
Avalanche energy, single pulse	E_AS	I D=-9.1 A, RGS=25	17		mJ
Reverse diode dv/dt	dv/dt	I_D=-9.1 A, V_DS=20 V, di /dt =-200 A/s, T _j,max=150 °C	6		kV/s
Gate source voltage	V_GS		±25		V
Power dissipation	P_tot	T_A=25 °C¹)	2.5	1.56	W
Operating temperature	T _j , T _stg		-55 ... +150		°C
IEC climatic category, DIN IEC 68-1			55/150/56		°C

BSO200N03S Features

• Fast switching MOSFET for SMPS
• Optimized technology for notebook DC/DC
• Qualified according to JEDEC¹for target applications
• N-channel
• Logic level
• Excellent gate charge x R_DS(on) product (FOM)
• Very low on-resistance R_DS(on)• Avalanche rated
• dv /dt rated
