BSO119N03S, BSO130P03S, BSO150N03

BSO119N03S, BSO130P03S, BSO150N03 Selling Leads, Datasheet

MFG:Infineon Technologies (VA)  Category:Discrete Semiconductor Products  Package Cooled:SOP8  D/C:03/04+

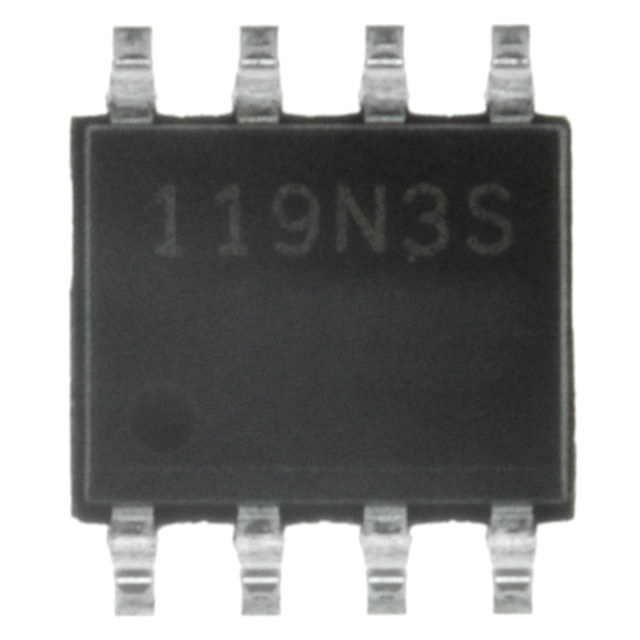

BSO119N03S Picture

BSO119N03S, BSO130P03S, BSO150N03 Datasheet download

Five Points

Part Number: BSO119N03S

Category: Discrete Semiconductor Products

MFG: Infineon Technologies (VA)

Package Cooled: SOP8

D/C: 03/04+

Description: MOSFET N-CHAN 30V 7.6A DSO-8
