IXBD4410SI, IXBD4411, IXBD4411PI

Table of contents:
Info of IXBD4410SI
Info of IXBD4411
Info of IXBD4411PI

IXBD4410SI, IXBD4411, IXBD4411PI Selling Leads, Datasheet

MFG:IXYS Category:Integrated Circuits (ICs) Package Cooled:06+ D/C:0321+

IXBD4410SI, IXBD4411, IXBD4411PI Datasheet download

Five Points

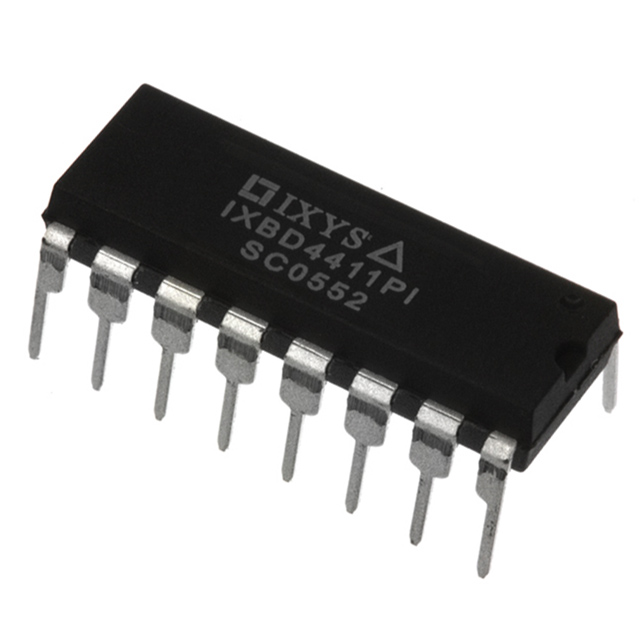

Part Number: IXBD4411PI

Category: Integrated Circuits (ICs)

MFG: IXYS

Package Cooled: 06+

D/C: 0321+

Description: IC HALF BRIDGE DRVR HS 2A 16-DIP

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

IXBD4410SI Suppliers

More IXBD4410SI Suppliers

Select All

IXB033WJZZQ
Qty: 93 Adddate: 2024-11-08
Everbond
Contact: Ms.Moment
Tel: 86-755-26001554
Fax: 86-755-26001352
(25)

IXB249WJZZQ
D/C: 05+& Qty: 924 Adddate: 2024-11-08
Everbond
Contact: Ms.Moment
Tel: 86-755-26001554
Fax: 86-755-26001352
(25)

IXBD4411PI
Vendor: ixys Pack: DIP D/C: 03+& Qty: 93 Adddate: 2024-11-08
Sunll Technology Development Limited
Contact: Mr.BillH
Tel: 86-755-82469201
Fax: 86-755-82469207
(1)

IXBH16N170A
Vendor: ixys D/C: 01+& Adddate: 2024-11-08
TCLT Co.,LTD.
Contact: Ms.BrandyHua
Tel: 86-755-29929313ext801
Fax: --
(0)

IXBH20N160
Pack: TO Qty: 20 Adddate: 2024-11-08
Yuexunfa Electronics
Contact: Ms.linlinda
Tel: 86-755-83778358
Fax: 86-755-83778378
(18)

IXBOD1-12RD
Vendor: ixys D/C: 07+& Qty: 10000 Adddate: 2024-11-08
Hongkong wellcorping CO.LTD
Contact: Ms.Anne
Tel: 86-0755-83678995
Fax: 86-0755-
(87)

IXBOD1-15RD
Vendor: ixys D/C: 07+& Qty: 10000 Adddate: 2024-11-08
Hongkong wellcorping CO.LTD
Contact: Ms.Anne
Tel: 86-0755-83678995
Fax: 86-0755-
(87)

IXBOD1-23RD
Vendor: ixys D/C: 07+& Qty: 10000 Adddate: 2024-11-08
Hongkong wellcorping CO.LTD
Contact: Ms.Anne
Tel: 86-0755-83678995
Fax: 86-0755-
(87)

About IXBD4410SI

PDF/DataSheet Download

Datasheet: IXBD4410SI

File Size: 722096 KB

Manufacturer: IXYS [IXYS Corporation]

Download : Click here to Download

Related PDF Download

IXBD4410
File Size: 722096 KB
IXBD4410P
File Size: 722096 KB
IXBD4410PI
File Size: 722096 KB
IXBD4411
File Size: 722096 KB
IXBD4411PI
File Size: 722096 KB

Related Part Number

IXB027WJW1Q - O-new - 05+
IXB078WJZZQ 294 - O-new - 05+
IXB246WJZZQ - O-new - 05+
IXB611P1 IXYS - DIP8 - 07+
IXBD4410F1 2 - N/A - 9+
IXBD4410SI IXYS - 06+ - 0321+
IXBD4411OI LXTS - DIP - 97
IXBD4411SI IXYS - 06+ - 0321+
IXBD4414PC IXYS - -
IXBF9N140 IXYS - 09+ - TO-
IXBH15N140 IXYS - 09+ - TO-
IXBH16N170A IXYS - 09+ - TO-
IXBH28N170A IXYS - TO-247 - 08+/09+
IXBH42N170 IXYS - TO-247 - N.A
IXBH6N170 IXYS - TO-247AD - 08+/09+
NX8564LE878-BC NEC - N/A - 09+
SA8547TS PHILIPS - TSSOP-20 - 01+
LH1010 HAR - CAN - 05+
06031A1R0CAT2A AVX Corporation - 0603+ - 09+
SA647C PHILIPS - 09+ - 09+
ELLA160ELL103MM40S NIPPON CHEMI-CON - DIP - 09+
S-80945CNMC-G9F SEK - SOT25/SOT353 - 09+
PC82562V 877092 INTEL - SMD/DIP - 2009
D65958 N/A - BGA金脚 - N/A
TLV320AIC24CPFBR Texas Instruments - 2008+ROHS - 09+
IXBD4411500 - IXYS -
IXBF40N160500 - IXYS -
IXBF9N160500 - IXYS -
IXBH15N160500 - IXYS -
IXBH20N160500 - IXYS -
MC100ELT22D
HD14532D
HMBD2004
HMBT5401
HMBTA56
HMBD914
HMBTA94
HMBT8550
HMBT2369
HMBD2003

IXBD4410SI Parameters

Technical/Catalog Information	IXBD4410SI
Vendor	IXYS
Category	Integrated Circuits (ICs)
Configuration	Low-Side
Voltage - Supply	10 V ~ 20 V
Current - Peak	2A
Delay Time	110ns
Package / Case	16-SOIC
Packaging	Tube
Number of Outputs	1
Input Type	Non-Inverting
Number of Configurations	1
Operating Temperature	-40°C ~ 85°C
High Side Voltage - Max (Bootstrap)	1200V
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	IXBD4410SI IXBD4410SI

IXBD4411 General Description

The IXBD4410/IXBD4411 ISOSMART chipset is designed to control the gates of two Power MOSFETs or Power IGBTs that are connected in a halfbridge (phase-leg) configuration for driving multiple-phase motors, or used in applications that require half-bridge power circuits. The IXBD4410/IXBD4411 is a full-feature chipset consisting of two 16-Pin DIP or SO devices interfaced and isolated by two small-signal ferrite pulse transformers. The small-signal transformers provide greater than 1200 V isolation.

Even with commutating noise ambients greater than ±50 V/ns and up to 1200 V potentials, this chipset establishes error-free two-way communications between the system ground-reference IXBD4410 and the inverter outputreference IXBD4411. They incorporate undervoltage V_DD or V_EElockout and overcurrent or desaturation shutdown to protect the IGBT or Power MOSFET devices from damage.

The chipset provides the necessary gate drive signals to fully control the grounded-source low-side power device as well as the floating-source high-side power device. Additionally, the IXBD4410/4411 chipset provides a negative-going, off-state gate drive signal for improved turn-off of IGBTs or Power MOSFETs and a system logiccompatible status fault output FLT to indicate overcurrent or desaturation, and undervoltage V_DD or V_EE. During a status fault, both chipset keep their respective gate drive outputs off; at V_EE.

IXBD4411 Maximum Ratings

V_DD/V_EE Supply Voltage . . . . . . . . . . . . . . . . . . -0.5 ... 24
V_in   Input Voltage (INH, INL)  . . . . . . . . . .-0.5...V_DD +0.5
Iin Input Current (INL, INH, IM)  . . . . . . . . . . . . . . . ..±10
I_o (rev) Peak Reverse Output Current (OUT)  . . . . . . . . .2
P_D Maximum Power Dissipation (T_A = 25° C) . . . . . . 600
P_D T_C = 25° C (16-Pin SOIC)  . . . . . . . . . . . . . . . . . . . 10
T_A Operating Ambient Temperature  . . . . . . . . . .-40 ... 85
T_JM Maximum Junction Temperature  . . . . . . . . . . . . . 150
T_stg Storage Temperature Range  . . . . . . . . . . .-55 ... 150
T_L Lead Soldering Temperature for  . . . . . . . . . . .10 s 300
R_{thJA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .}1.67
R_thJC (16-Pin SOIC) . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

IXBD4411 Features

·1200 V or greater low-to-high side isolation.
·Drives Power Systems Operating on up to 575 V AC mains
·dv/dt immunity of greater than ±50V/ns
·Proprietary low-to-high side level translation and communication
·On-chip negative gate-drive supply to ensure Power MOSFET or IGBT turn-off and to prevent gate noise interference
·5 V logic compatible HCMOS inputs with hysteresis
·Available in either the 16-Pin DIP or the 16-Pin wide-body, small-outline plastic package
·20 ns switching time with 1000 pF load; 100 ns switching time with 10,000 pF load
·100 ns propagation delay time
·2 A peak output drive capability
·Self shut-down of output in response to over-current or short-circuit
·Under-voltage and over-voltage VDD lockout protection
·Protection from cross conduction of the half bridge
·Logic compatible fault indication from both low and high-side driver

IXBD4411 Typical Application

·1- or 3-Phase Motor Controls
·Switch Mode Power Supplies (SMPS)
·Uninterruptible Power Supplies (UPS)
·Induction Heating and Welding Systems
·Switching Amplifiers
·General Power Conversion Circuits

IXBD4411 Connection Diagram

IXBD4411PI Parameters

Technical/Catalog Information	IXBD4411PI
Vendor	IXYS
Category	Integrated Circuits (ICs)
Configuration	High-Side
Voltage - Supply	10 V ~ 20 V
Current - Peak	2A
Delay Time	110ns
Package / Case	16-DIP
Packaging	Tube
Number of Outputs	1
Input Type	Non-Inverting
Number of Configurations	1
Operating Temperature	-40°C ~ 85°C
High Side Voltage - Max (Bootstrap)	1200V
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	IXBD4411PI IXBD4411PI
