IXBF40N160

IGBT Transistors 40 Amps 1600V

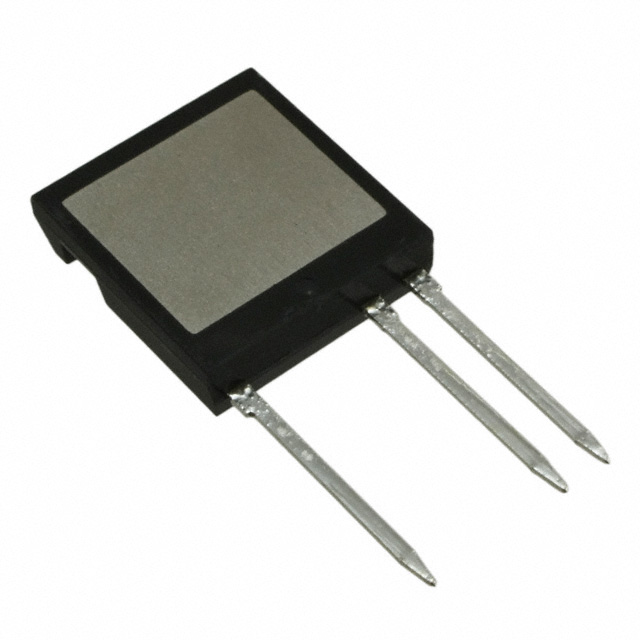

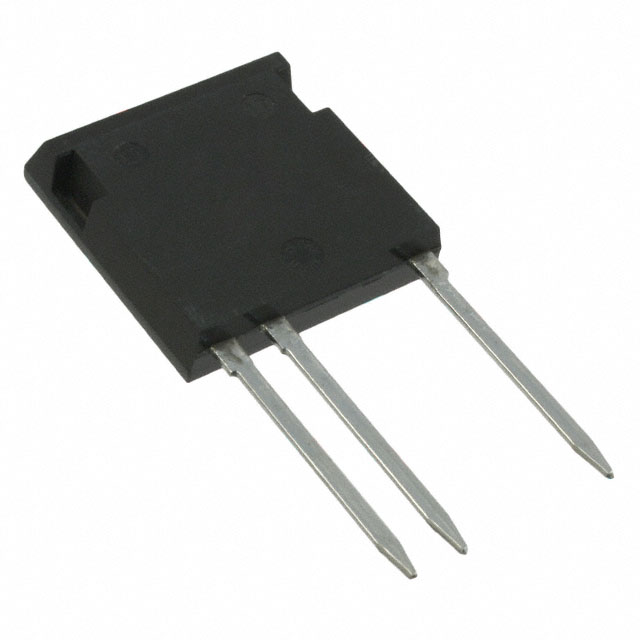

product image

IXBF40N160 Picture
SeekIC No. : 00143504 Detail

IXBF40N160: IGBT Transistors 40 Amps 1600V

floor Price/Ceiling Price

Part Number:
IXBF40N160
Mfg:
Ixys
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Configuration : Single Collector- Emitter Voltage VCEO Max : 1600 V
Collector-Emitter Saturation Voltage : 6.2 V Maximum Gate Emitter Voltage : 20 V
Maximum Operating Temperature : + 150 C Package / Case : ISOPLUS i4-PAC-3
Packaging : Tube

Description

Continuous Collector Current at 25 C :
Gate-Emitter Leakage Current :
Power Dissipation :
Maximum Gate Emitter Voltage : 20 V
Maximum Operating Temperature : + 150 C
Packaging : Tube
Configuration : Single
Collector- Emitter Voltage VCEO Max : 1600 V
Package / Case : ISOPLUS i4-PAC-3
Collector-Emitter Saturation Voltage : 6.2 V


Features:

• High Voltage BIMOSFETTM
- substitute for high voltage MOSFETs with significantly lower voltage drop
- fast switching for high frequency operation
- reverse conduction capability
• ISOPLUS i4-PACTM high voltage package
- isolated back surface
- enlarged creepage towards heatsink
- enlarged creepage between high voltage pins
- application friendly pinout
- high reliability
- industry standard outline



Application

• switched mode power supplies
• DC-DC converters
• resonant converters
• lamp ballasts
• laser generators, x ray generators



Specifications

Symbol Conditions Maximum Ratings
VCES TVJ = 25 to 150     IXBF 40N140
                                   IXBF 40N160
1400
1600
V
V
VGES   ±20 V
IC25
IC90
TC = 25
TC= 90
28
16
A
A
ICM VGE = 15/0 V; RG = 22 ; TVJ = 125
RBSOA, Clamped inductive load; L = 100 H
40 A
VCEK 0.8VCES
Ptot TC = 25 250 W



Parameters:

Technical/Catalog InformationIXBF40N160
VendorIXYS
CategoryDiscrete Semiconductor Products
Input TypeStandard
Voltage - Collector Emitter Breakdown (Max)1600V
Current - Collector (Ic) (Max)28A
Vce(on) (Max) @ Vge, Ic7.1V @ 15V, 20A
Power - Max250W
Mounting TypeThrough Hole
Package / CaseISOPLUS i4-PAC?
Packaging*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names IXBF40N160
IXBF40N160
