HGT1S11N120CNS, HGT1S12N60A4DS, HGT1S12N60A4S

Table of contents:
Info of HGT1S11N120CNS
Info of HGT1S12N60A4DS
Info of HGT1S12N60A4S

HGT1S11N120CNS, HGT1S12N60A4DS, HGT1S12N60A4S Selling Leads, Datasheet

MFG:Fairchild Semiconductor Category:Discrete Semiconductor Products Package Cooled:N/A D/C:TO

HGT1S11N120CNS, HGT1S12N60A4DS, HGT1S12N60A4S Datasheet download

Five Points

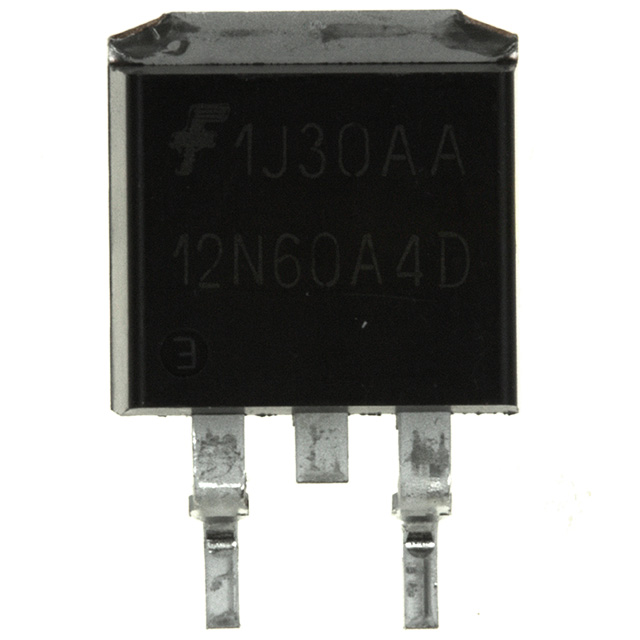

Part Number: HGT1S12N60A4DS

Category: Discrete Semiconductor Products

MFG: Fairchild Semiconductor

Package Cooled: N/A

D/C: TO

Description: IGBT SMPS N-CH 600V D2PAK

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

HGT1S11N120CNS General Description

The HGTG11N120CN, HGTP11N120CN, and HGT1S11N120CNS are Non-Punch Through (NPT) IGBT designs. They are new members of the MOS gated high voltage switching IGBT family. IGBTs combine the best features of MOSFETs and bipolar transistors. This device has the high input impedance of a MOSFET and the low onstate conduction loss of a bipolar transistor.

The IGBT is ideal for many high voltage switching applications operating at moderate frequencies where low conduction losses are essential, such as: AC and DC motor controls, power supplies and drivers for solenoids, relays and contactors.

Formerly Developmental Type TA49291.

HGT1S11N120CNS Maximum Ratings

Collector to Emitter Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .BVCES 1200 V
Collector Current Continuous
At TC= 25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IC25 43 A
At TC= 110. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IC110 22A
Collector Current Pulsed (Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ICM 80 A
Gate to Emitter Voltage Continuous. . . . . . . . . . . . . . . . . . . . . . . . . . . . . VGES ±20 V
Gate to Emitter Voltage Pulsed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..VGEM ±30 V
Switching Safe Operating Area at TJ= 150 (Figure 2) . . . . . . . . .SSOA 55A at 1200V
Power Dissipation Total at TC= 25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . PD 298 W
Power Dissipation Derating TC> 25 . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . .2.38 W/
Operating and Storage Junction Temperature Range . . . . . . . . . TJ, TSTG -55 to 150
Maximum Lead Temperature for Soldering . . . . . . . . . . . . . . . . . . . . . . . . . . . TL 260
Short Circuit Withstand Time (Note 2) at VGE= 15V . . . . . . . . . . . . . . . . . . . . . tSC 8µs
Short Circuit Withstand Time (Note 2) at VGE= 12V . . . . . . . . . . . . . . . . . . . ..tSC 15µs

HGT1S11N120CNS Features

• 43A, 1200V, TC = 25oC
• 1200V Switching SOA Capability
• Typical Fall Time. . . . . . . . . . . . . . . . 340ns at TJ = 150oC
• Short Circuit Rating
• Low Conduction Loss
• Avalanche Rated
• Thermal Impedance SPICE Model Temperature Compensating SABER™ Model www.intersil.com
• Related Literature
- TB334 "Guidelines for Soldering Surface Mount Components to PC Boards"

HGT1S11N120CNS Connection Diagram

HGT1S12N60A4DS Parameters

Technical/Catalog Information	HGT1S12N60A4DS
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Input Type	Standard
Voltage - Collector Emitter Breakdown (Max)	600V
Current - Collector (Ic) (Max)	54A
Vce(on) (Max) @ Vge, Ic	2.7V @ 15V, 12A
Power - Max	167W
Mounting Type	Surface Mount
Package / Case	D²Pak, SMD-220, TO-263 (2 leads + tab)
Packaging	-
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	HGT1S12N60A4DS HGT1S12N60A4DS

HGT1S12N60A4DS Maximum Ratings

Collector to Emitter Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .BVCES
Collector Current Continuous
At TC = 25oC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IC25
At TC = 110oC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IC110
Collector Current Pulsed (Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ICM
Gate to Emitter Voltage Continuous. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VGES
Gate to Emitter Voltage Pulsed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .VGEM
Switching Safe Operating Area at TJ = 150oC, Figure 2 . . . . . . . . . . . . . . . . . . . . . . . . SSOA
Power Dissipation Total at TC = 25oC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PD
Power Dissipation Derating TC > 25oC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operating and Storage Junction Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . TJ, TSTG
Maximum Temperature for Soldering
Leads at 0.063in (1.6mm) from Case for 10s. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TL
Package Body for 10s, see Tech Brief 334. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Tpkg

HGT1S12N60A4DS Features

• >100kHz Operation . . . . . . . . . . . . . . . . . . . . . 390V, 12A
• 200kHz Operation . . . . . . . . . . . . . . . . . . . . . . . 390V, 9A
• 600V Switching SOA Capability
• Typical Fall Time. . . . . . . . . . . . . . . . . 70ns at TJ = 125oC
• Low Conduction Loss
• Temperature Compensating SABER™ Model
www.intersil.com
• Related Literature
- TB334 "Guidelines for Soldering Surface Mount
Components to PC Boards

HGT1S12N60A4S General Description

The HGTP12N60A4, HGTG12N60A4 and HGT1S12N60A4S are MOS gated high voltage switching devices combining the best features of MOSFETs and bipolar transistors. These devices have the high input impedance of a MOSFET and the low on-state conduction loss of a bipolar transistor. The much lower on-state voltage drop varies only moderately between 25 and 150.

This IGBT is ideal for many high voltage switching applications operating at high frequencies where low conduction losses are essential. This device has been optimized for high frequency switch mode power supplies.

Formerly Developmental Type TA49335.

HGT1S12N60A4S Maximum Ratings

Collector to Emitter Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .BV_CES 600 V
Collector Current Continuous At T_C = 25 . . . . . . . . . . . . . . . . . . . . . . . . . . . I_C25 54 A
Collector Current Continuous At T_C = 110 . . . . . . . . . . . . . . . . . . . . . . . . . I_C110 23 A
Collector Current Pulsed (Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I_CM 96 A
Gate to Emitter Voltage Continuous. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V_GES ±20 V
Gate to Emitter Voltage Pulsed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .V_GEM ±30 V
Switching Safe Operating Area at T_J = 150 (Figure 2) . . . . . . . . . . . SSOA 60A at 600V
Power Dissipation Total at T_C = 25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P_D 167 W
Power Dissipation Derating T_C > 25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.33 W/
Operating and Storage Junction Temperature Range . . . . . . . . . . . T_J, T_STG -55 to 150
Maximum Lead Temperature for Soldering
Leads at 0.063in (1.6mm) from Case for 10s. . . . . . . . . . . . . . . . . . . . . . . . . . . . T_L 300
Package Body for 10s, See Tech Brief 334 . . . . . . . . . . . . . . . . . . . . . . . . . . . .T_PKG 260

HGT1S12N60A4S Features

• >100kHz Operation at 390V, 12A
• 200kHz Operation at 390V, 9A
• 600V Switching SOA Capability
• Typical Fall Time. . . . . . . . . . . . . . . . . 70ns at T_J = 125
• Low Conduction Loss
• Temperature Compensating SABER Model
http://www.intersil.com
• Related Literature
- TB334 "Guidelines for Soldering Surface Mount
Components to PC Boards

HGT1S12N60A4S Connection Diagram
