SPW17N80C2, SPW17N80C3, SPW17N80S5

SPW17N80C2, SPW17N80C3, SPW17N80S5 Selling Leads, Datasheet

MFG:Infineon Technologies  Category:Discrete Semiconductor Products  Package Cooled:TO-247  D/C:08+

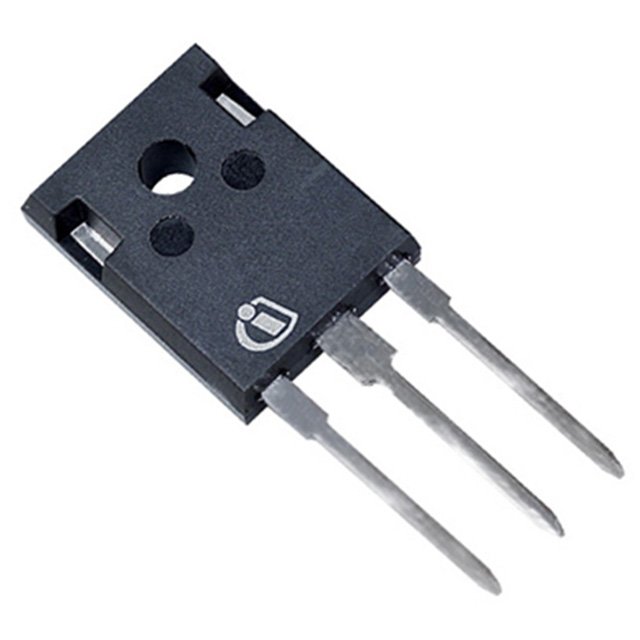

SPW17N80C3 Picture

SPW17N80C2, SPW17N80C3, SPW17N80S5 Datasheet download

Five Points

Part Number: SPW17N80C3

Category: Discrete Semiconductor Products

MFG: Infineon Technologies

Package Cooled: TO-247

D/C: 08+

Description: MOSFET N-CH 800V 17A TO-247
