MFG:Infineon Technologies (VA) Category:Discrete Semiconductor Products Package Cooled:SOT-252 D/C:3
SPD06N03, SPD06N80, SPD07N20 Datasheet download
Category: Discrete Semiconductor Products
MFG: Infineon Technologies (VA)
Package Cooled: SOT-252
D/C: 3

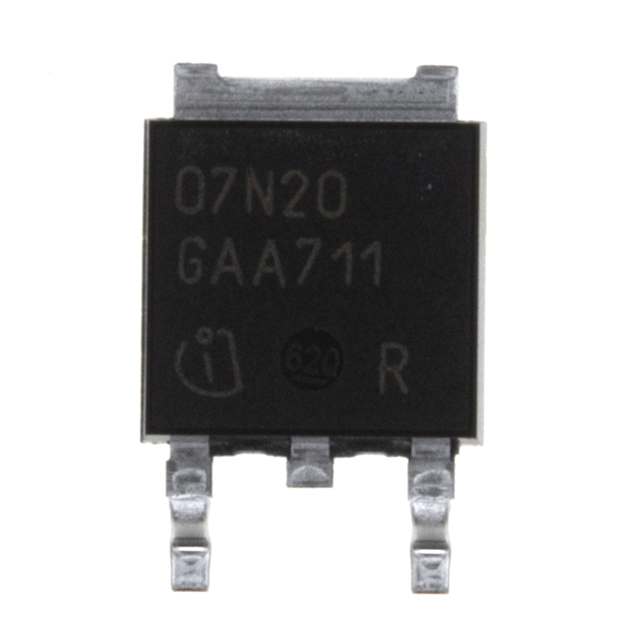

Description: MOSFET N-CH 200V 7A TO-252
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: SPD005G
File Size: 52325 KB
Manufacturer: ETC [ETC]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: SPD06N80C3
File Size: 260907 KB
Manufacturer: INFINEON [Infineon Technologies AG]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: SPD07N20
File Size: 122982 KB
Manufacturer: INFINEON [Infineon Technologies AG]
Download : Click here to Download
| Technical/Catalog Information | SPD07N20 |
| Vendor | Infineon Technologies (VA) |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | N-Channel |
| Drain to Source Voltage (Vdss) | 200V |
| Current - Continuous Drain (Id) @ 25° C | 7A |
| Rds On (Max) @ Id, Vgs | 400 mOhm @ 4.5A, 10V |
| Input Capacitance (Ciss) @ Vds | 530pF @ 25V |
| Power - Max | 40W |
| Packaging | Digi-Reel? |
| Gate Charge (Qg) @ Vgs | 31.5nC @ 10V |
| Package / Case | DPak, SC-63, TO-252 (2 leads+tab) |
| FET Feature | Standard |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | SPD07N20 SPD07N20 SPD07N20INDKR ND SPD07N20INDKRND SPD07N20INDKR |
| Parameter | Symbol | Value | Unit |
| Continuous drain current TC = 25 °C TC = 100 °C |
ID | 7 4.5 |
A |
| Pulsed drain current TC = 25 °C |
ID puls | 28 | |
| Avalanche energy, single pulse ID =7A, VDD = 50 V, RGS = 25 |
EAS | 120 | mJ |
| Repetitive avalanche energy, limited by Tjmax | EAR | 4 | |
| Reverse diode dv/dt IS =7 A, VDS =160V, di/dt = 200 A/s, Tjmax = 175 °C |
dv/dt | 6 | kV/s |
| Gate source voltage | VGS | ±20 | V |
| Power dissipation TC = 25 °C |
Ptot | 40 | W |
| Operating and storage temperature | Tj , Tstg | -55... +175 | °C |
| IEC climatic category; DIN IEC 68-1 | 55/175/56 |
