SPD03N60S5, SPD04N50C3, SPD04N60

Table of contents:
Info of SPD03N60S5
Info of SPD04N50C3
Info of SPD04N60

SPD03N60S5, SPD04N50C3, SPD04N60 Selling Leads, Datasheet

MFG:Infineon Technologies (VA) Category:Discrete Semiconductor Products Package Cooled:P-TO252-3-1 D/C:07+

SPD03N60S5, SPD04N50C3, SPD04N60 Datasheet download

Five Points

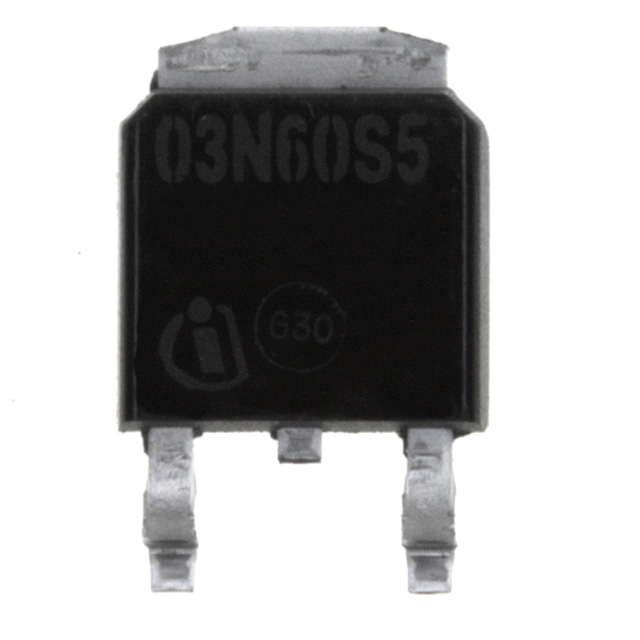

Part Number: SPD03N60S5

Category: Discrete Semiconductor Products

MFG: Infineon Technologies (VA)

Package Cooled: P-TO252-3-1

D/C: 07+

Description: MOSFET N-CH 560V 4.5A DPAK

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

SPD03N60S5 Parameters

Technical/Catalog Information	SPD03N60S5
Vendor	Infineon Technologies
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	600V
Current - Continuous Drain (Id) @ 25° C	3.2A
Rds On (Max) @ Id, Vgs	1.4 Ohm @ 2A, 10V
Input Capacitance (Ciss) @ Vds	420pF @ 25V
Power - Max	38W
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	16nC @ 10V
Package / Case	DPak, SC-63, TO-252 (2 leads+tab)
FET Feature	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	SPD03N60S5 SPD03N60S5 SPD03N60S5INTR ND SPD03N60S5INTRND SPD03N60S5INTR

SPD03N60S5 Maximum Ratings

Parameter	Symbol	Value	Unit
Continuous drain current T_C = 25 °C T_C= 100 °C	I_D	3.2 2	A
Pulsed drain current, t_p limited by T_jmax	I_D _puls	5.7	A
Avalanche energy, single pulse I_D=2.4A, V_DD=50V	E_AS	100	mJ
Avalanche energy, repetitive t_AR limited by T_jmax¹) I_D=3.2A, V_DD=50V	E_AR	0.2	mJ
Avalanche current, repetitive t_AR limited by T_jmax	I_AR	3.2	A
Gate source voltage static	V_GS	±20	V
Gate source voltage AC (f >1Hz)	V_GS	±30	V
Power dissipation, T_C = 25°C	P_tot	38	W
Operating and storage temperature	T_j, T_stg	-55...+150	°C
Drain Source voltage slope V_DS = 480 V, I_D = 3.2A, T_j = 125 °C	dv/dt	20	V/ns

1 Repetitve avalanche causes additional power losses that can be calculated as P_AV=E_AR*f.

SPD03N60S5 Features

• New revolutionary high voltage technology
• Ultra low gate charge
• Periodic avalanche rated
• Extreme dv/dt rated
• Ultra low effective capacitances
• Improved transconductance

SPD04N50C3 Parameters

Technical/Catalog Information	SPD04N50C3
Vendor	Infineon Technologies (VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	560V
Current - Continuous Drain (Id) @ 25° C	4.5A
Rds On (Max) @ Id, Vgs	950 mOhm @ 2.8A, 10V
Input Capacitance (Ciss) @ Vds	470pF @ 25V
Power - Max	50W
Packaging	Cut Tape (CT)
Gate Charge (Qg) @ Vgs	22nC @ 10V
Package / Case	DPak, SC-63, TO-252 (2 leads+tab)
FET Feature	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	SPD04N50C3 SPD04N50C3 SPD04N50C3INCT ND SPD04N50C3INCTND SPD04N50C3INCT

SPD04N50C3 Maximum Ratings

Parameter	Symbol	Value	Unit
Continuous drain current T_C = 25 °C T_C= 100 °C	I_D	4.5 2.8	A
Pulsed drain current, t_p limited by T_jmax	I_D _puls	13.5	A
Avalanche energy, single pulse I_D=3.4A, V_DD=50V	E_AS	130	mJ
Avalanche energy, repetitive t_AR limited by T_jmax¹) I_D=4.5A, V_DD=50V	E_AR	0.4	mJ
Avalanche current, repetitive t_AR limited by T_jmax	I_AR	4.5	A
Gate source voltage	V_GS	±20	V
Gate source voltage AC (f >1Hz)	V_GS	±30	V
Power dissipation, T_C = 25°C	P_tot	50	W
Operating and storage temperature	T_j, T_stg	-55...+150	°C
Drain Source voltage slope V_DS = 400 V, I_D = 4.5 A, T_j = 125 °C	dv/dt	tbd	V/ns

1 Repetitve avalanche causes additional power losses that can be calculated as P_AV=E_AR*f.

SPD04N50C3 Features

• New revolutionary high voltage technology
• Ultra low gate charge
• Periodic avalanche rated
• Extreme dv/dt rated
• Ultra low effective capacitances
• Improved transconductance
