SPD04N80C3, SPD06N60C3, SPD06N80C3

Table of contents:
Info of SPD04N80C3
Info of SPD06N60C3
Info of SPD06N80C3

SPD04N80C3, SPD06N60C3, SPD06N80C3 Selling Leads, Datasheet

MFG:Infineon Technologies Category:Discrete Semiconductor Products Package Cooled:P-TO252 D/C:08+

SPD04N80C3, SPD06N60C3, SPD06N80C3 Datasheet download

Five Points

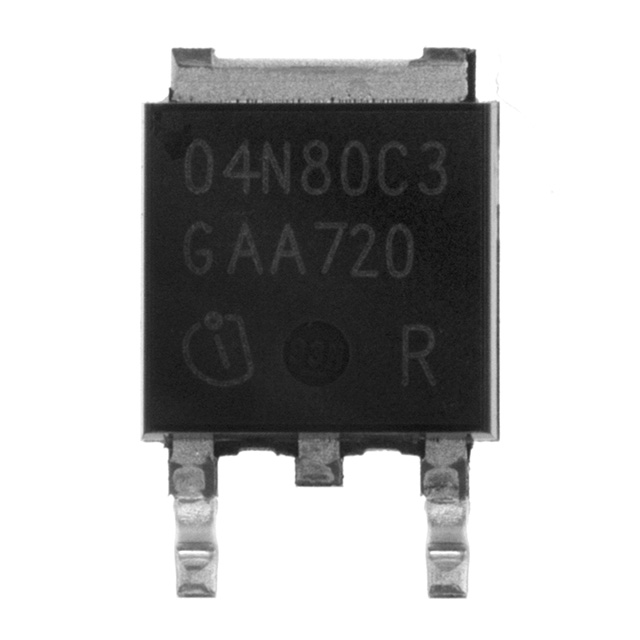

Part Number: SPD04N80C3

Category: Discrete Semiconductor Products

MFG: Infineon Technologies

Package Cooled: P-TO252

D/C: 08+

Description: MOSFET N-CH 800V 6A DPAK

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

SPD04N80C3 Parameters

Technical/Catalog Information	SPD04N80C3
Vendor	Infineon Technologies
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	800V
Current - Continuous Drain (Id) @ 25° C	4A
Rds On (Max) @ Id, Vgs	1.3 Ohm @ 2.5A, 10V
Input Capacitance (Ciss) @ Vds	570pF @ 25V
Power - Max	63W
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	26nC @ 10V
Package / Case	DPak, SC-63, TO-252 (2 leads+tab)
FET Feature	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	SPD04N80C3 SPD04N80C3 SPD04N80C3INTR ND SPD04N80C3INTRND SPD04N80C3INTR

SPD04N80C3 Maximum Ratings

Parameter	Symbol	Value	Unit
Continuous drain current T_C = 25 °C T_C= 100 °C	I_D	4 2.5	A
Pulsed drain current, t_p limited by T_jmax	I_D _puls	12	A
Avalanche energy, single pulse I_D=0.8A, V_DD=50V	E_AS	170	mJ
Avalanche energy, repetitive t_AR limited by T_jmax¹) I_D=4A, V_DD=50V	E_AR	0.1	mJ
Avalanche current, repetitive t_AR limited by T_jmax	I_AR	4	A
Gate source voltage	V_GS	±20	V
Power dissipation, T_C = 25°C	P_tot	63	W
Operating and storage temperature	T_j, T_stg	-55...+150	°C
Drain Source voltage slope V_DS =640V, I_D = 4 A, T_j = 125 °C	dv/dt	50	V/ns

1 Repetitve avalanche causes additional power losses that can be calculated as P_AV=E_AR*f.

SPD04N80C3 Features

• New revolutionary high voltage technology
• Ultra low gate charge
• Periodic avalanche rated
• Extreme dv/dt rated
• Ultra low effective capacitances
• Improved transconductance

SPD06N60C3 Parameters

Technical/Catalog Information	SPD06N60C3
Vendor	Infineon Technologies (VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	650V
Current - Continuous Drain (Id) @ 25° C	6.2A
Rds On (Max) @ Id, Vgs	750 mOhm @ 3.9A, 10V
Input Capacitance (Ciss) @ Vds	620pF @ 25V
Power - Max	74W
Packaging	Digi-Reel?
Gate Charge (Qg) @ Vgs	31nC @ 10V
Package / Case	DPak, SC-63, TO-252 (2 leads+tab)
FET Feature	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	SPD06N60C3 SPD06N60C3 SPD06N60C3INDKR ND SPD06N60C3INDKRND SPD06N60C3INDKR

SPD06N80C3 Parameters

Technical/Catalog Information	SPD06N80C3
Vendor	Infineon Technologies
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	800V
Current - Continuous Drain (Id) @ 25° C	6A
Rds On (Max) @ Id, Vgs	900 mOhm @ 3.8A, 10V
Input Capacitance (Ciss) @ Vds	785pF @ 100V
Power - Max	83W
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	41nC @ 10V
Package / Case	DPak, SC-63, TO-252 (2 leads+tab)
FET Feature	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	SPD06N80C3 SPD06N80C3 SPD06N80C3INTR ND SPD06N80C3INTRND SPD06N80C3INTR

SPD06N80C3 Maximum Ratings

Parameter	Symbol	Value	Unit
Continuous drain current T_C = 25 °C T_C= 100 °C	I_D	6 3.8	A
Pulsed drain current, t_p limited by T_jmax	I_D _puls	18	A
Avalanche energy, single pulse I_D=1.2A, V_DD=50V	E_AS	230	mJ
Avalanche energy, repetitive t_AR limited by T_jmax¹) I_D=6A, V_DD=50V	E_AR	0.2	mJ
Avalanche current, repetitive t_AR limited by T_jmax	I_AR	6	A
Gate source voltage	V_GS	±20	V
Power dissipation, T_C = 25°C	P_tot	83	W
Operating and storage temperature	T_j, T_stg	-55...+150	°C
Drain Source voltage slope V_DS = 640 V, I_D =6 A, T_j = 125 °C	dv/dt	50	V/ns

1 Repetitve avalanche causes additional power losses that can be calculated as P_AV=E_AR*f.

SPD06N80C3 Features

• New revolutionary high voltage technology
• Worldwide best R_DS(on) in TO252
• Ultra low gate charge
• Periodic avalanche rated
• Extreme dv/dt rated
