SPD04N60C2, SPD04N60C3, SPD04N60S5 Datasheet download
Category: Discrete Semiconductor Products
MFG: Infineon Technologies (VA)
Package Cooled: .
D/C: TO

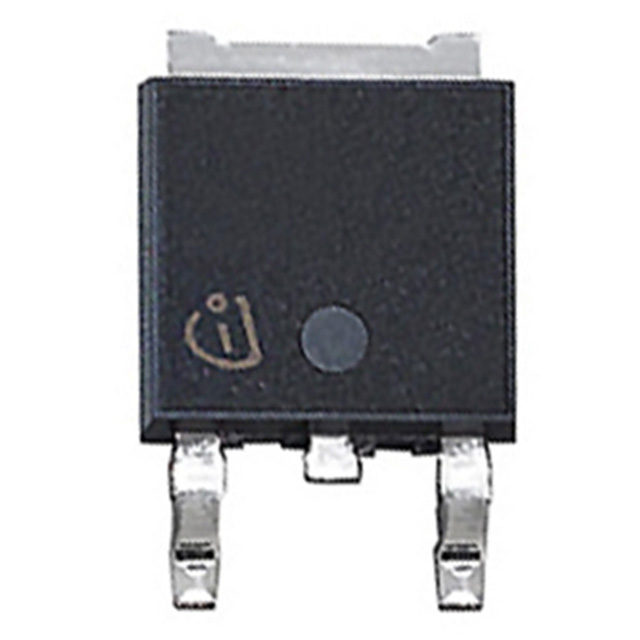

Description: MOSFET N-CH 600V 4.5A TO-252
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: SPD04N60C2
File Size: 147284 KB
Manufacturer: INFINEON [Infineon Technologies AG]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: SPD04N60C3
File Size: 294097 KB
Manufacturer: INFINEON [Infineon Technologies AG]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: SPD04N60S5
File Size: 274700 KB
Manufacturer: INFINEON [Infineon Technologies AG]
Download : Click here to Download
| Parameter | Symbol | Value | Unit |
| Continuous drain current TC = 25 °C TC = 100 °C |
ID | 4.5 2.8 |
A |
| Pulsed drain current, tp limited by Tjmax | ID puls | 9 | |
| Avalanche energy, single pulse ID=3.6A, VDD=50V |
EAS | 130 | mJ |
| Avalanche energy, repetitive tAR limited by Tjmax1) ID=4.5A, VDD=50V |
EAR | 0.4 | |
| Avalanche current, repetitive tAR limited by Tjmax | IAR | 4.5 | A |
| Reverse diode dv/dt IS=4.5A, VDS < VDD, di/dt=100A/s, Tjmax=150°C |
dv/dt | 6 | V/ns |
| Gate source voltage | VGS | ±20 | V |
| Power dissipation, TC = 25°C | Ptot | 50 | W |
| Operating and storage temperature | Tj , Tstg | -55...+150 | °C |
1 Repetitve avalanche causes additional power losses that can be calculated as PAV=EAR*f.
| Technical/Catalog Information | SPD04N60C3 |
| Vendor | Infineon Technologies |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | N-Channel |
| Drain to Source Voltage (Vdss) | 650V |
| Current - Continuous Drain (Id) @ 25° C | 4.5A |
| Rds On (Max) @ Id, Vgs | 950 mOhm @ 2.8A, 10V |
| Input Capacitance (Ciss) @ Vds | 490pF @ 25V |
| Power - Max | 50W |
| Packaging | Tape & Reel (TR) |
| Gate Charge (Qg) @ Vgs | 25nC @ 10V |
| Package / Case | DPak, SC-63, TO-252 (2 leads+tab) |
| FET Feature | Standard |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | SPD04N60C3 SPD04N60C3 SPD04N60C3INTR ND SPD04N60C3INTRND SPD04N60C3INTR |
| Parameter | Symbol | Value | Unit |
| Continuous drain current TC = 25 °C TC = 100 °C |
ID | 4.5 2.8 |
A |
| Pulsed drain current, tp limited by Tjmax | ID puls | 13.5 | |
| Avalanche energy, single pulse ID=3.4A, VDD=50V |
EAS | 130 | mJ |
| Avalanche energy, repetitive tAR limited by Tjmax1) ID=4.5A, VDD=50V |
EAR | 0.4 | |
| Avalanche current, repetitive tAR limited by Tjmax | IAR | 4.5 | A |
| Gate source voltage | VGS | ±20 | V |
| Gate source voltage AC (f >1Hz) | VGS | ±30 | |
| Power dissipation, TC = 25°C | Ptot | 50 | W |
| Operating and storage temperature | Tj , Tstg | -55...+150 | °C |
| Drain Source voltage slope VDS = 480 V, ID = 4.5 A, Tj = 125 °C |
dv/dt | 50 | V/ns |
1 Repetitve avalanche causes additional power losses that can be calculated as PAV=EAR*f.
| Technical/Catalog Information | SPD04N60S5 |
| Vendor | Infineon Technologies (VA) |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | N-Channel |
| Drain to Source Voltage (Vdss) | 600V |
| Current - Continuous Drain (Id) @ 25° C | 4.5A |
| Rds On (Max) @ Id, Vgs | 950 mOhm @ 2.8A, 10V |
| Input Capacitance (Ciss) @ Vds | 580pF @ 25V |
| Power - Max | 50W |
| Packaging | Digi-Reel? |
| Gate Charge (Qg) @ Vgs | 22.9nC @ 10V |
| Package / Case | DPak, SC-63, TO-252 (2 leads+tab) |
| FET Feature | Standard |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | SPD04N60S5 SPD04N60S5 SPD04N60S5INDKR ND SPD04N60S5INDKRND SPD04N60S5INDKR |
| Parameter | Symbol | Value | Unit |
| Continuous drain current TC = 25 °C TC = 100 °C |
ID | 4.5 2.8 |
A |
| Pulsed drain current, tp limited by Tjmax | ID puls | 9 | |
| Avalanche energy, single pulse ID=3.4A, VDD=50V |
EAS | 130 | mJ |
| Avalanche energy, repetitive tAR limited by Tjmax1) ID=4.5A, VDD=50V |
EAR | 0.4 | |
| Avalanche current, repetitive tAR limited by Tjmax | IAR | 4.5 | A |
| Gate source voltage | VGS | ±20 | V |
| Gate source voltage AC (f >1Hz) | VGS | ±30 | |
| Power dissipation, TC = 25°C | Ptot | 50 | W |
| Operating and storage temperature | Tj , Tstg | -55...+150 | °C |
| Drain Source voltage slope VDS = 480 V, ID = 4.5A, Tj = 125 °C |
dv/dt | 20 | V/ns |
1 Repetitve avalanche causes additional power losses that can be calculated as PAV=EAR*f.
