MFG:ON Semiconductor (VA) Category:Discrete Semiconductor Products Package Cooled:ONS D/C:05+/06+

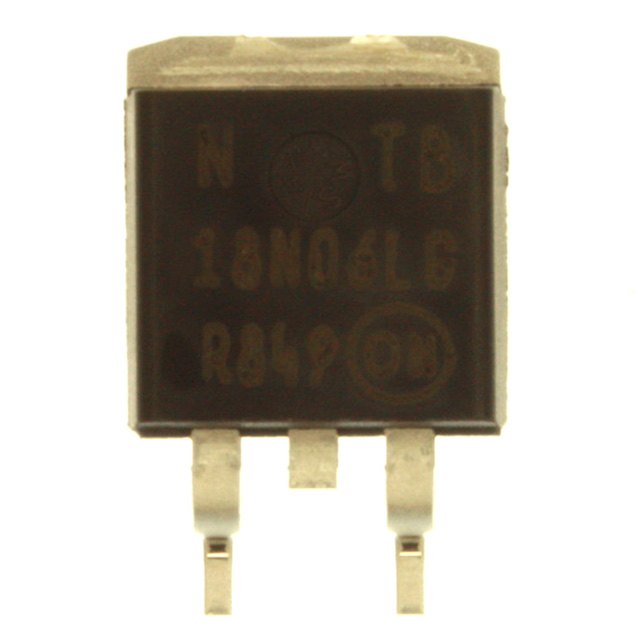

NTB18N06LG, NTB18N06LT4, NTB18N06LT4G Datasheet download
Category: Discrete Semiconductor Products
MFG: ON Semiconductor (VA)
Package Cooled: ONS
D/C: 05+/06+
Description: MOSFET N-CH 60V 15A D2PAK
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: NTB10N40
File Size: 72740 KB
Manufacturer: ON SEMICONDUCTOR
Download : Click here to Download
PDF/DataSheet Download
Datasheet: NTB18N06LT4
File Size: 94365 KB
Manufacturer: ONSEMI [ON Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: NTB18N06LT4G
File Size: 94365 KB
Manufacturer: ONSEMI [ON Semiconductor]
Download : Click here to Download
| Technical/Catalog Information | NTB18N06LG |
| Vendor | ON Semiconductor |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | N-Channel |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25° C | 15A |
| Rds On (Max) @ Id, Vgs | 100 mOhm @ 7.5A, 5V |
| Input Capacitance (Ciss) @ Vds | 440pF @ 25V |
| Power - Max | 48.4W |
| Packaging | Tube |
| Gate Charge (Qg) @ Vgs | 20nC @ 5V |
| Package / Case | D²Pak, SMD-220, TO-263 (2 leads + tab) |
| FET Feature | Logic Level Gate |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | NTB18N06LG NTB18N06LG |
| Technical/Catalog Information | NTB18N06LT4 |
| Vendor | ON Semiconductor |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | N-Channel |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25° C | 15A |
| Rds On (Max) @ Id, Vgs | 100 mOhm @ 7.5A, 5V |
| Input Capacitance (Ciss) @ Vds | 440pF @ 25V |
| Power - Max | 48.4W |
| Packaging | Tape & Reel (TR) |
| Gate Charge (Qg) @ Vgs | 20nC @ 5V |
| Package / Case | D²Pak, SMD-220, TO-263 (2 leads + tab) |
| FET Feature | Logic Level Gate |
| Drawing Number | * |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | NTB18N06LT4 NTB18N06LT4 NTB18N06LT4OS ND NTB18N06LT4OSND NTB18N06LT4OS |
| Technical/Catalog Information | NTB18N06LT4G |
| Vendor | ON Semiconductor (VA) |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | N-Channel |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25° C | 15A |
| Rds On (Max) @ Id, Vgs | 100 mOhm @ 7.5A, 5V |
| Input Capacitance (Ciss) @ Vds | 440pF @ 25V |
| Power - Max | 48.4W |
| Packaging | Digi-Reel? |
| Gate Charge (Qg) @ Vgs | 20nC @ 5V |
| Package / Case | D²Pak, SMD-220, TO-263 (2 leads + tab) |
| FET Feature | Logic Level Gate |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | NTB18N06LT4G NTB18N06LT4G NTB18N06LT4GOSDKR ND NTB18N06LT4GOSDKRND NTB18N06LT4GOSDKR |
