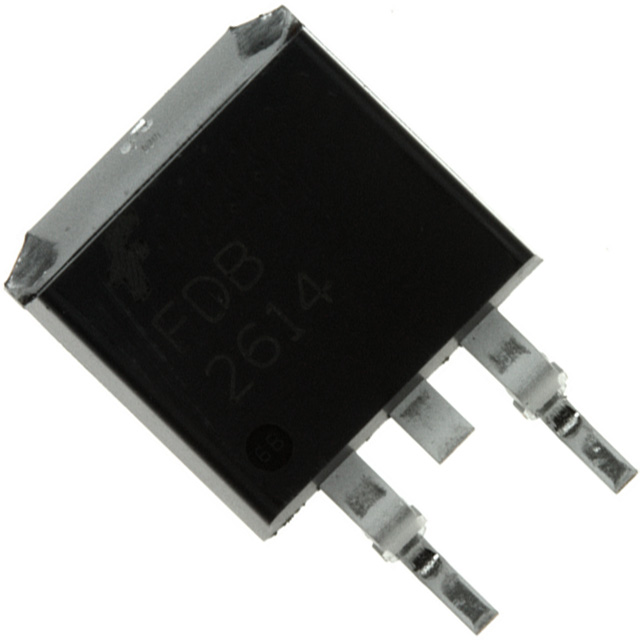

FDB2614, FDB2670, FDB2710 Datasheet download
Category: Discrete Semiconductor Products
MFG: Fairchild Semiconductor (VA)
Package Cooled: TO-263(D2PAK)
D/C: 06+
Description: MOSFET N-CH 250V 50A D2PAK
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: FDB035AN06A0
File Size: 242063 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FDB2670
File Size: 85660 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FDB035AN06A0
File Size: 242063 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
| Technical/Catalog Information | FDB2614 |
| Vendor | Fairchild Semiconductor (VA) |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | N-Channel |
| Drain to Source Voltage (Vdss) | 200V |
| Current - Continuous Drain (Id) @ 25° C | 62A |
| Rds On (Max) @ Id, Vgs | 27 mOhm @ 31A, 10V |
| Input Capacitance (Ciss) @ Vds | 7230pF @ 25V |
| Power - Max | 260W |
| Packaging | Digi-Reel? |
| Gate Charge (Qg) @ Vgs | 99nC @ 10V |
| Package / Case | D²Pak, SMD-220, TO-263 (2 leads + tab) |
| FET Feature | Standard |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FDB2614 FDB2614 FDB2614DKR ND FDB2614DKRND FDB2614DKR |
| Technical/Catalog Information | FDB2670 |
| Vendor | Fairchild Semiconductor |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | N-Channel |
| Drain to Source Voltage (Vdss) | 200V |
| Current - Continuous Drain (Id) @ 25° C | 19A |
| Rds On (Max) @ Id, Vgs | 130 mOhm @ 10A, 10V |
| Input Capacitance (Ciss) @ Vds | 1320pF @ 100V |
| Power - Max | 93W |
| Packaging | Tape & Reel (TR) |
| Gate Charge (Qg) @ Vgs | 38nC @ 10V |
| Package / Case | D²Pak, SMD-220, TO-263 (2 leads + tab) |
| FET Feature | Standard |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FDB2670 FDB2670 |
This N-Channel MOSFET has been designed specifically for switching on the primary side in the isolated DC/DC converter application. Any application requiring a 200V MOSFETs with low on-resistance and fast switching will benefit.
These MOSFETs feature faster switching and lower gate charge than other MOSFETs with comparable RDS(ON) specifications.
The result is a MOSFET that is easy and safer to drive (even at very high frequencies), and DC/DC power supply designs with higher overall efficiency.
| Symbol | Parameter | Ratings | Units |
| VDSS | Drain-Source Voltage | 200 | V |
| VGSS | Gate-Source Voltage |
± 20 | V |
| ID | Drain Current Continuous (Note 1) Pulsed (Note 1) |
19 | A A |
| 40 | |||
| PD | Total Power Dissipation @ TC = 25 Derate above 25 |
93 | W |
| 0.63 | W°/C | ||
| dv/dt | Peak Diode Recovery dv/dt (Note 3) | 3.2 | V/ns |
| TJ, TSTG | Operating and Storage Junction Temperature Range |
65 to +175 |
| Technical/Catalog Information | FDB2710 |
| Vendor | Fairchild Semiconductor (VA) |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | N-Channel |
| Drain to Source Voltage (Vdss) | 250V |
| Current - Continuous Drain (Id) @ 25° C | 50A |
| Rds On (Max) @ Id, Vgs | 42.5 mOhm @ 25A, 10V |
| Input Capacitance (Ciss) @ Vds | 7280pF @ 25V |
| Power - Max | 260W |
| Packaging | Digi-Reel? |
| Gate Charge (Qg) @ Vgs | 101nC @ 10V |
| Package / Case | D²Pak, SMD-220, TO-263 (2 leads + tab) |
| FET Feature | Standard |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FDB2710 FDB2710 FDB2710DKR ND FDB2710DKRND FDB2710DKR |
