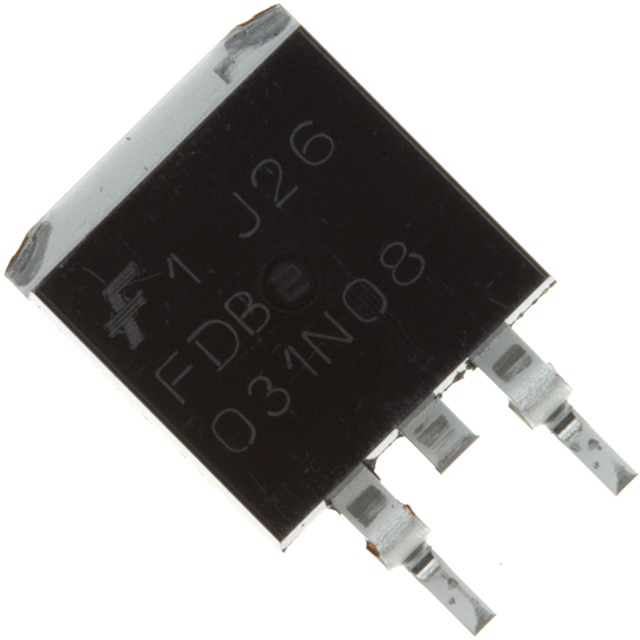

MFG:Fairchild Semiconductor Category:Discrete Semiconductor Products Package Cooled:TO-263(D2PAK) D/C:2010+
FDB031N08, FDB035AN06A0_NL, FDB035AN06A0-NL Datasheet download
Category: Discrete Semiconductor Products
MFG: Fairchild Semiconductor
Package Cooled: TO-263(D2PAK)
D/C: 2010+
Description: MOSFET N-CHAN 75V 120A D2-PAK
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: FDB035AN06A0
File Size: 242063 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FDB035AN06A0
File Size: 242063 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FDB035AN06A0
File Size: 242063 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
| Technical/Catalog Information | FDB031N08 |
| Vendor | Fairchild Semiconductor |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | N-Channel |
| Drain to Source Voltage (Vdss) | 75V |
| Current - Continuous Drain (Id) @ 25° C | 120A |
| Rds On (Max) @ Id, Vgs | 3.1 mOhm @ 75A, 10V |
| Input Capacitance (Ciss) @ Vds | 15160pF @ 25V |
| Power - Max | 375W |
| Packaging | Tape & Reel (TR) |
| Gate Charge (Qg) @ Vgs | 220nC @ 10V |
| Package / Case | D²Pak, SMD-220, TO-263 (2 leads + tab) |
| FET Feature | Standard |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FDB031N08 FDB031N08 FDB031N08TR ND FDB031N08TRND FDB031N08TR |
This N-Channel MOSFET is produced using Fairchild Semiconductor'sadcanced PowerTrench process that has been especiallytailored to minimize the on-state resistance and yetmaintain superior switching performance.
| Product | Product status | Eco Status | Pricing* | Package type | Leads | Packing method | Package Drawing | Package Marking Convention** |
|---|---|---|---|---|---|---|---|---|
| FDB031N08 | Full Production | RoHS Compliant | $4.00 | TO-263(D2PAK) | 2 | TAPE REEL | TS2A | Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &E&3 (3-Digit Date Code) Line 2: FDB Line 3: 031N08 |
| * Fairchild 1,000 piece Budgetary Pricing |
| ** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples |
Package marking information for product FDB031N08 is available. Click here for more information . |
