MFG:Fairchild Semiconductor (VA) Category:Discrete Semiconductor Products Package Cooled:TO-263(D2PAK) D/C:2010+
FDB047N10, FDB-05 F55, FDB050AN06A0_NL Datasheet download
Category: Discrete Semiconductor Products
MFG: Fairchild Semiconductor (VA)
Package Cooled: TO-263(D2PAK)
D/C: 2010+

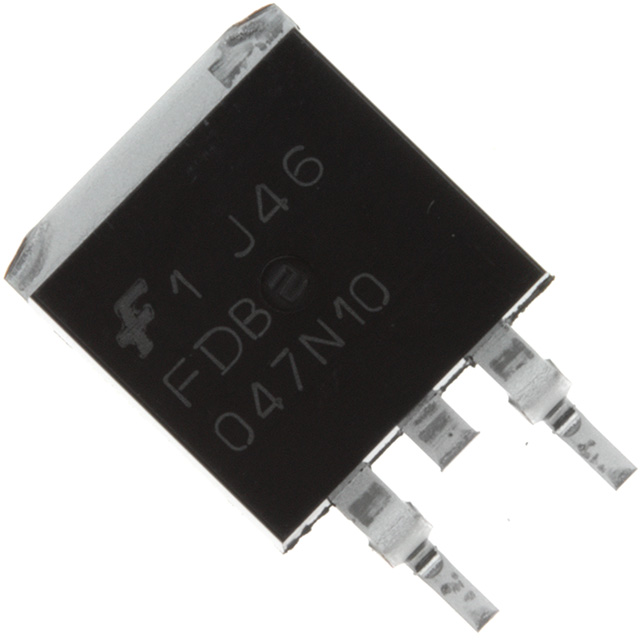

Description: MOSFET N-CH 100V 120A D2PAK
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: FDB035AN06A0
File Size: 242063 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FDB035AN06A0
File Size: 242063 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FDB035AN06A0
File Size: 242063 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
| Technical/Catalog Information | FDB047N10 |
| Vendor | Fairchild Semiconductor (VA) |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | N-Channel |
| Drain to Source Voltage (Vdss) | 100V |
| Current - Continuous Drain (Id) @ 25° C | 120A |
| Rds On (Max) @ Id, Vgs | 4.7 mOhm @ 75A, 10V |
| Input Capacitance (Ciss) @ Vds | 15265pF @ 25V |
| Power - Max | 375W |
| Packaging | Cut Tape (CT) |
| Gate Charge (Qg) @ Vgs | 210nC @ 10V |
| Package / Case | D²Pak, SMD-220, TO-263 (2 leads + tab) |
| FET Feature | Standard |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FDB047N10 FDB047N10 FDB047N10CT ND FDB047N10CTND FDB047N10CT |
This N-Channel MOSFET is producedusing Fairchild Semiconductor?sadvance PowerTrench process that has been especiallytailored to minimize the on-state resistance and yet maintainsuperior switching performance.
| Product | Product status | Eco Status | Pricing* | Package type | Leads | Packing method | Package Drawing | Package Marking Convention** |
|---|---|---|---|---|---|---|---|---|
| FDB047N10 | Full Production | RoHS Compliant | $4.34 | TO-263(D2PAK) | 3 | TAPE REEL | TS2A | Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &E&3 (3-Digit Date Code) Line 2: FDB Line 3: 047N10 |
| * Fairchild 1,000 piece Budgetary Pricing |
| ** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples |
Package marking information for product FDB047N10 is available. Click here for more information . |
