Part Number: FDB045AN08A0

Category: Discrete Semiconductor Products

MFG: Fairchild Semiconductor

Package Cooled: TO252

D/C: 2005

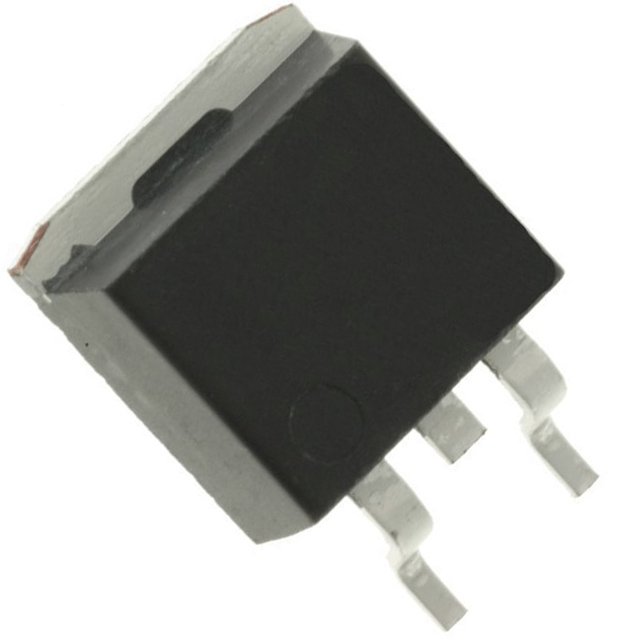

Description: MOSFET N-CH ULTRA TO-263AB

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

FDB045AN08A0 Parameters

Technical/Catalog Information	FDB045AN08A0
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	75V
Current - Continuous Drain (Id) @ 25° C	90A
Rds On (Max) @ Id, Vgs	4.5 mOhm @ 80A, 10V
Input Capacitance (Ciss) @ Vds	6600pF @ 25V
Power - Max	310W
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	138nC @ 10V
Package / Case	D²Pak, SMD-220, TO-263 (2 leads + tab)
FET Feature	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDB045AN08A0 FDB045AN08A0 FDB045AN08A0TR ND FDB045AN08A0TRND FDB045AN08A0TR

FDB045AN08A0 Maximum Ratings

Symbol	Parameter	Ratings	Units
V_DSS	Drain to Source Voltage	75	V
V_GS	Gate to Source Voltage	±20	V
I_D	Drain Current Continuous (Tc < 145, V_GS = 10V)	80	A
	Continuous (T_amb = 25 C, V_GS = 10V, with R_JA = 43/W)	19	A
	Pulsed	Figure 4	A
E_AS	Single Pulse Avalanche Energy (Note 1)	600	mJ
P_D	Power dissipation	310	W
P_D	Derate above 25	2.0	W/
T_J , T_STG	Operating and Storage Temperature	-55 to 175

FDB045AN08A0 Features

*r_DS(ON) = 3.9m (Typ.), V_GS = 10V, I_D = 80A
*Q_g (tot) = 92nC (Typ.), V_GS= 10V
* Low Miller Charge
* Low Qrr Body Diode
* UIS Capability (Single Pulse and Repetitive Pulse)
* Qualified to AEC Q101
Formerly developmental type 82684

FDB045AN08A0 Typical Application

* 42V Automotive Load Control
* Starter / Alternator Systems
* Electronic Power Steering Systems
* Electronic Valve Train Systems
* DC-DC converters and Off-line UPS
* Distributed Power Architectures and VRMs
* Primary Switch for 24V and 48V systems
