FDB10N20C, FDB13AN06A0, FDB13AN06AO

Table of contents:
Info of FDB10N20C
Info of FDB13AN06A0
Info of FDB13AN06AO

FDB10N20C, FDB13AN06A0, FDB13AN06AO Selling Leads, Datasheet

MFG:Fairchild Semiconductor (VA) Category:Discrete Semiconductor Products Package Cooled:TO-263 D/C:`06+(pb-free)

FDB10N20C, FDB13AN06A0, FDB13AN06AO Datasheet download

Five Points

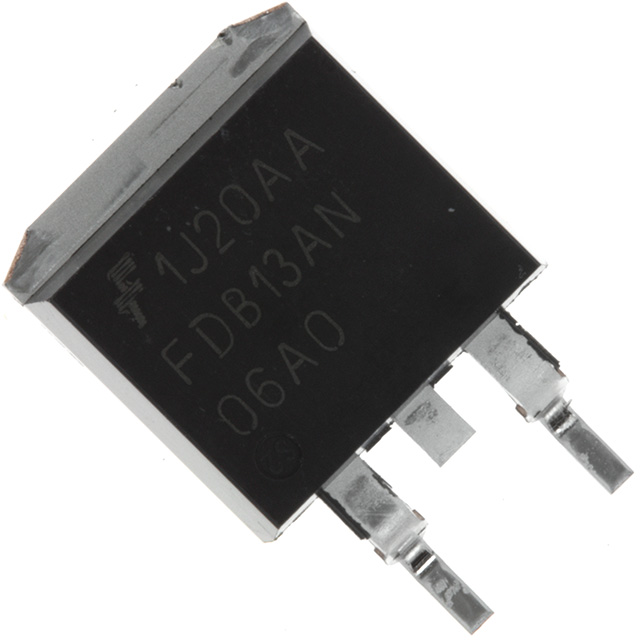

Part Number: FDB13AN06A0

Category: Discrete Semiconductor Products

MFG: Fairchild Semiconductor (VA)

Package Cooled: TO-263

D/C: `06+(pb-free)

Description: MOSFET N-CH 60V 62A TO-263AB

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

FDB13AN06A0 Parameters

Technical/Catalog Information	FDB13AN06A0
Vendor	Fairchild Semiconductor (VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25° C	62A
Rds On (Max) @ Id, Vgs	13.5 mOhm @ 62A, 10V
Input Capacitance (Ciss) @ Vds	1350pF @ 25V
Power - Max	115W
Packaging	Digi-Reel?
Gate Charge (Qg) @ Vgs	29nC @ 10V
Package / Case	D²Pak, SMD-220, TO-263 (2 leads + tab)
FET Feature	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDB13AN06A0 FDB13AN06A0 FDB13AN06A0DKR ND FDB13AN06A0DKRND FDB13AN06A0DKR

FDB13AN06A0 Maximum Ratings

Symbol	Parameter	Ratings	Units
V_DSS	Drain to Source Voltage	60	V
V_GS	Gate to Source Voltage	±20	V
I_D	Drain Current Continuous (T_C = 25, V_GS = 10V)	62	A
	Continuous (T_C = 100, V_GS = 10V)	44	A
	Continuous (T_A = 25, V_GS = 10V, R_JA = 43/W)	10.9	A
	Pulsed	Figure 4	A
E_AS	Single Pulse Avalanche Energy (Note 1)	56	mJ
P_D	Power dissipation	115	W
P_D	Derate above 25	0.77	W/
T_J , T_STG	Operating and Storage Temperature	-55 to 175

FDB13AN06A0 Features

*r_DS(ON) = 11.5m (Typ.), V_GS = 10V, I_D = 62A
*Q_g (tot) = 22nC (Typ.), V_GS = 10V
* Low Miller Charge
*Low Q_RR Body Diode
* UIS Capability (Single Pulse and Repetitive Pulse)
* Qualified to AEC Q101
Formerly developmental type 82555

FDB13AN06A0 Typical Application

* Motor / Body Load Control
* ABS Systems
* Powertrain Management
* Injection Systems
* DC-DC converters and Off-line UPS
* Distributed Power Architectures and VRMs
* Primary Switch for 12V and 24V systems
