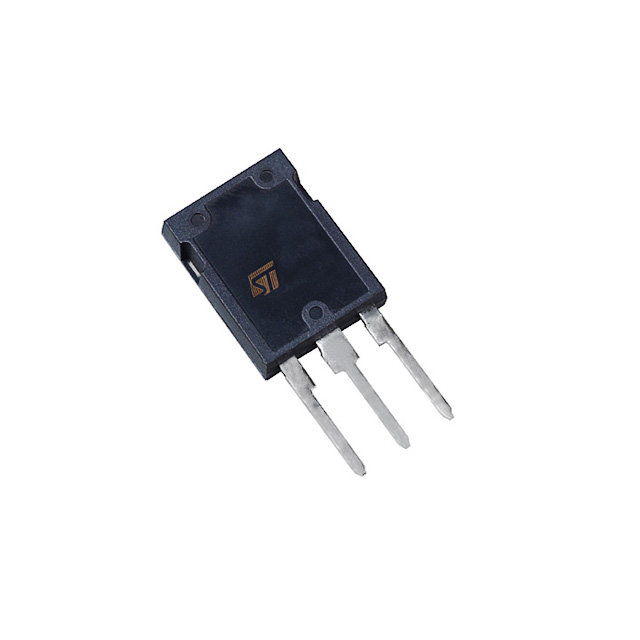

The SuperMESH™ series is obtained through an extreme optimization of ST's well established stripbased PowerMESH™ layout. In addition to pushing on-resistance significantly down, special care is taken to ensure a very good dv/dt capability for the most demanding applications. Such series complements ST full range of high voltage MOSFETs including revolutionary MDmesh™ products.
STY60NK30Z Maximum Ratings
Symbol
Parameter
Value
Unit
VDS
Drain-source Voltage (VGS = 0)
300
V
VDGR
Drain- gate Voltage (RGS = 20 k)
300
V
VGS
Gate-source Voltage
±30
V
ID
Drain Current (continuous) at Tc = 25
60
A
ID
Drain Current (continuous) at Tc = 100
37.5
A
IDM(.)
Drain Current (pulsed)
240
A
PTOT
Total Dissipation at Tc = 25
450
W
Derating Factor
3.57
W/
VESD(G-S)
Gate source ESD(HBM-C=100pF, R=1.5K)
6000
V
dv/dt(1)
Peak Diode Recovery voltage slope
4.5
V/ns
Tj Tstg
Operating Junction Temperature Storage Temperature
-55 to 150
(`)Pulse width limited by safe operating area (1)ISD 60A, di/dt 200A/s, VDD V(BR)DSS, Tj TJMAX.
STY60NK30Z Features
The built-in back-to-back Zener diodes have specifically been designed to enhance not only the device's ESD capability, but also to make them safely absorb possible voltage transients that may occasionally be applied from gate to source. In this respect the Zener voltage is appropriate to achieve an efficient and cost-effective intervention to protect the device's integrity. These integrated Zener diodes thus avoid the usage of external components.
STY60NK30Z Typical Application
`HIGH CURRENT, HIGH EFFICIENCY SWITCHING DC/DC CONVETERS FOR PLASMA TV's `IDEAL FOR OFF-LINE POWER SUPPLIES,ADAPTORS AND PFC
The MDmesh™ is a new revolutionary MOSFET technology that associates the Multiple Drain process with the Company's PowerMESH™ horizontal layout. The resulting product has an outstanding low on-resistance, impressively high dv/dt and excellent avalanche characteristics. The adoption of the Company's proprietary strip technique yields overall dynamic performance that is significantly better than that of similar competition's products.
STY60NM50 Maximum Ratings
Symbol
Parameter
Value
Unit
VDS
Drain-source Voltage (VGS = 0)
500
V
VDGR
Drain- gate Voltage (RGS = 20 k)
500
V
VGS
Gate-source Voltage
±30
V
ID
Drain Current (continuous) at Tc = 25
60
A
ID
Drain Current (continuous) at Tc = 100
37.8
A
IDM(`)
Drain Current (pulsed)
240
A
PTOT
Total Dissipation at Tc = 25
560
W
VESD(G-S)
Gate source ESD(HBM-C=100pF, R=15K)
6
KV
Derating Factor
4.5
W/°C
dv/dt(1)
Peak Diode Recovery voltage slope
15
V/ns
Tstg
Storage Temperature
-65 to 150
Tj
Max. Operating Junction Temperature
150
(`)Pulse width limited by safe operating area (1)ISD 60A, di/dt 400A/s, VDD V(ER)DSS, Tj TJMAX.
STY60NM50 Typical Application
The MDmesh™ family is very suitable for increasing power density of high voltage converters allowing system miniaturization and higher efficiencies.
