SPU08N05L, SPU08N10, SPU08P06P Datasheet download
Category: Discrete Semiconductor Products
MFG: Infineon Technologies
Package Cooled: 9800
D/C: TO

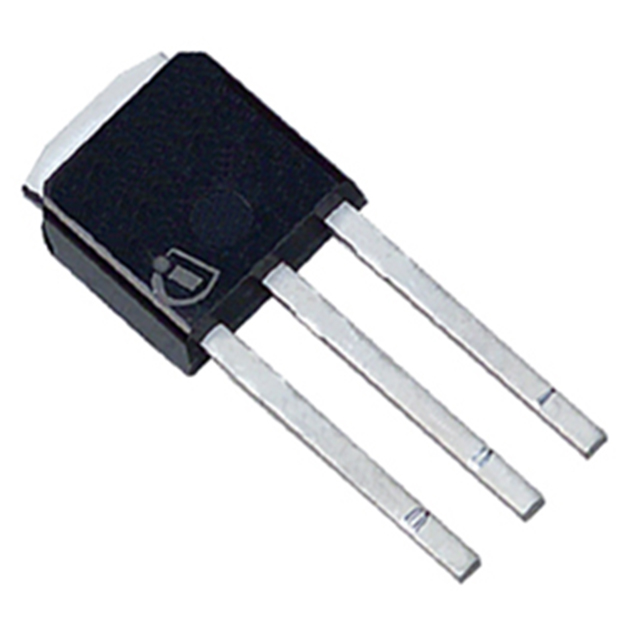

Description: MOSFET P-CH 60V 8.83A TO-251
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: SPU08N05L
File Size: 147266 KB
Manufacturer: Infineon
Download : Click here to Download
PDF/DataSheet Download
Datasheet: SPU08N10
File Size: 124832 KB
Manufacturer: INFINEON [Infineon Technologies AG]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: SPU08P06P
File Size: 116684 KB
Manufacturer: INFINEON [Infineon Technologies AG]
Download : Click here to Download
| Parameter |
Symbol |
Values |
Unit |
| Continuous drain current TC = 25 TC = 100 |
ID | 8.4 5.9 |
A |
| Pulsed drain current TC = 25 | IDpuls | 34 | |
| Avalanche energy, single pulse ID = 8.4 A, VDD = 25 V, RGS = 25 W L = 992 H, Tj = 25 |
EAS | 35 | mJ |
| Avalanche current,limited by Tjmax | IAR | 8.4 | A |
| Avalanche energy,periodic limited by Tjmax | EAR | 2.4 | mJ |
| Reverse diode dv/dt IS = 8.4 A, VDS = 40 V, diF/dt = 200 A/s Tjmax = 175 |
dv/dt | 6 | kV/s |
| Gate source voltage | VGS | ± 14 | V |
| Power dissipation TC = 25 | Ptot | 24 | W |
| Operating temperature | Tj | -55 ... + 175 | |
| Storage temperature | Tstg | -55 ... + 175 | |
| Thermal resistance, junction - case | RthJC | £ 6.25 | K/W |
| Thermal resistance, junction - ambient (PCB mount)** | RthJA | £ 50 | |
| Thermal resistance, junction - ambient | RthJA | £ 100 | |
| IEC climatic category, DIN IEC 68-1 | 55 / 175 / 56 |
| Technical/Catalog Information | SPU08P06P |
| Vendor | Infineon Technologies |
| Category | Discrete Semiconductor Products |
| Mounting Type | Through Hole |
| FET Polarity | P-Channel |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25° C | 8.83A |
| Rds On (Max) @ Id, Vgs | 300 mOhm @ 6.2A, 10V |
| Input Capacitance (Ciss) @ Vds | 420pF @ 25V |
| Power - Max | 42W |
| Packaging | Tube |
| Gate Charge (Qg) @ Vgs | 13nC @ 10V |
| Package / Case | IPak, TO-251, DPak, VPak (3 straight leads + tab) |
| FET Feature | Standard |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | SPU08P06P SPU08P06P SPU08P06PIN ND SPU08P06PINND SPU08P06PIN |
| Parameter | Symbol | Value | Unit |
| Continuous drain current TC = 25 °C TC = 100 °C |
ID | -8.8 -6.2 |
A |
| Pulsed drain current TC = 25 °C |
ID puls | -35.2 | |
| Avalanche energy, single pulse ID =-8.8A, VDD = -25 V, RGS = 25 |
EAS | 70 | mJ |
| Repetitive avalanche energy, limited by Tjmax | EAR | 4.2 | |
| Reverse diode dv/dt IS =-8.8 A, VDS =-48V, di/dt = 200 A/s, Tjmax = 175 °C |
dv/dt | 6 | kV/s |
| Gate source voltage | VGS | ±20 | V |
| Power dissipation TC = 25 °C |
Ptot | 42 | W |
| Operating and storage temperature | Tj , Tstg | -55... +175 | °C |
| IEC climatic category; DIN IEC 68-1 | 55/175/56 |
