BIC1422 DC-AC converter circuit

Published:2011/7/10 3:59:00 Author:chopper | Keyword: DC-AC, converter circuit

BIC1422 DC-AC converter circuit is shown as picture (View)

View full Circuit Diagram | Comments | Reading(1090)

CHT0818 Single-Chip Micro-Computer Integrated Circuit

Published:2011/7/9 1:30:00 Author:Robert | Keyword: Single-Chip, Micro-Computer, Integrated

CHT0818 Single-Chip Micro-Computer Integrated Circuit

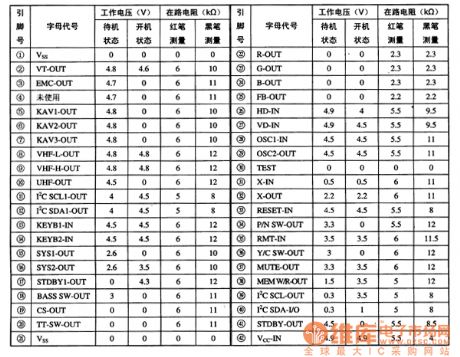

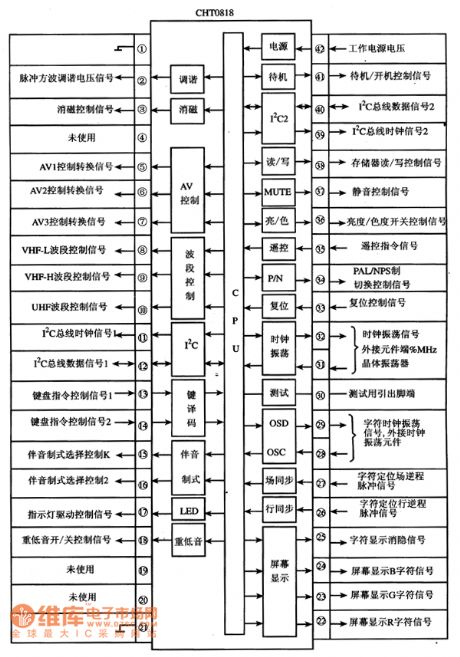

The CHT0818 is a single-chip micro-computer IC which is widely used in Changhong series large-screen color TV sets, such as the Changhong CH-10 cassette mechanism. 1.Its functional features. The CHt0818 IC's internal part is mainly made up of central processing unit (CPU), clock oscillation circuit, reset control circuit, I2C bus control circuit, key command decoding circuit, sound system control circuit, remote-control command signal processing circuit, degaussing control circuit, memory control circuit, screen display character generating and processing circuit and other some control and auxiliary function circuits and so on. Its internal circuit diagram and pin's function and signal flowing is shown in picture 1. The picture 1 shows the CHT0818 IC's internal circuit diagram and pin's function and signal flowing. 2.Its pin's function and data. The CHT0818 IC uses 42-pin dual package. Its pin's function is shown in picture 1 and its pin's letter code and data is listed in table 1. The table 1 shows the CHT0818 IC's pin's letter code and data. (View)

View full Circuit Diagram | Comments | Reading(463)

CHT0808 Micro-Computer Control Integrated Circuit

Published:2011/7/9 2:15:00 Author:Robert | Keyword: Micro-Computer, Control, Integrated

CHT0808 Micro-Computer Control Integrated Circuit

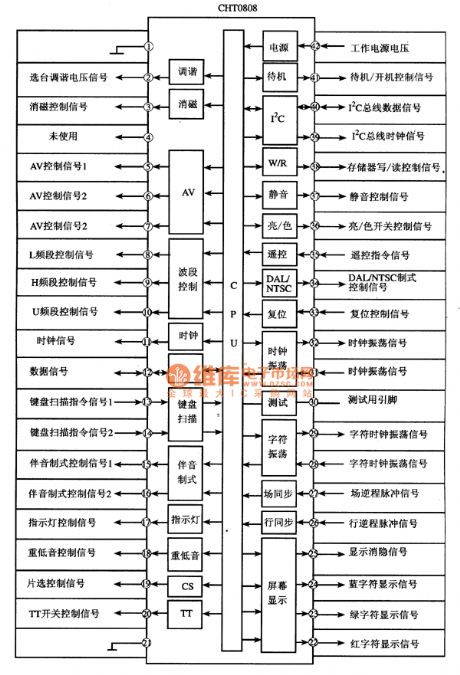

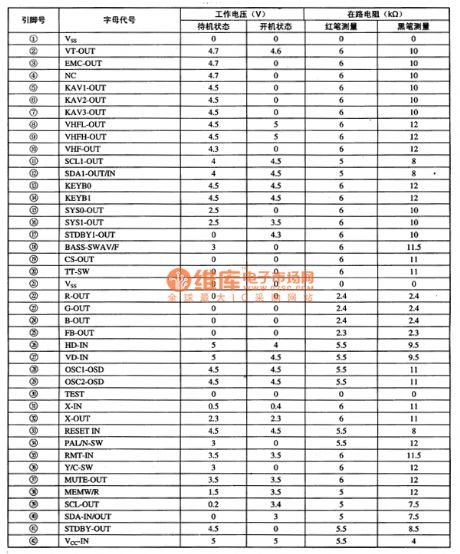

The CHT0808 is a master micro-computer control IC which is used in Changhong CH-10 cassette mechanism series large-screen color TV sets. The large-screen color TV sets which belong to the Changhong CH-10 cassette mechanism series and the derived types have: Double Red Happyness series: 2521FD, 2938FD, D2983, D2985, 2527FD, D2986, 2936FD, 2939FD, 2931FD, R2938D, D2983FD, RF29D18, 34D18 and so on. Century Fate series: 29SD83, 29SD85, 34SD18, 295D89 and so on. Golden Sun series: G2521, G2526, G2983, G3487, G3488 and so on. The CHT0808 IC uses 42-pin dual package. Its internal circuit diagram and pin's function and signal flowing is shown in picture 1 and its pin's letter code and data is listed in table 1. The picture 1 shows the CHT0808 IC's internal circuit diagram and pin's function and signal flowing. The table 1 shows the CHT0808 IC's pin's letter code and data. (View)

View full Circuit Diagram | Comments | Reading(501)

CHT0807 Single-Chip Micro-Computer Integrated Circuit

Published:2011/7/9 2:22:00 Author:Robert | Keyword: Single-Chip, Micro-Computer, Integrated

CHT0807 Single-Chip Micro-Computer Integrated Circuit

The CHT0807 is a single-chip micro-computer IC which is widely used in Changhong series large-screen color TV sets. The CHT0807 IC uses 42-pin dual inline package. Its pin's letter code and data is listed in table 1 and its internal circuit diagram and pin's function and signal flowing is shown in picture 1. The table 1 shows the CHT0807 IC's pin's letter code and data. The picture 1 shows the CHT0807 IC's internal circuit diagram and pin's function and signal flowing. (View)

View full Circuit Diagram | Comments | Reading(766)

CH52010 Display Control Micro-Computer Integrated Circuit

Published:2011/7/9 1:55:00 Author:Robert | Keyword: Display, Control, Micro-Computer, Integrated

CH52010 Display Control Micro-Computer Integrated Circuit

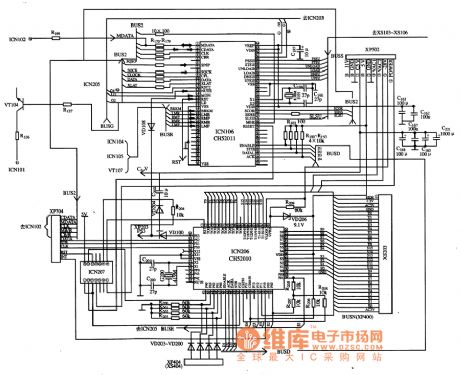

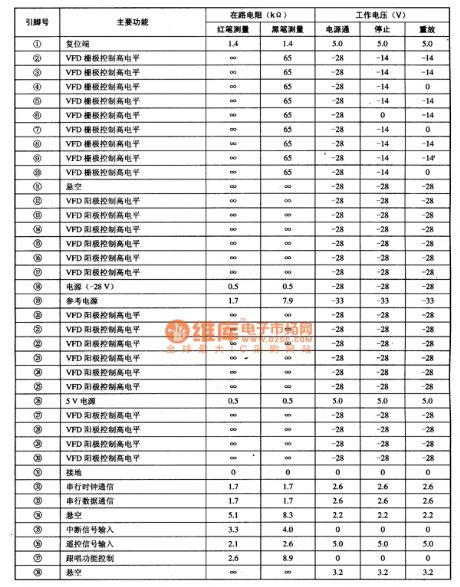

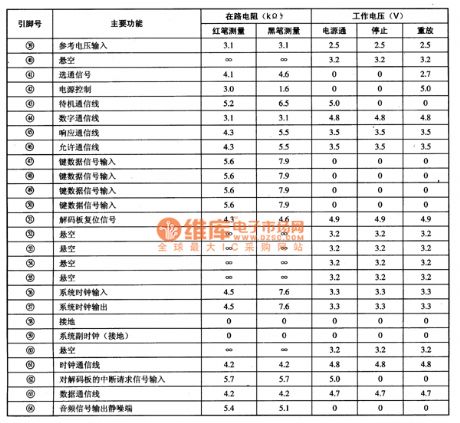

The CH52010 is a display control micro-computer IC which is widely used in Changhong series VCD players and so on. 1.Its functional features. The CH52010 IC is mainly used for receiving local-machine's keyboard scanning signals and then processing: OCD display control and front panel VFD display screen's all kinds of display control. 2.Its pin's function and data. The CH52010 IC uses 64-pin dual inline package and its pin's function and data is listed in table 1. The table 1 shows the CH52010 IC's pin's function and data. 3.Typical application circuit. The VFD display control typical application circuit composed of CH52010 IC is shown in picture 1. Note: The main conditions of CH52010's normally working is that the pin 26 should be connected with +5V power, pin 58 should be connected to ground, pin 56 and pin 57 should be connected to 4.19MHz start-up crystal. The picture 1 shows the CH52010 IC's typical application circuit. (View)

View full Circuit Diagram | Comments | Reading(1051)

DC Voltage Regulation Circuit of Single Pipe Amplifier Transistor

Published:2011/7/7 22:51:00 Author:Michel | Keyword: Single Pipe, Amplifier Transist, DC, Voltage Regulation Circuit

The DC voltage regulation circuit of single pipe amplifier transistor is shown as above.Welome to download the ciruit and the circuit is from www.dzsc.com. (View)

View full Circuit Diagram | Comments | Reading(528)

The basic application circuit of AAT3680

Published:2011/7/10 18:51:00 Author:TaoXi | Keyword: basic application

The basic application circuit of AAT3680
(View)

View full Circuit Diagram | Comments | Reading(495)

BQ2057 charger circuit uses the P-channel MOSFET design

Published:2011/7/10 18:52:00 Author:TaoXi | Keyword: charger, P-channel, MOSFET design

BQ2057 charger circuit uses the P-channel MOSFET design
(View)

View full Circuit Diagram | Comments | Reading(846)

Rate associated push-pull voltage converter circuit

Published:2011/7/10 18:54:00 Author:TaoXi | Keyword: Rate associated, push-pull, voltage converter

Figure:Rate associated push-pull voltage converter circuit (View)

View full Circuit Diagram | Comments | Reading(682)

Practical lithium ion battery charger circuit composed of the MAX846A

Published:2011/7/10 18:54:00 Author:TaoXi | Keyword: Practical, lithium ion battery, charger

Practical lithium ion battery charger circuit composed of the MAX846A
(View)

View full Circuit Diagram | Comments | Reading(784)

Bridge type voltage converter circuit

Published:2011/7/10 18:56:00 Author:TaoXi | Keyword: Bridge type, voltage converter

Figure:Bridge type voltage converter circuit (View)

View full Circuit Diagram | Comments | Reading(751)

TEA5170 -Switch power source thick film integrated circuit

Published:2011/7/10 6:02:00 Author:leo | Keyword: Switch power source , thick film

TEA5170 -Switch power source thick film integrated circuit
TEA5170 is a kind of switch power source thick film integrated circuit produced by Thomson Company which is widely used in Toshiba 2500XH, MCI5A, Samsung C56229Z, Kangyi 66mm, Mud an 64C1, Jinxing C6418, Feiyue FY7403, Xihu C2918 and other color television. 1.Function features:TEA5170 contains power supply control circuit, drive pulse circuit, oscillator circuit, difference signal processing circuit and other circuits. 2.Pin functions and data:TEA5170 pin functions and other related data are shown in the picture. (View)

View full Circuit Diagram | Comments | Reading(553)

Voltage converter circuit uses the RC link to produce the control frequency

Published:2011/7/10 18:58:00 Author:TaoXi | Keyword: Voltage converter, RC link, control frequency

Figure:Voltage converter circuit uses the RC link to produce the control frequency (View)

View full Circuit Diagram | Comments | Reading(705)

CXAl622 dual-audio power amplifier circuit

Published:2011/7/10 19:18:00 Author:leo | Keyword: Dual-audio, power amplifier

CXAl622 dual-audio power amplifier circuit

CXA1622 is a dual channel power amplifier integrated circuit produced by Sony Company in Japan which is widely used in low voltage recorder, walk man and computer stereo system.1. CXA1622 inner circuit diagram and pin functions:CXAl278N contains two similar power amplifier, record play back amplifier, electric volume control circuit and BTL stereo converting circuit. It uses 16-pin dual-line package. The inner circuit diagram of CXA1622 is shown in the picture 1.2. CXAl278N classic applying circuit is shown in the picture 2. (View)

View full Circuit Diagram | Comments | Reading(1575)

Pin arrangement circuit of the MAX846A

Published:2011/7/10 19:06:00 Author:TaoXi | Keyword: Pin, arrangement

Pin arrangement circuit of the MAX846A
(View)

View full Circuit Diagram | Comments | Reading(548)

LA3361 audio IC circuit

Published:2011/7/10 19:04:00 Author:TaoXi | Keyword: audio IC

The LA3361 audio IC circuit is as shown in the figure: (View)

View full Circuit Diagram | Comments | Reading(3748)

LA4160-Single chip record playback integrated circuit

Published:2011/7/10 18:40:00 Author:leo | Keyword: Single chip, record playback

LA4160-Single chip record playback integrated circuitLA4160 is a single chip record playback integrated circuit produced by Sanyo Company which is widely used in portable small recorder, read after recorder and other special recorder. 1.LA4160 inner circuit and pin functions:LA4160 inner circuit contains fronted amplifier, auto gain control circuit, power amplifier and AMACP circuit. Its inner circuit diagram is shown in the picture 1-1 whose advantages are high fronted gain, high output power and large auto gain coverage. 2.LA4160 main parameters:Limitations: When Ta=25℃, Vcc is 13 V and power consumption PD1 is 1.2 W, PD2 is 2.25W. (View)
