CHT0807 Single-Chip Micro-Computer Integrated Circuit

Published:2011/7/9 2:22:00 Author:Robert | Keyword: Single-Chip, Micro-Computer, Integrated | From:SeekIC

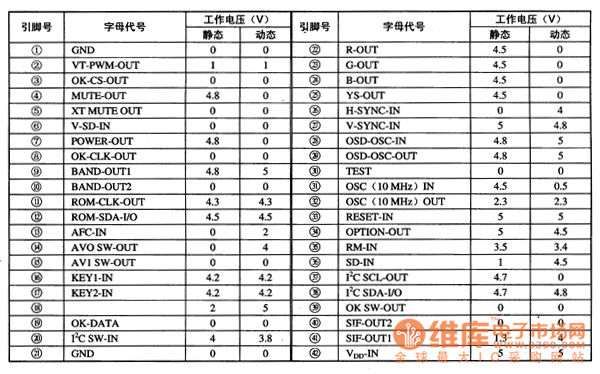

The CHT0807 is a single-chip micro-computer IC which is widely used in Changhong series large-screen color TV sets. The CHT0807 IC uses 42-pin dual inline package. Its pin's letter code and data is listed in table 1 and its internal circuit diagram and pin's function and signal flowing is shown in picture 1. The table 1 shows the CHT0807 IC's pin's letter code and data. The picture 1 shows the CHT0807 IC's internal circuit diagram and pin's function and signal flowing.
