CHT0808 Micro-Computer Control Integrated Circuit

Published:2011/7/9 2:15:00 Author:Robert | Keyword: Micro-Computer, Control, Integrated | From:SeekIC

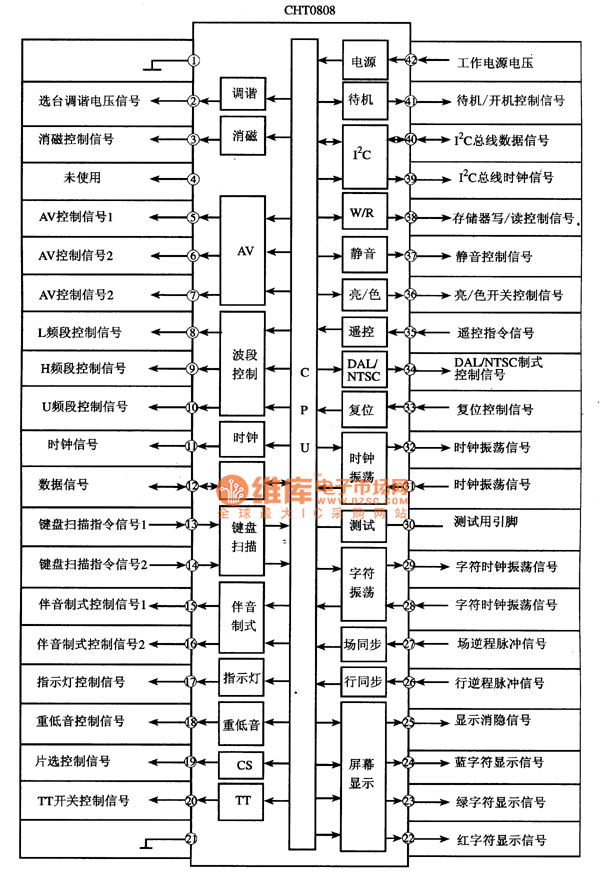

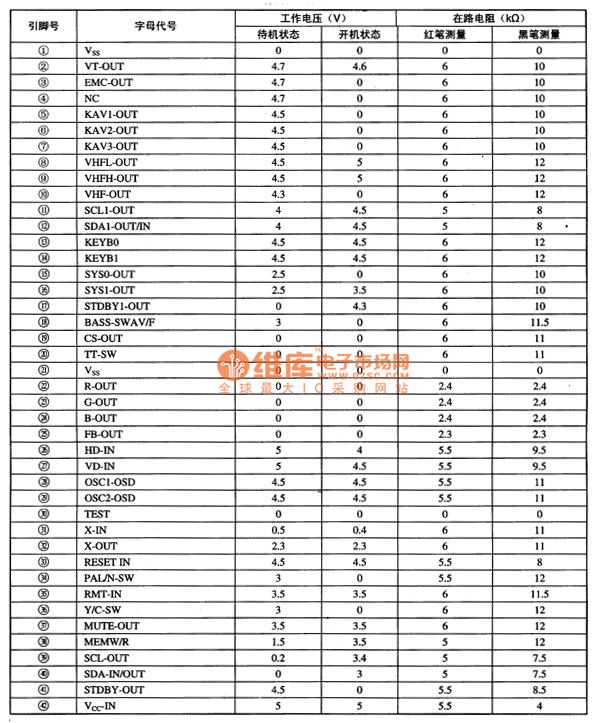

The CHT0808 is a master micro-computer control IC which is used in Changhong CH-10 cassette mechanism series large-screen color TV sets. The large-screen color TV sets which belong to the Changhong CH-10 cassette mechanism series and the derived types have: Double Red Happyness series: 2521FD, 2938FD, D2983, D2985, 2527FD, D2986, 2936FD, 2939FD, 2931FD, R2938D, D2983FD, RF29D18, 34D18 and so on. Century Fate series: 29SD83, 29SD85, 34SD18, 295D89 and so on. Golden Sun series: G2521, G2526, G2983, G3487, G3488 and so on. The CHT0808 IC uses 42-pin dual package. Its internal circuit diagram and pin's function and signal flowing is shown in picture 1 and its pin's letter code and data is listed in table 1. The picture 1 shows the CHT0808 IC's internal circuit diagram and pin's function and signal flowing. The table 1 shows the CHT0808 IC's pin's letter code and data.
