T8952BE, T89C5115, T89C5115-RATIM

Table of contents:
Info of T8952BE
Info of T89C5115
Info of T89C5115-RATIM

T8952BE, T89C5115, T89C5115-RATIM Selling Leads, Datasheet

MFG:Atmel Category:Integrated Circuits (ICs) Package Cooled:06+ D/C:08/09+

T8952BE, T89C5115, T89C5115-RATIM Datasheet download

Five Points

Part Number: T89C5115-RATIM

Category: Integrated Circuits (ICs)

MFG: Atmel

Package Cooled: 06+

D/C: 08/09+

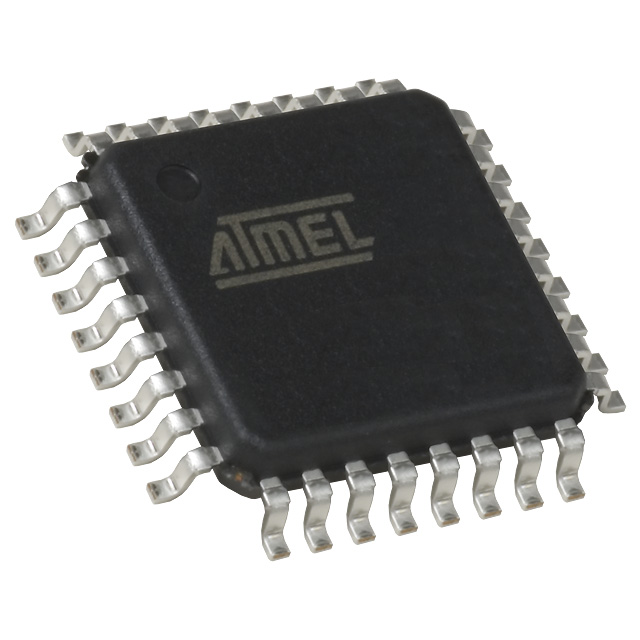

Description: IC 8051 MCU FLASH 16K 32VQFP

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

T89C5115 Parameters

T89C5115 Datasheet and Application Notes

T89C5115 Datasheet

T89C5115 General Description

Low-pin-count 8-bit Microcontroller with A/D Converter and 16K Bytes of Flash Memory We recommend to implement an external brown out to prevent any Flash/EEPROM corruption during power-on or power-off. Please refer to related application note: External Brown-out Protection for C51 Microcontrollers with Active High Reset Input

T89C5115 Maximum Ratings

AmbiantTemperatureUnderBias:
I=industrial....................................................-40to85
StorageTemperature.................................-65Cto+150
VoltageonV_CC fromV_SS .................................-0.5Vto+6V VoltageonAnyPinfromV_SS ....................-0.5VtoV +0.2V_CCPowerDissipation........................................................1W

T89C5115 Typical Application

T89C5115 Datasheet

T89C5115-RATIM Parameters

Technical/Catalog Information	T89C5115-RATIM
Vendor	Atmel
Category	Integrated Circuits (ICs)
Program Memory Size	16K x 8
RAM Size	512 x 8
Number of I /O	20
Package / Case	32-VQFP
Speed	40MHz
Controller Series	89C
Oscillator Type	Internal
Packaging	Tray
Program Memory Type	FLASH
EEPROM Size	2K x 8
Core Processor	8051
Data Converters	A/D 8x10b
Core Size	8-Bit
Operating Temperature	-40°C ~ 85°C
Connectivity	UART/USART
Peripherals	POR, PWM, WDT
Voltage - Supply (Vcc/Vdd)	3 V ~ 5.5 V
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	T89C5115 RATIM T89C5115RATIM
