MFG:Infineon Technologies Category:Discrete Semiconductor Products Package Cooled:INF/SIE D/C:06+
SPB100N03S2L-03, SPB100N03S3-03, SPB100N04S2-04 Datasheet download
Category: Discrete Semiconductor Products
MFG: Infineon Technologies
Package Cooled: INF/SIE
D/C: 06+
Description: MOSFET N-CH 40V 100A D2PAK
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: SPB100N03S2L-03
File Size: 427409 KB
Manufacturer: INFINEON [Infineon Technologies AG]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: SPB02N60
File Size: 121401 KB
Manufacturer: Siemens Semiconductor Group
Download : Click here to Download
PDF/DataSheet Download
Datasheet: SPB100N04S2-04
File Size: 319166 KB
Manufacturer: INFINEON [Infineon Technologies AG]
Download : Click here to Download

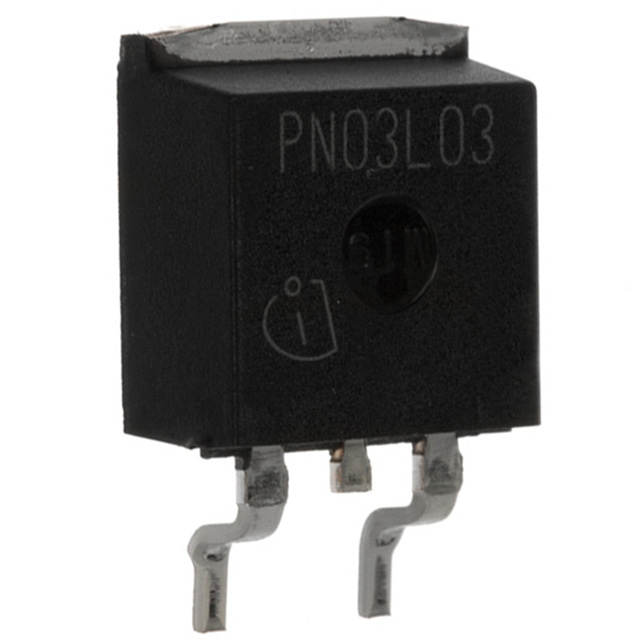

| Technical/Catalog Information | SPB100N03S2L-03 |
| Vendor | Infineon Technologies (VA) |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | N-Channel |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25° C | 100A |
| Rds On (Max) @ Id, Vgs | 2.7 mOhm @ 80A, 10V |
| Input Capacitance (Ciss) @ Vds | 8180pF @ 25V |
| Power - Max | 300W |
| Packaging | Cut Tape (CT) |
| Gate Charge (Qg) @ Vgs | 220nC @ 10V |
| Package / Case | D²Pak, SMD-220, TO-263 (2 leads + tab) |
| FET Feature | Logic Level Gate |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | SPB100N03S2L 03 SPB100N03S2L03 SPB100N03S2L INCT ND SPB100N03S2LINCTND SPB100N03S2L-INCT |
| Parameter | Symbol | Value | Unit |
| Continuous drain current1) TC = 25 °C |
ID | 100 100 |
A |
| Pulsed drain current TC = 25 °C |
ID puls | 400 | |
| Avalanche energy, single pulse ID =80A, VDD = 25 V, RGS = 25 |
EAS | 810 | mJ |
| Repetitive avalanche energy, limited by Tjmax 2) | EAR | 30 | |
| Reverse diode dv/dt IS =100 A, VDS = 24 , di/dt = 200 A/s, Tjmax = 175 °C |
dv/dt | 6 | kV/s |
| Gate source voltage | VGS | ±20 | V |
| Power dissipation TC = 25 °C |
Ptot | 300 | W |
| Operating and storage temperature | Tj , Tstg | -55... +175 | °C |
| IEC climatic category; DIN IEC 68-1 | 55/175/56 |
1 Current limited by bondwire ; with an RthJC = 0.5K/W the chip is able to carry ID= 245A at 25°C, for detailed information see app.-note ANPS071E available at www.infineon.com/optimos
2 Defined by design. Not subject to production test
· N-Channel
· Enhancement mode
· Logic Level
· Excellent Gate Charge x RDS(on) product (FOM)
· Superior thermal resistance
· 175°C operating temperature
· Avalanche rated
· dv/dt rated
| Technical/Catalog Information | SPB100N04S2-04 |
| Vendor | Infineon Technologies |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | N-Channel |
| Drain to Source Voltage (Vdss) | 40V |
| Current - Continuous Drain (Id) @ 25° C | 100A |
| Rds On (Max) @ Id, Vgs | 3.3 mOhm @ 80A, 10V |
| Input Capacitance (Ciss) @ Vds | 7220pF @ 25V |
| Power - Max | 300W |
| Packaging | Tape & Reel (TR) |
| Gate Charge (Qg) @ Vgs | 172nC @ 10V |
| Package / Case | D²Pak, SMD-220, TO-263 (2 leads + tab) |
| FET Feature | Standard |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | SPB100N04S2 04 SPB100N04S204 |
| Parameter | Symbol | Value | Unit |
| Continuous drain current1) TC = 25 °C |
ID | 100 100 |
A |
| Pulsed drain current TC = 25 °C |
ID puls | 400 | |
| Avalanche energy, single pulse ID =80A, VDD = 25 V, RGS = 25 |
EAS | 810 | mJ |
| Reverse diode dv/dt IS =100 A, VDS =32 , di/dt = 200 A/s, Tjmax = 175 °C |
dv/dt | 6 | kV/s |
| Gate source voltage | VGS | ±20 | V |
| Power dissipation TC = 25 °C |
Ptot | 300 | W |
| Operating and storage temperature | Tj , Tstg | -55... +175 | °C |
| IEC climatic category; DIN IEC 68-1 | 55/175/56 |
1 Current limited by bondwire ; with an RthJC = 0.5K/W the chip is able to carry ID= 210A at 25°C, for detailed information see app.-note ANPS071E available at www.infineon.com/optimos
· N-Channel
· Enhancement mode
· 175°C operating temperature
· Avalanche rated
· dv/dt rated
