MFG:Infineon Technologies Category:Discrete Semiconductor Products Package Cooled:INF/SIE D/C:2008+
SPB04N50C3, SPB04N60C2, SPB04N60C3 Datasheet download
Category: Discrete Semiconductor Products
MFG: Infineon Technologies
Package Cooled: INF/SIE
D/C: 2008+
Description: MOSFET N-CH 650V 4.5A D2PAK
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: SPB04N50C3
File Size: 299719 KB
Manufacturer: INFINEON [Infineon Technologies AG]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: SPB04N60C2
File Size: 168222 KB
Manufacturer: INFINEON [Infineon Technologies AG]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: SPB04N60C3
File Size: 311904 KB
Manufacturer: INFINEON [Infineon Technologies AG]
Download : Click here to Download
| Technical/Catalog Information | SPB04N50C3 |
| Vendor | Infineon Technologies (VA) |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | N-Channel |
| Drain to Source Voltage (Vdss) | 560V |
| Current - Continuous Drain (Id) @ 25° C | 4.5A |
| Rds On (Max) @ Id, Vgs | 950 mOhm @ 2.8A, 10V |
| Input Capacitance (Ciss) @ Vds | 470pF @ 25V |
| Power - Max | 50W |
| Packaging | Cut Tape (CT) |
| Gate Charge (Qg) @ Vgs | 22nC @ 10V |

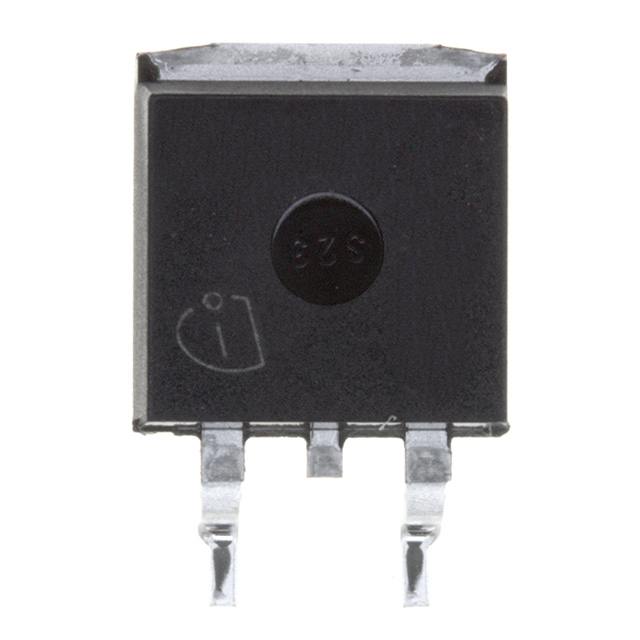

| Package / Case | D²Pak, SMD-220, TO-263 (2 leads + tab) |
| FET Feature | Standard |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | SPB04N50C3 SPB04N50C3 SPB04N50C3INCT ND SPB04N50C3INCTND SPB04N50C3INCT |
| Parameter | Symbol | Value | Unit | |
| SPP_B | SPA | |||
| Continuous drain current TC = 25 °C TC = 100 °C |
ID | 4.5 2.8 |
4.51) 2.81) |
A |
| Pulsed drain current, tp limited by Tjmax | ID puls | 13.5 | 13.5 | A |
| Avalanche energy, single pulse ID=3.4A, VDD=50V |
EAS | 130 | 130 | mJ |
| Avalanche energy, repetitive tAR limited by Tjmax2) ID=4.5A, VDD=50V |
EAR | 0.4 | 0.4 | |
| Avalanche current, repetitive tAR limited by Tjmax | IAR | 4.5 | 4.5 | A |
| Gate source voltage | VGS | ±20 | ±20 | V |
| Gate source voltage AC (f >1Hz) | VGS | ±30 | ±30 | |
| Power dissipation, TC = 25°C | Ptot | 50 | 31 | W |
| Operating and storage temperature | Tj , Tstg | -55...+150 | °C | |
| Drain Source voltage slope VDS = 400 V, ID = 4.5 A, Tj = 125 °C |
dv/dt | 50 | V/ns | |
| Parameter | Symbol | Value | Unit | |
| SPP_B | SPA | |||
| Continuous drain current TC = 25 °C TC = 100 °C |
ID | 4.5 2.8 |
4.51) 2.81) |
A |
| Pulsed drain current, tp limited by Tjmax | ID puls | 9 | 9 | A |
| Avalanche energy, single pulse ID=3.6A, VDD=50V |
EAS | 130 | 130 | mJ |
| Avalanche energy, repetitive tAR limited by Tjmax2) ID=4.5A, VDD=50V |
EAR | 0.4 | 0.4 | |
| Avalanche current, repetitive tAR limited by Tjmax | IAR | 4.5 | 4.5 | A |
| Reverse diode dv/dt IS = 4.5 A, VDS < VDD, di/dt=100A/s, Tjmax=150°C |
dv/dt | 6 | 6 | V/ns |
| Gate source voltage | VGS | ±20 | ±20 | V |
| Gate source voltage AC (f >1Hz) | VGS | ±30 | ±30 | |
| Power dissipation, TC = 25°C | Ptot | 50 | 31 | W |
| Operating and storage temperature | Tj , Tstg | -55...+150 | °C | |
| Technical/Catalog Information | SPB04N60C3 |
| Vendor | Infineon Technologies |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | N-Channel |
| Drain to Source Voltage (Vdss) | 650V |
| Current - Continuous Drain (Id) @ 25° C | 4.5A |
| Rds On (Max) @ Id, Vgs | 950 mOhm @ 2.8A, 10V |
| Input Capacitance (Ciss) @ Vds | 490pF @ 25V |
| Power - Max | 50W |
| Packaging | Tape & Reel (TR) |
| Gate Charge (Qg) @ Vgs | 25nC @ 10V |
| Package / Case | D²Pak, SMD-220, TO-263 (2 leads + tab) |
| FET Feature | Standard |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | SPB04N60C3 SPB04N60C3 SPB04N60C3INTR ND SPB04N60C3INTRND SPB04N60C3INTR |
| Parameter | Symbol | Value | Unit | |
| SPP_B | SPA | |||
| Continuous drain current TC = 25 °C TC = 100 °C |
ID | 4.5 2.8 |
4.51) 2.81) |
A |
| Pulsed drain current, tp limited by Tjmax | ID puls | 13.5 | 13.5 | A |
| Avalanche energy, single pulse ID=3.4A, VDD=50V |
EAS | 130 | 130 | mJ |
| Avalanche energy, repetitive tAR limited by Tjmax2) ID=4.5A, VDD=50V |
EAR | 0.4 | 0.4 | |
| Avalanche current, repetitive tAR limited by Tjmax | IAR | 4.5 | 4.5 | A |
| Gate source voltage static | VGS | ±20 | ±20 | V |
| Gate source voltage AC (f >1Hz) | VGS | ±30 | ±30 | |
| Power dissipation, TC = 25°C | Ptot | 50 | 31 | W |
| Operating and storage temperature | Tj , Tstg | -55...+150 | °C | |
| Drain Source voltage slope VDS = 480 V, ID = 4.5 A, Tj = 125 °C |
dv/dt | 50 | V/ns | |
