SPB07N60C3PULLS, SPB07N60S5, SPB07N65C3 Datasheet download
Category: Discrete Semiconductor Products
MFG: Infineon Technologies (VA)
Package Cooled: inf
D/C: dc0506
Description: MOSFET N-CH 600V 7.3A TO-263
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: SPB02N60
File Size: 121401 KB
Manufacturer: Siemens Semiconductor Group
Download : Click here to Download
PDF/DataSheet Download
Datasheet: SPB07N60S5
File Size: 340357 KB
Manufacturer: INFINEON [Infineon Technologies AG]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: SPB02N60
File Size: 121401 KB
Manufacturer: Siemens Semiconductor Group
Download : Click here to Download

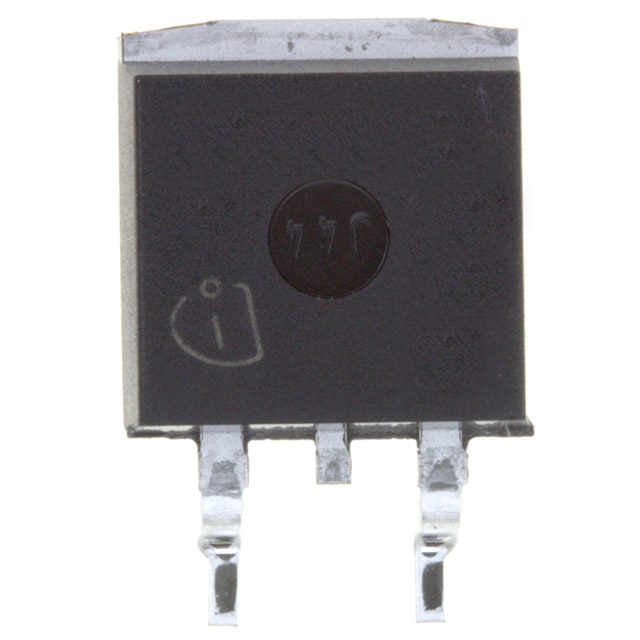

| Technical/Catalog Information | SPB07N60S5 |
| Vendor | Infineon Technologies (VA) |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | N-Channel |
| Drain to Source Voltage (Vdss) | 600V |
| Current - Continuous Drain (Id) @ 25° C | 7.3A |
| Rds On (Max) @ Id, Vgs | 600 mOhm @ 4.6A, 10V |
| Input Capacitance (Ciss) @ Vds | 970pF @ 25V |
| Power - Max | 83W |
| Packaging | Digi-Reel? |
| Gate Charge (Qg) @ Vgs | 35nC @ 10V |
| Package / Case | D²Pak, SMD-220, TO-263 (2 leads + tab) |
| FET Feature | Standard |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | SPB07N60S5 SPB07N60S5 SPB07N60S5INDKR ND SPB07N60S5INDKRND SPB07N60S5INDKR |
| Parameter | Symbol | Value | Unit |
| Continuous drain current TC = 25 °C TC = 100 °C |
ID | 7.3 4.6 |
A |
| Pulsed drain current, tp limited by Tjmax | ID puls | 14.6 | |
| Avalanche energy, single pulse ID=-A, VDD=50V |
EAS | 230 | mJ |
| Avalanche energy, repetitive tAR limited by Tjmax1) ID=7.3A, VDD=50V |
EAR | 0.5 | |
| Avalanche current, repetitive tAR limited by Tjmax | IAR | 7.3 | A |
| Gate source voltage | VGS | ±20 | V |
| Gate source voltage AC (f >1Hz) | VGS | ±30 | |
| Power dissipation, TC = 25°C | Ptot | 83 | W |
| Operating and storage temperature | Tj , Tstg | -55...+150 | °C |
| Drain Source voltage slope VDS = 480 V, ID = 7.3 A, Tj = 125 °C |
dv/dt | 20 | V/ns |
1 Repetitve avalanche causes additional power losses that can be calculated as PAV=EAR*f.
• New revolutionary high voltage technology
• Worldwide best RDS(on) in TO 220
• Ultra low gate charge
• Periodic avalanche rated
• Extreme dv/dt rated
• Ultra low effective capacitances
• Improved transconductance
