These P-Channel power MOSFETs are manufactured using the MegaFET process. This process, which uses feature sizes approaching those of LSI integrated circuits gives optimum utilization of silicon, resulting in outstanding performance. They were designed for use in applications such as switching regulators, switching converters, motor drivers and relay drivers. These transistors can be operated directly from integrated circuits.
Formerly developmental type TA49045.
RFG60P03 Maximum Ratings
UNITS
Drain to Source Voltage (Note 1)
VDSS
-30
V
Drain to Gate Voltage (RGS = 20kW)(Note 1)
VDGR
-30
V
Gate to Source Voltage
VGS
±20
V
Continuous Drain Current (Figure 2)
ID
60
A
Pulsed Drain Current (Note 3)
IDM
Refer to Peak Current Curve
Single Pulse Avalanche Rating
EAS
Figure 6
Maximum Power Dissipation (Figure 1)
PD
176
W
Derate Above 25
1.17
W/
Operating and Storage Temperature
TJ, TSTG
-55 to 175
Maximum Temperature for Soldering Leads at 0.063in (1.6mm) from Case for 10s. Package Body for 10s, See Techbrief 334
TL Tpkg
300 260
CAUTION: Stresses above those listed in "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress only rating and operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied.
RFG60P03 Features
• 60A, 30V • r DS(ON) = 0.027W • Temperature Compensating PSPICE® Model • Peak Current vs Pulse Width Curve • UIS Rating Curve • 175oC Operating Temperature • Related Literature - TB334 "Guidelines for Soldering Surface Mount Components to PC Boards"
RFG60P05E Parameters
Technical/Catalog Information
RFG60P05E
Vendor
Fairchild Semiconductor
Category
Discrete Semiconductor Products
Mounting Type
Through Hole
FET Polarity
P-Channel
Drain to Source Voltage (Vdss)
50V
Current - Continuous Drain (Id) @ 25° C
60A
Rds On (Max) @ Id, Vgs
30 mOhm @ 60A, 10V
Input Capacitance (Ciss) @ Vds
7200pF @ 25V
Power - Max
215W
Packaging
Tube
Gate Charge (Qg) @ Vgs
450nC @ 20V

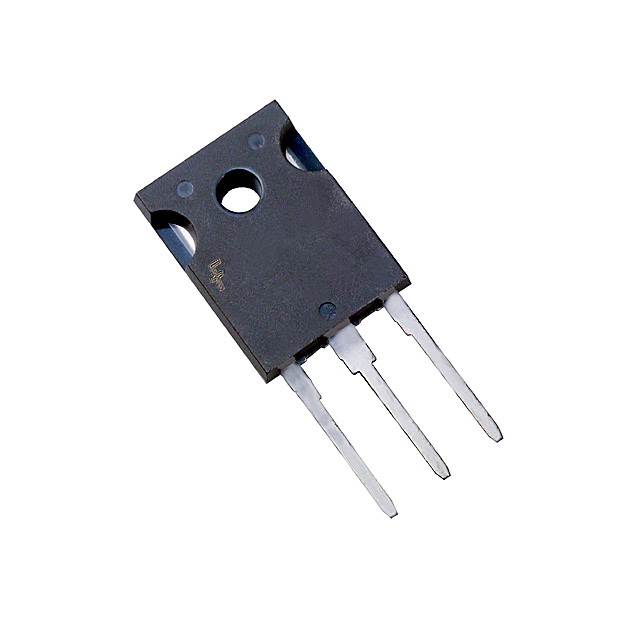

Package / Case
TO-247
FET Feature
Standard
Lead Free Status
Contains Lead
RoHS Status
RoHS Non-Compliant
Other Names
RFG60P05E RFG60P05E
RFG60P05E General Description
This is a P-Channel power MOSFET manufactured using the MegaFET process. This process, which uses feature sizes approaching those of LSI circuits, gives optimum utilization of silicon, resulting in outstanding performance. It was designed for use in applications such as switching regulators, switching converters, motor drivers, and relay drivers. This type can be operated directly from integrated circuits.
Formerly developmental type TA09835.
RFG60P05E Maximum Ratings
RFG60P05E
UNITS
Drain to Source Voltage (Note 1) VDSS
-50
V
Drain to Gate Voltage (RGS = 1MW) (Note 1)VDGR
-50
V
Continuous Drain Current ID
60
A
Pulsed Drain Current (Note 3) IDM
200
A
Gate to Source Voltage VGS
±20
V
Power Dissipation PD
215
W
Derate Above 25oC
1.43
A
Pulsed Avalanche Rating UIS
Refer to UIS SOA
Operating and Storage Temperature .TJ, TSTG
-55 to 75
o C
Maximum Temperature for Soldering
Leads at 0.063in (1.6mm) from Case for 10s. TL
300
o C
Package Body for 10s, See Techbrief 334 Tpkg
260
o C
RFG60P05E Features
• 60A, 50V • rDS(ON) = 0.030W • Temperature Compensating PSPICE® Model • 2kV ESD Rated • Peak Current vs Pulse Width Curve • UIS Rating Curve • 175oC Operating Temperature • Related Literature - TB334 "Guidelines for Soldering Surface Mount Components to PC Boards"
