RFD14N05SM, RFD14N05SM96, RFD14N05SM9A Datasheet download
Category: Discrete Semiconductor Products
MFG: Fairchild Semiconductor (VA)
Package Cooled: 06+
D/C: 07+

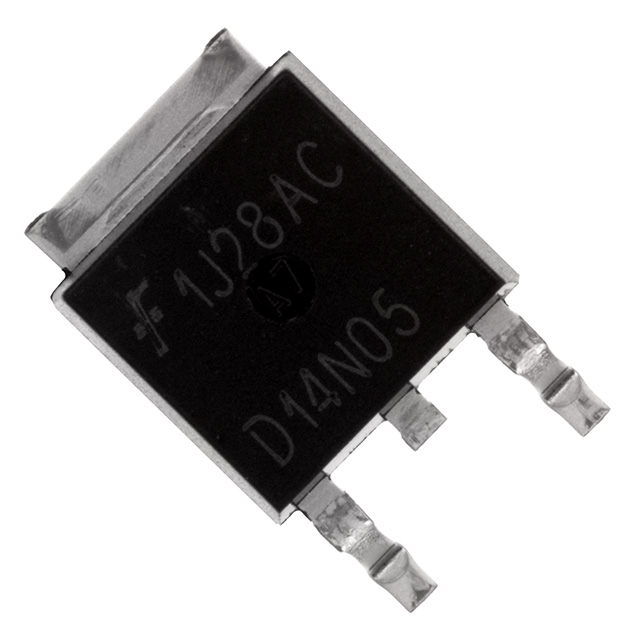

Description: MOSFET N-CHAN 50V 14A DPAK
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: RFD14N05SM
File Size: 161706 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: RFD10P03
File Size: 278675 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: RFD14N05SM9A
File Size: 161706 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
| Technical/Catalog Information | RFD14N05SM |
| Vendor | Fairchild Semiconductor |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | N-Channel |
| Drain to Source Voltage (Vdss) | 50V |
| Current - Continuous Drain (Id) @ 25° C | 14A |
| Rds On (Max) @ Id, Vgs | 100 mOhm @ 14A, 10V |
| Input Capacitance (Ciss) @ Vds | 570pF @ 25V |
| Power - Max | 48W |
| Packaging | Tube |
| Gate Charge (Qg) @ Vgs | 40nC @ 20V |
| Package / Case | DPak, SC-63, TO-252 (2 leads+tab) |
| FET Feature | Standard |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | RFD14N05SM RFD14N05SM |
| RFD14N05, RFD14N05SM, RFP14N05 |
UNITS | |
| Drain to Source Voltage (Note 1) VDSS | 50 | V |
| Drain to Gate Voltage (RGS = 1MW) (Note 1)VDGR | 50 | V |
| Continuous Drain Current ID | 14 | A |
| Pulsed Drain Current (Note 3) IDM | 120 | A |
| Gate to Source Voltage VGS | ±20 | V |
| EAS Power Dissipation PD 25oC |
48 | W |
| Derate above 25o C | 0.32 | A |
| Pulsed Avalanche Rating UIS | Refer to UIS SOA | |
| Operating and Storage Temperature .TJ , TSTG | -55 to 75 | o C |
| Maximum Temperature for Soldering | ||
| Leads at 0.063in (1.6mm) from Case for 10s. TL | 300 | o C |
| Package Body for 10s, See Techbrief 334 . Tpkg | 260 | o C |
